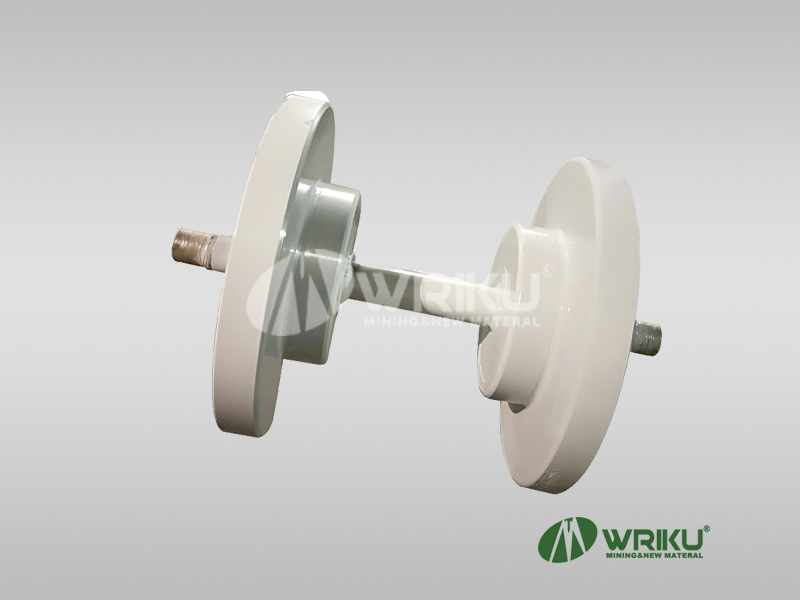

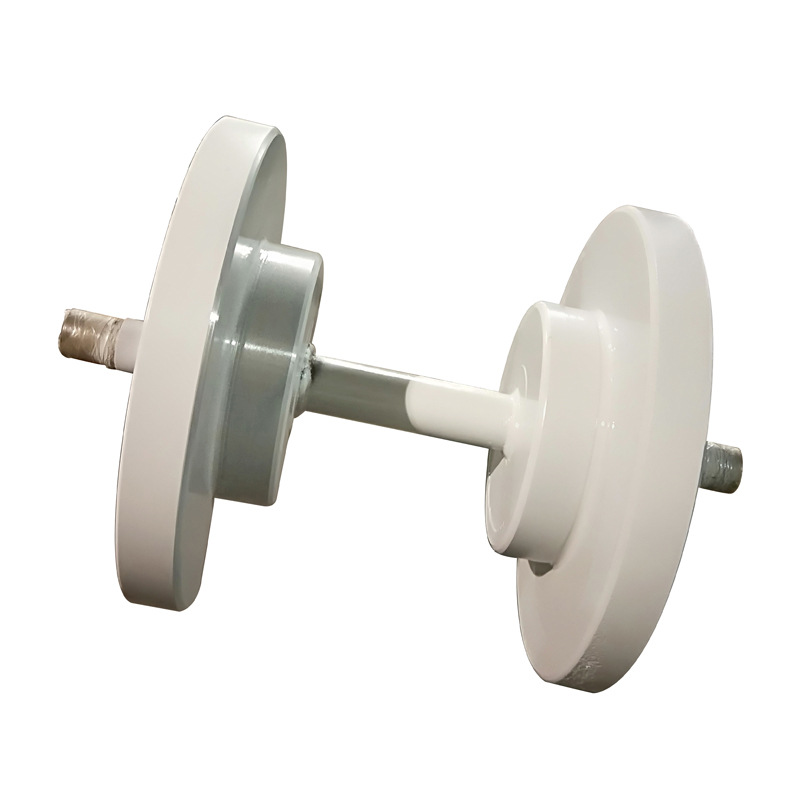

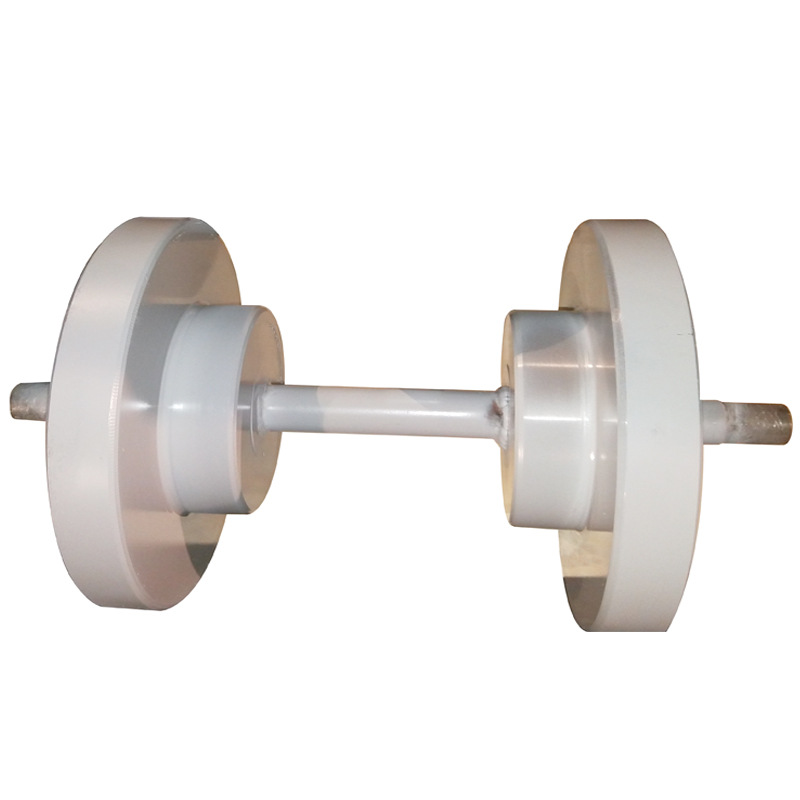

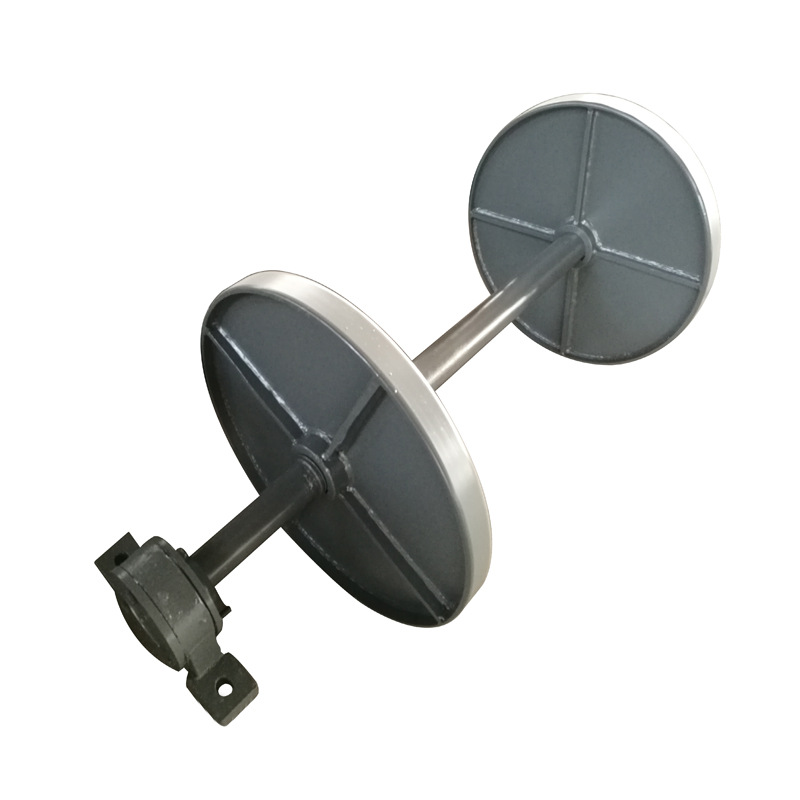

Belt Press Pulley
Press pulley is widely used in belt conveyor and large inclination angle belt conveyor, the role is to press to press on the working surface of the skirt belt (conveyor belt) to make the skirt belt (conveyor belt) change its running direction.
1、Installation Area:: Mainly the return branch of the convex arc section of the frame and the load branch of the concave arc section. The main branches are the return branch of the convex section of the frame and the load branch of the concave section.
2、Composition: The pressure belt pulley is composed of rim, shaft and bearing seat. If it is a large inclination angle,If the belt conveyor is used at a large inclination, the rim can be compounded and the skirt can be attached to the inside.
3、Installation effect: When the radius of the concave arc section of the belt is smaller than the calculated radius, the belt will not be driven up too high when starting.
When the radius of the concave arc section of the belt is smaller than the calculated radius, it can avoid the belt from being pushed up too high when the belt is unloaded and sometimes hitting the bridge or others. It can also avoid the belt transmission process. It also prevents the smooth transition of the radius of the concave section during the belt transmission process. Although the pressure pulley is not a major part of the conveyor equipment, it can be used properly to help make the conveyor better.
2017-03-28
