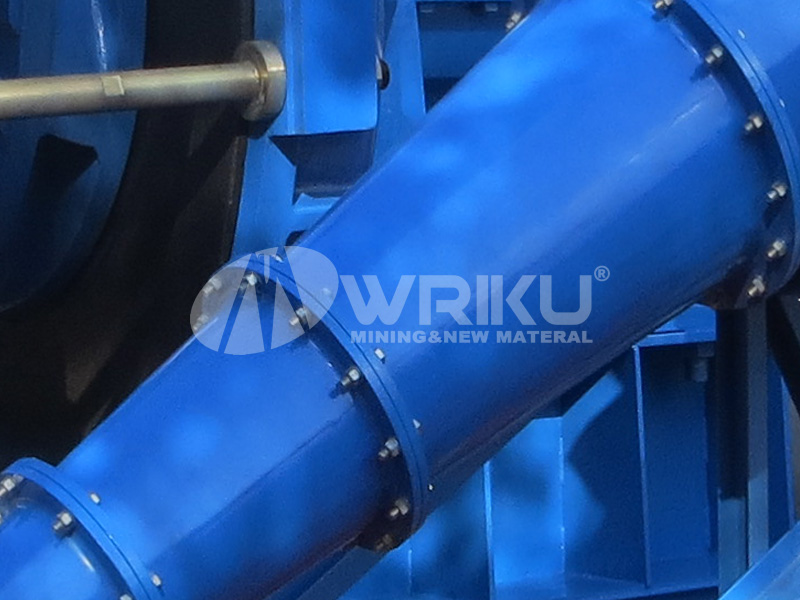

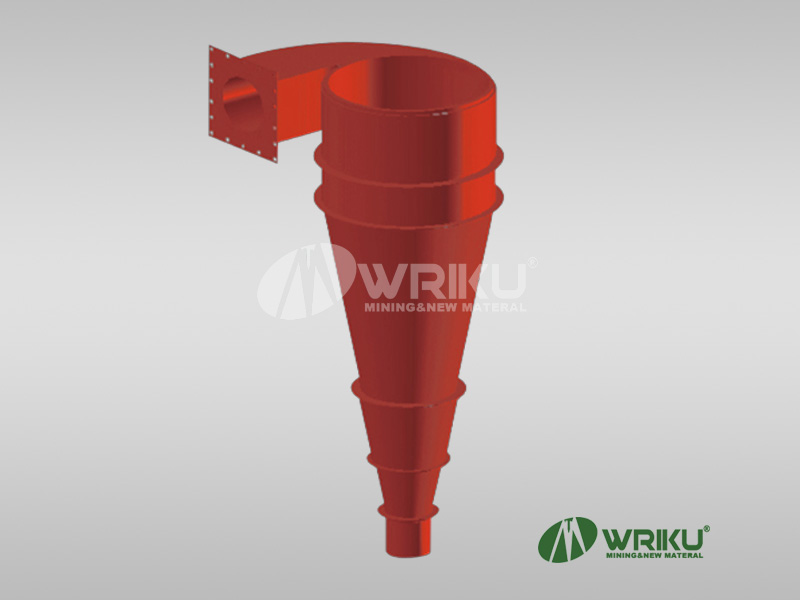

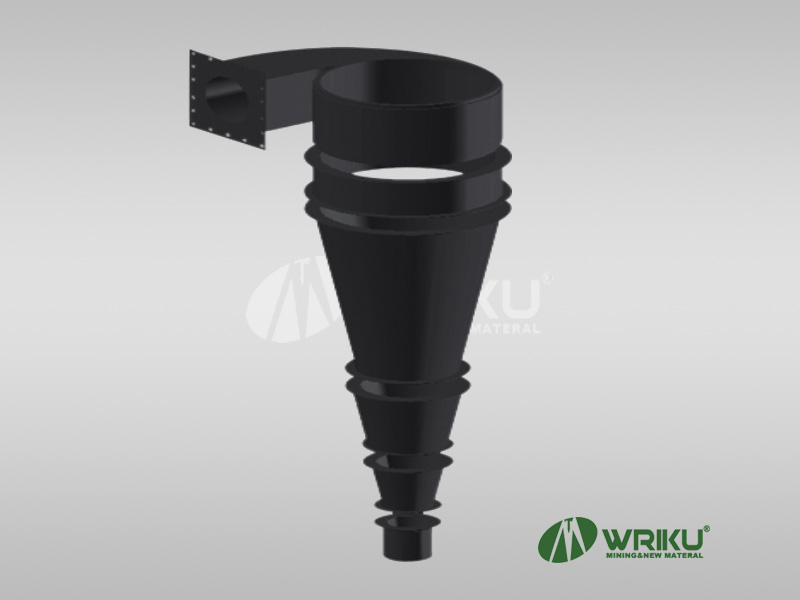

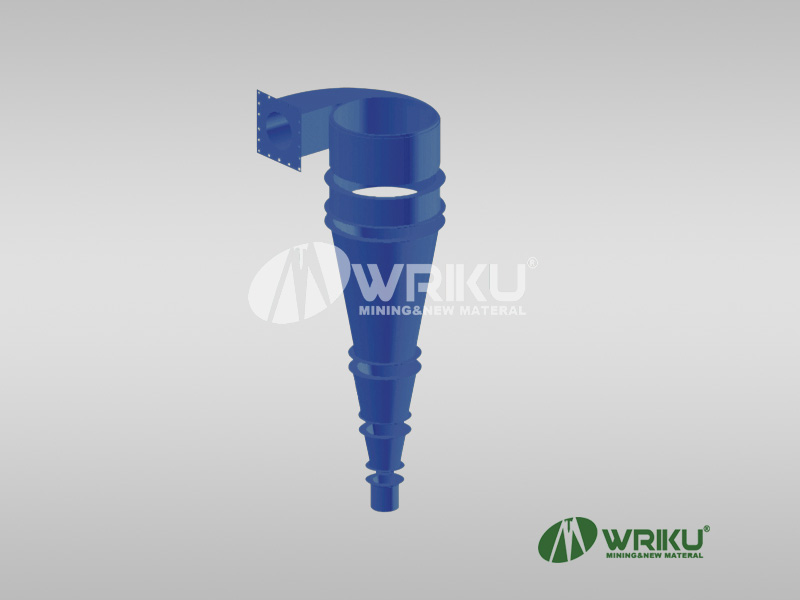

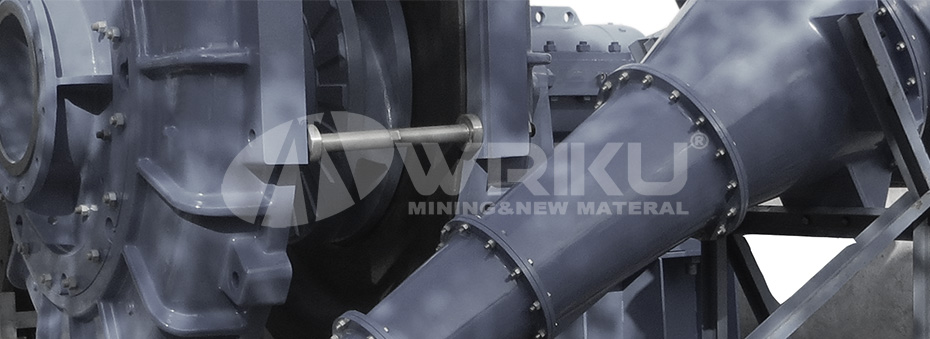

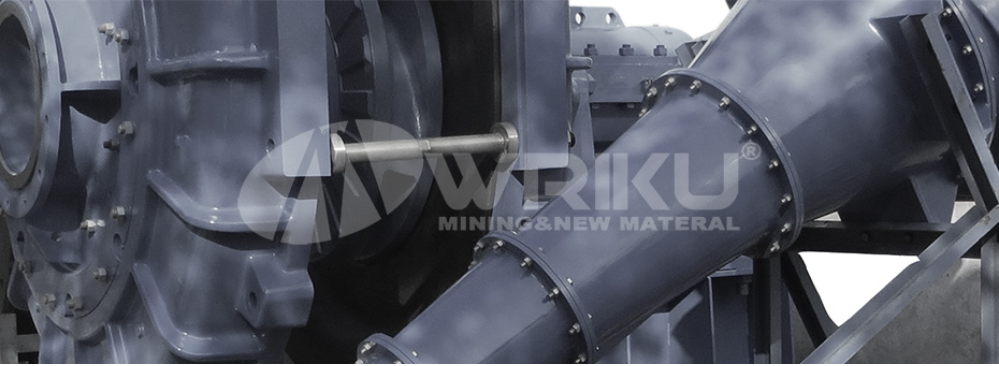

WRIKU's Cyclone classification and capacity requirements should be mainly considered when selecting its specifications and parameters, . WRIKUS’s Cyclone has considered the proper relationship between the diameter and the feed pipe, overflow pipe and sand discharge nozzle. But in addition, there are many factors that affect the classification effect and production capacity. For example: particle size distribution, solid concentration, solid specific gravity and material properties and particle size.
<1> Increasing the dilution water can improve the classification performance and obtain a more accurate classification effect.
<2> The cyclones with small feed ports, small overflow pipes and small sand discharge nozzles require high feeding pressure and low production capacity; on the contrary, large feed ports, large overflow pipes and large sand discharge nozzles not only give Material pressure can be reduced, and production capacity can be increased.
<3> The larger the diameter of the overflow pipe, the coarser the separation particle size, and the larger the proportion of solids entering the overflow; conversely, the smaller the diameter of the overflow pipe, the finer the separation particle size and the smaller the proportion of solids entering the overflow.
WRIKU's Cyclone classification and capacity requirements should be mainly considered when selecting its specifications and parameters, . WRIKUS’s Cyclone has considered the proper relationship between the diameter and the feed pipe, overflow pipe and sand discharge nozzle. But in addition, there are many factors that affect the classification effect and production capacity. For example: particle size distribution, solid concentration, solid specific gravity and material properties and particle size.
<1> Increasing the dilution water can improve the classification performance and obtain a more accurate classification effect.
<2> The cyclones with small feed ports, small overflow pipes and small sand discharge nozzles require high feeding pressure and low production capacity; on the contrary, large feed ports, large overflow pipes and large sand discharge nozzles not only give Material pressure can be reduced, and production capacity can be increased.
<3> The larger the diameter of the overflow pipe, the coarser the separation particle size, and the larger the proportion of solids entering the overflow; conversely, the smaller the diameter of the overflow pipe, the finer the separation particle size and the smaller the proportion of solids entering the overflow.
