Three-roller and Four-drum Rod Mill XMB70
You are here: Home » PRODUCTS » Metallurgical Equipment » Crushing&Milling Machine » Three-roller and Four-drum Rod Mill XMB70

loading

Share to:
sharethis sharing button

Three-roller and Four-drum Rod Mill XMB70

XMB70 type three-roll four-cylinder rod mill is a new type of small, lightweight and multi-purpose grinding equipment for laboratory use. It can grind ore in a single cylinder or multiple cylinders at the same time. The steel rod is used as a ball mill, and the frequency conversion technology of the machine ensures a wide range of speed regulation and a stable speed change.
Availability:
Contact Us

d

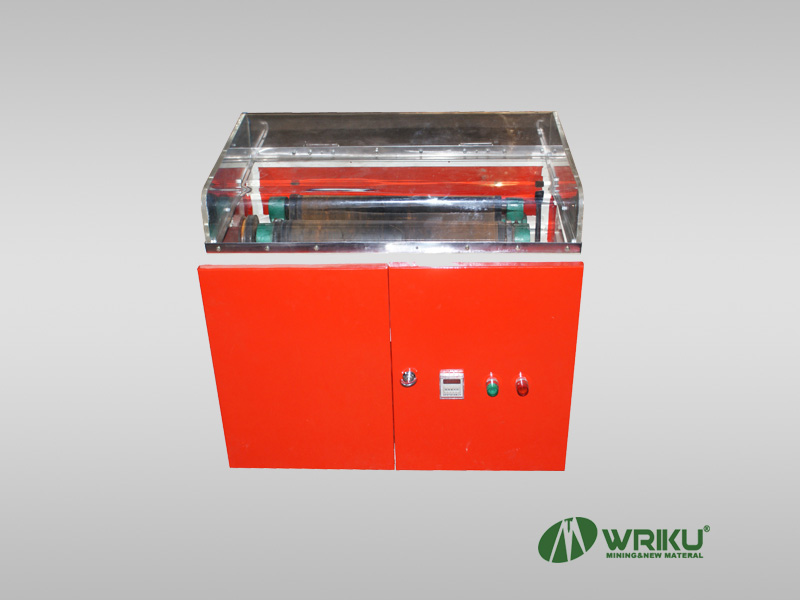

Three-Roll Four-Cylinder Rod Mill


XMB70 type three-roll four-cylinder rod mill is a new type of small, lightweight and multi-purpose grinding equipment for laboratory use. It can grind ore in a single cylinder or multiple cylinders at the same time. The steel rod is used as a ball mill, and the frequency conversion technology of the machine ensures a wide range of speed regulation and a stable speed change. It can be used for grinding fine ores in metallurgy, geology, chemical industry, building materials, coal, colleges and universities, scientific research institutes, mining and mineral processing plants, etc.


Specification

Name

Specification

Unit

Mill barrel

Volume

0.25

0.5

1

2

L


Diameter×Length

Φ65×76

Φ80×100

Φ102×125

Φ132×150

mm

Grinding  amount

<50

50~100

100~200

250~400

g

Feed Size

-0.5

-0.5

-1

-2

mm

Discharging Size

-0.074

-0.074

-0.074

-0.074

mm

Spindle roller Speed

233,258,281,312(Frequency control0-300)

R/min

Power

0.37

Kw

Outline Size

760×510×520

mm

Weight

115

Kg


Name

Specification

Unit

Mill barrel

Volume

0.25

0.5

1

2

L

Diameter×Length

Φ65×76

Φ80×100

Φ102×125

Φ132×150

mm

Grinding  amount

<50

50~100

100~200

250~400

g

Feed Size

-0.5

-0.5

-1

-2

mm

Discharging Size

-0.074

-0.074

-0.074

-0.074

mm

Spindle roller Speed

233,258,281,312(Frequency control0-300)

R/min

Power

0.37

Kw

Outline Size

760×510×520

mm

Weight

115

Kg
