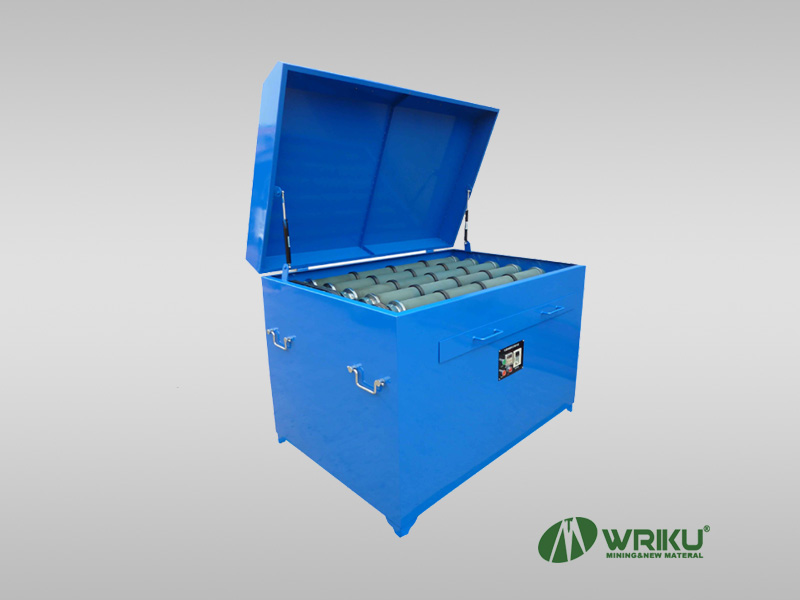

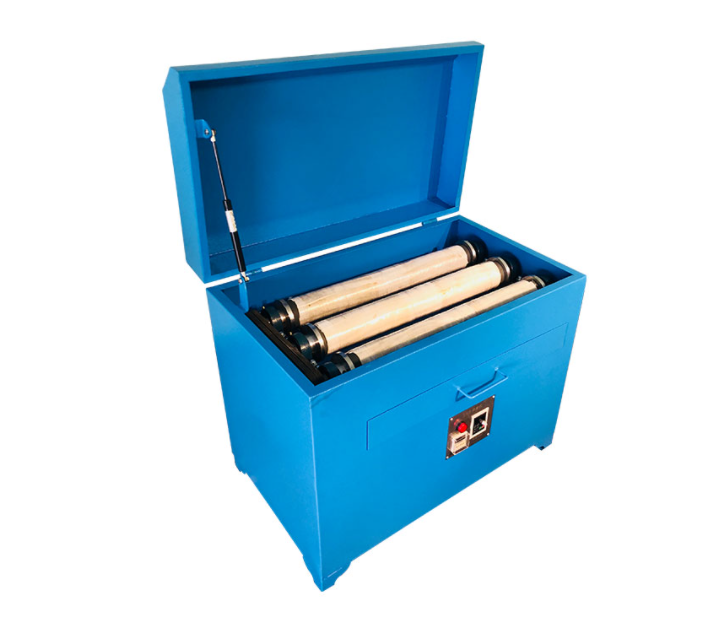

Three Roller 4 Barrel Rod Mill XMB-70
XMB-70 three-roller four-cylinder rod mill is a small, lightweight, and versatile new type of grinding equipment for laboratory use. It has four types of grinding rollers with a volume of 0.25, 0.5, 1.0 and 2.0 liters. Or multi-cylinder grinding at the same time, can be used for both dry and wet use, and can also use steel balls instead of steel rods as ball mills. It has the advantages of compact structure, convenient use, small size and light weight. It is used for the XFD series single-cell flotation machine and XFG type hanging tank flotation machine or the corresponding specifications of the flotation machine and other instruments commonly used in the laboratory. Ideal equipment. It is the starting point of small and medium specifications of the laboratory grinding equipment series.
2017-03-28
Three Roller 4 Barrel Rod Mill XMB-70
XMB-70 three-roller four-cylinder rod mill is a small, lightweight, and versatile new type of grinding equipment for laboratory use. It has four types of grinding rollers with a volume of 0.25, 0.5, 1.0 and 2.0 liters. Or multi-cylinder grinding at the same time, can be used for both dry and wet use, and can also use steel balls instead of steel rods as ball mills. It has the advantages of compact structure, convenient use, small size and light weight. It is used for the XFD series single-cell flotation machine and XFG type hanging tank flotation machine or the corresponding specifications of the flotation machine and other instruments commonly used in the laboratory. Ideal equipment. It is the starting point of small and medium specifications of the laboratory grinding equipment series.
2017-03-28

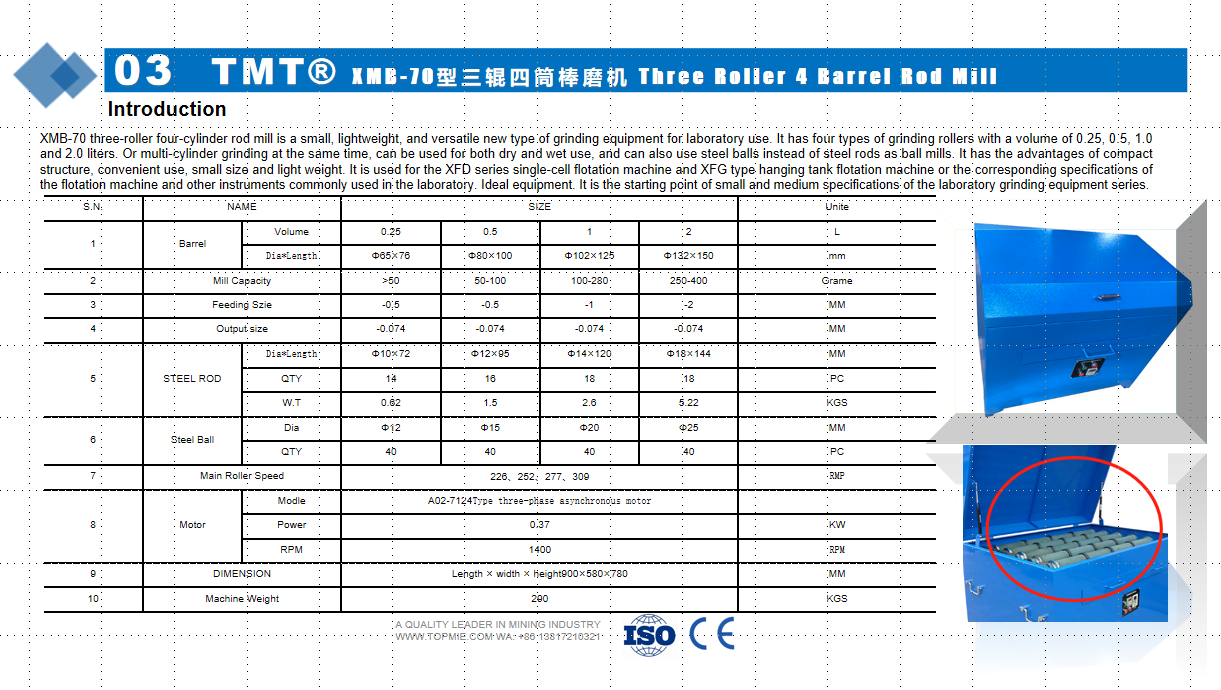

S.N. | NAME | SIZE | Unite | ||||
1 | Barrel | Volume | 0.25 | 0.5 | 1 | 2 | L |
Dia*Length | Φ65×76 | Φ80×100 | Φ102×125 | Φ132×150 | mm | ||
2 | Mill Capacity | >50 | 50-100 | 100-280 | 250-400 | Grame | |
3 | Feeding Szie | -0.5 | -0.5 | -1 | -2 | MM | |
4 | Output size | -0.074 | -0.074 | -0.074 | -0.074 | MM | |
5 | STEEL ROD | Dia*Length | Φ10×72 | Φ12×95 | Φ14×120 | Φ18×144 | MM |
QTY | 14 | 16 | 18 | 18 | PC | ||
W.T | 0.62 | 1.5 | 2.6 | 5.22 | KGS | ||
6 | Steel Ball | Dia | Φ12 | Φ15 | Φ20 | Φ25 | MM |
QTY | 40 | 40 | 40 | 40 | PC | ||
7 | Main Roller Speed | 226、252、277、309 | RMP | ||||
8 | Motor | Modle | A02-7124Type three-phase asynchronous motor | ||||
Power | 0.37 | KW | |||||
RPM | 1400 | RPM | |||||
9 | DIMENSION | Length × width × height900×580×780 | MM | ||||
10 | Machine Weight | 290 | KGS |
