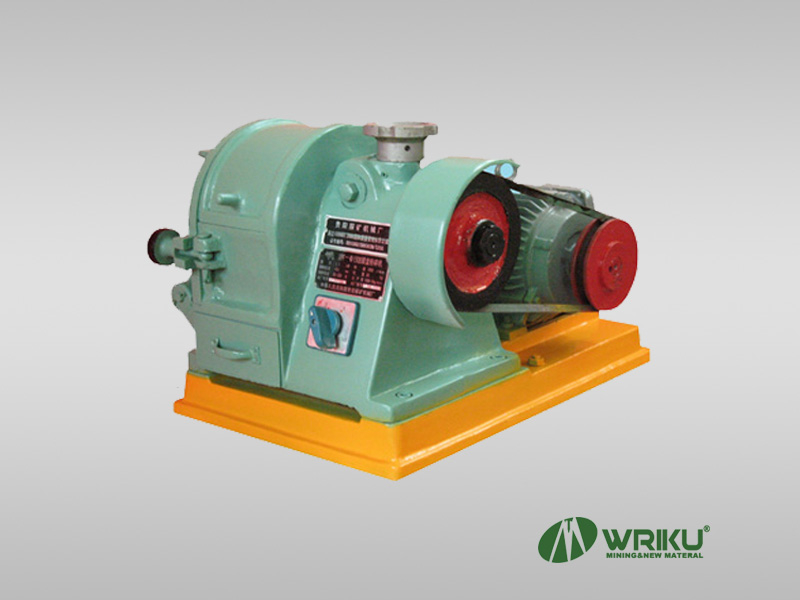

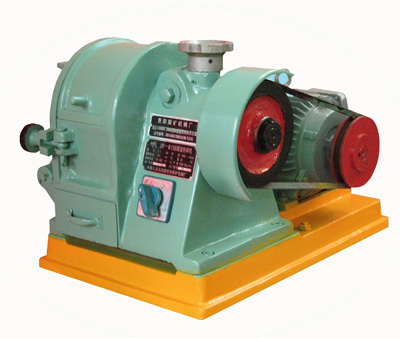

XPF Series Disc Crusher
XPF series disc crusher has the advantages of compact structure, good sealing performance, easy cleaning, high rigidity, small volume, light weight, and equipped with adjusting the value scale mechanism. It can be used in the laboratory or laboratory of geology, metallurgy, energy, commodity inspection, construction materials, chemical industry and other departments to finely crush various medium hardness ores or rocks.
Model Item | XPF-150 | MP-175 | XPF-250 | Unit |
Disc Dia | 150 | 175 | 250 | mm |
Feed Size | ≤6 | ≤6 | ≤8 | mm |
Discharging Size | 80~200 | 80~200 | 80~200 | Mesh |
Throughput | 5~60 | 10~80 | 20~160 | Kg/h |
Spindle roller Speed | 1050 | 900 | 800 | R/min |
Power | 1.1 | 1.5 | 2.2 | Kw |
Outline Size | 390×515×360 | 550×490×365 | 770×510×500 | mm |
Weight | 85 | 130 | 165 | kg |
