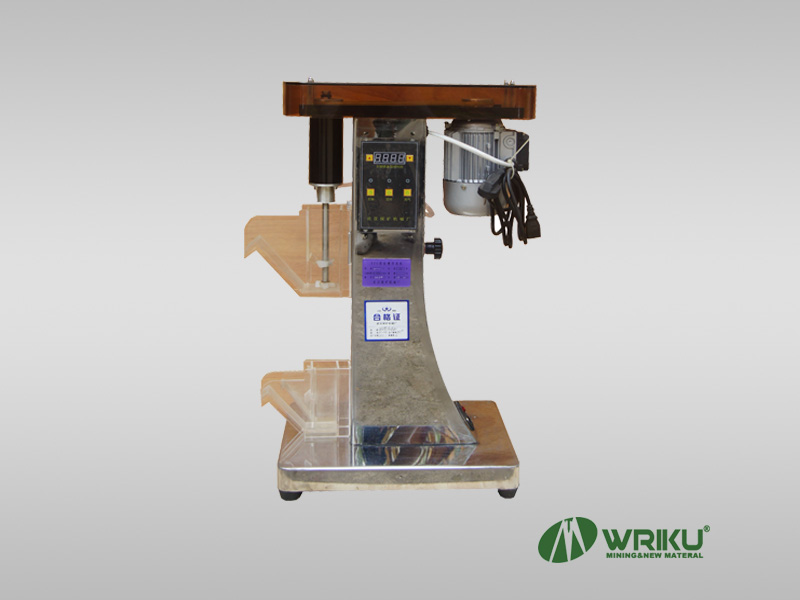

Hanging Trough Flotation Machine XFG Series

The XFG type hanging tank flotation machine for laboratory is a sorting equipment used for stirring, scrubbing, separating and selecting a small amount of mineral samples in the laboratories of mineral processing enterprises and scientific research institutions such as geology, metallurgy, building materials, and chemical industry. XFG is an updated product made by our factory as needed. It adopts all stainless steel frame, frequency conversion technology and digital display, which makes the whole machine beautiful in appearance, accurate in adjustment and convenient in use
Availability:

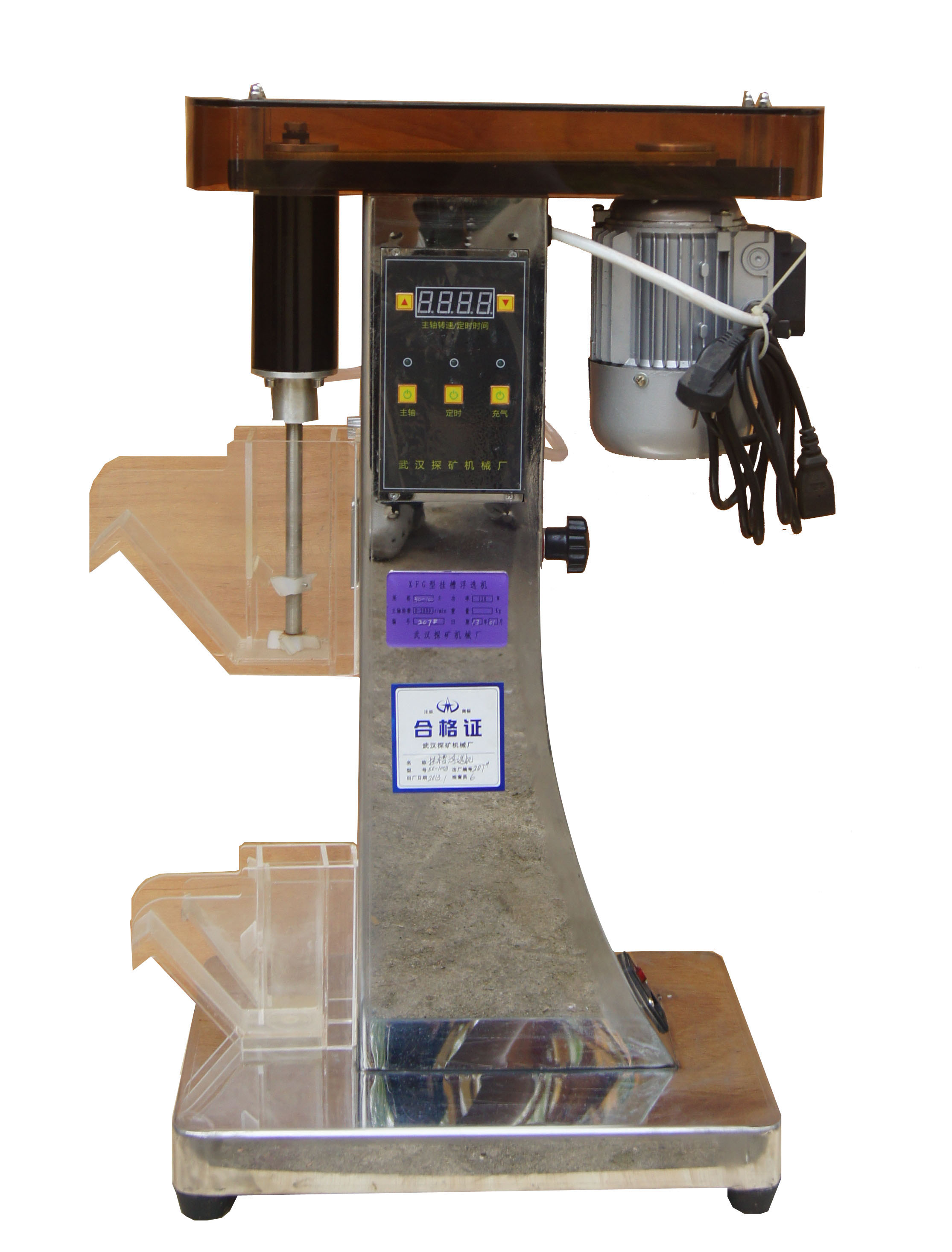

XFG型挂槽浮选机

The XFG type hanging tank flotation machine


The XFG type hanging tank flotation machine for laboratory is a sorting equipment used for stirring, scrubbing, separating and selecting a small amount of mineral samples in the laboratories of mineral processing enterprises and scientific research institutions such as geology, metallurgy, building materials, and chemical industry. XFG is an updated product made by our factory as needed. It adopts all stainless steel frame, frequency conversion technology and digital display, which makes the whole machine beautiful in appearance, accurate in adjustment and convenient in use


Technical Parameters

Unit

Model

XFG-5~35g

XFG-50~100g

XFG-250~500g

XFG-1000g

 Capacity

g

5

15

25

35

50

100

250

500

1000

Volume

ML

20

60

100

140

200

400

1000

2000

4000

Impeller Diameter

Mm

Φ20

Φ26

Φ26

Φ30

Φ34

Φ36

Φ60

Φ64

Φ80

impeller Speed

r/min

1000~1850

1000~1850

1500~2000

900~1500

Feed Size

Mm

0.05~0.2

Spindle Motor


YST5612,120W,2800r/min

Transducer


Single Frequency Converter GS-0.4K

Outline Size

Mm

425×300×715

455×300×725

530×300×765

600×300×830

Weight

Kg

17

17

18

21.5

Flux

L/min

LZB-3;0.03~0.3

LZB-3;0.06~0.6


Technical Parameters

Unit

Model

XFG-5~35g

XFG-50~100g

XFG-250~500g

XFG-1000g

Capacity

g

5

15

25

35

50

100

250

500

1000

Volume

ML

20

60

100

140

200

400

1000

2000

4000

Impeller Diameter

Mm

Φ20

Φ26

Φ26

Φ30

Φ34

Φ36

Φ60

Φ64

Φ80

Impeller Speed

r/min

1000~1850

1000~1850

1500~2000

900~1500

Feed Size

Mm

0.05~0.2

Spindle Motor


YST5612,120W,2800r/min

Transducer


Single Frequency Converter GS-0.4K

Outline Size

Mm

425×300×715

455×300×725

530×300×765

600×300×830

Weight

Kg

17

17

18

21.5

计Flux

L/min

LZB-3;0.03~0.3

LZB-3;0.06~0.6
