Laboratory centrifuge concentrator TX60
You are here: Home » PRODUCTS » Metallurgical Equipment » Gravity Concentrator » Laboratory centrifuge concentrator TX60

loading

Share to:
sharethis sharing button

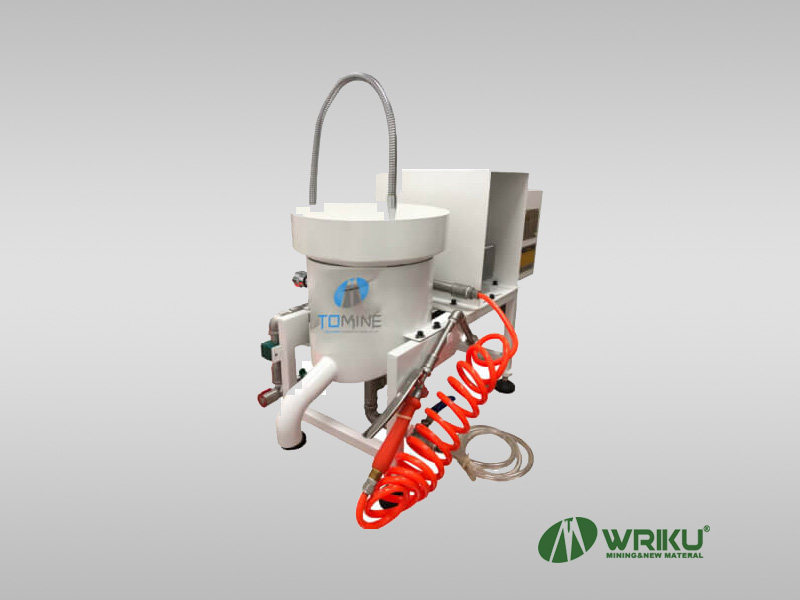

Laboratory centrifuge concentrator TX60

TPX60 Lab cyclone centrifuge concentrator is a test machine specially launched by WRIKU@TOMINE. Its test effect is higher than that of similar products at home and abroad. The high precision, simple operation and good test effect are the biggest features of this model.
Availability:
Contact Us

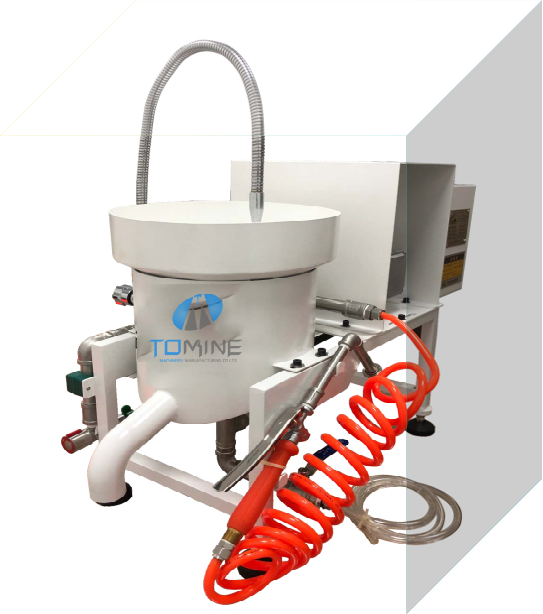

Labratory centrifuge concentrator

Name

TPX   Lab  cyclone centrifuge concentrator  is a test machine specially launched  by TMT. Its test effect is higher than that of similar products at home and abroad. The high precision, simple operation and good test effect are the biggest features of this model. In the production practice of various types of minerals, it is necessary to continuously carry out laboratory tests on the production processes of raw ore, concentrate, medium ore, etc. The samples are transferred to the laboratory for testing, which is time-consuming and laborious, and it is impossible to adjust the beneficiation process in time, resulting in no  necessary loss-----

2017-03-28

Technical Specification

Model

TPX60

Power

220V,50Hz,0.075Kw

Runing Mode

Manuel

Enriching Conical Dia

60MM

centrifugal force

≤300G

Water Pressure

0.1Mpa

Inlet Diameter

≤2mm

Motor:

Three-phase asynchronous motor

Input Particles:

100m³/ h

Backwashing volume

2~10L/min

Slurry Density:

≤50%

Operation Mode

≤2mm

Weight

40kg

Dimension(mm)

750(L)*350(W)*550MM(H)
