XMGQΦ305 Work Index Ball Mill

XMGQΦ305 grinding function index ball (rod) mill is mainly used to measure the grinding function index of various ores, slag and other materials. Dry grinding is carried out at a specific number of revolutions, and the products are screened and weighed, and the grinding work index (kWh/t) is calculated.
Availability:
Contact Us

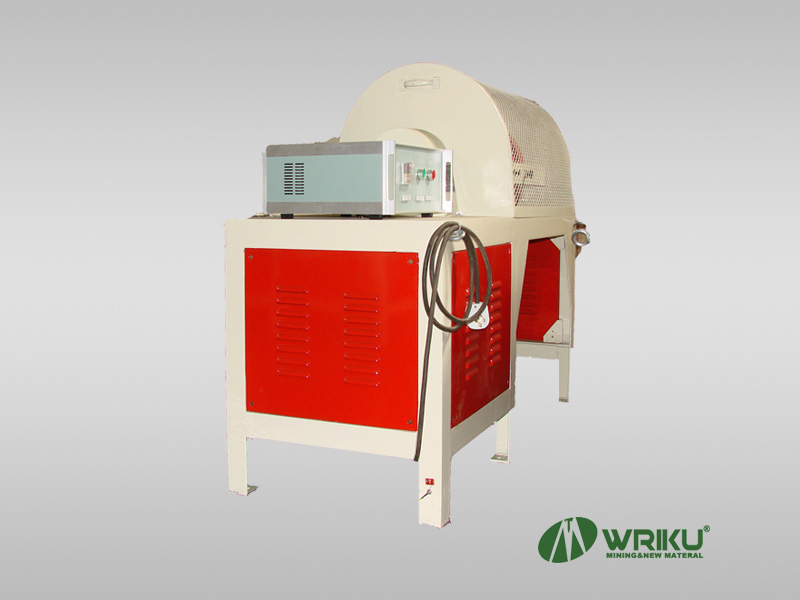

XMGQΦ305 Work Index Ball Mill

XMGQΦ305 grinding function index ball (rod) mill


XMGQΦ305 grinding function index ball (rod) mill is mainly used to measure the grinding function index of various ores, slag and other materials. Dry grinding is carried out at a specific number of revolutions, and the products are screened and weighed, and the grinding work index (kWh/t) is calculated.


Item

Parameters

Unit

XMGQ-Φ305×305

XMGB-Φ305×610

Inside diameter×Inside length

Φ305×305

Φ305×610

mm

Speed

700.5

460.5

R/min

Power

0.75

1.1

kw

Steel ball(bar) Weight

20.568

33.38

kg

Feed Size

<3.2

<12.7

mm

Once Feeding Volume

700

1250

Outline Size

1500×650×1100

930×610×1185

mm

Weight

330

400

kg


Item

Parameters

Unit

XMGQ-Φ305×305

XMGB-Φ305×610

Inside diameter×Inside length

Φ305×305

Φ305×610

mm

Speed

700.5

460.5

R/min

Power

0.75

1.1

kw

Steel ball(bar) Weight

20.568

33.38

kg

Feed Size

<3.2

<12.7

mm

Once Feeding Volume

700

1250

Outline Size

1500×650×1100

930×610×1185

mm

Weight

330

400

kg
