Laboratory Mixing Ball Mill

The stirring ball mill is a laboratory ultra-fine grinding device with reasonable structure, convenient operation, high efficiency and energy saving.
Availability:
Contact Us

实验室搅拌球磨机

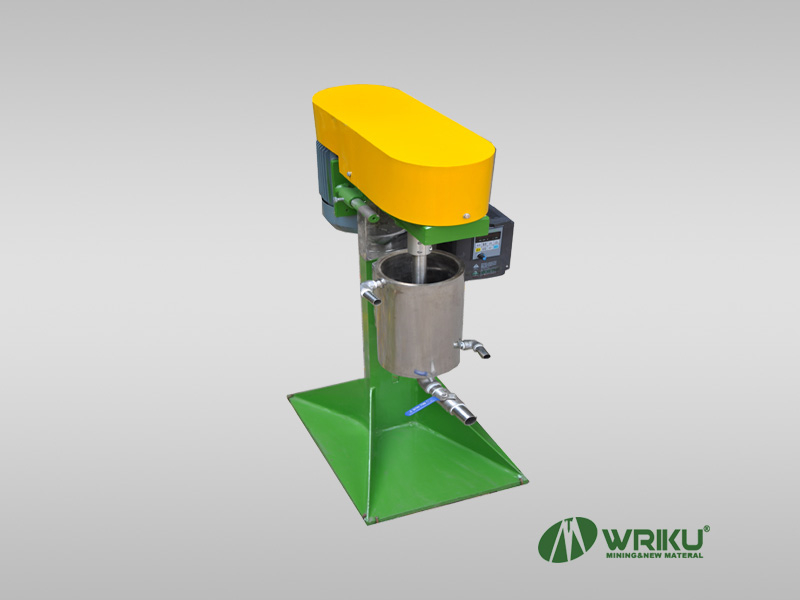

Slurry Mixing Ball Mill

The stirring ball mill is a laboratory ultra-fine grinding device with reasonable structure, convenient operation, high efficiency and energy saving. It is mainly suitable for the experimental processing of ultra-fine powder materials in various industries such as chemical industry, abrasives, ceramics, coatings, powder metallurgy, magnetic materials, etc.


Item

Unit

Value

 Remarks

Agitator Size

mm

Φ150×300

Φ250×320

Agitator Volume

L

5

15

Agitator Speed

R/min

210

42~415

Feed Size

mesh

≤60

≤60

Discharging Size

um

≤1

≤1

Adjust

time

Motor

Model

Y90L-4

YCT160-4B

Power

kw

1.5

3

 ratedspeed

R/min

1400

132~1250

Outline Size

600×350×1000

1040×450×1600

Weight

kg

120

380


Item

Unit

Value

Remarks

 Agitator Size

mm

Φ150×300

Φ250×320


 Agitator Volume

L

5

15


 Agitator Speed

R/min

210

42~415


Feed Size

Mesh

≤60

≤60


Discharging Size

um

≤1

≤1

Adjust

time

Motor

Model


Y90L-4

YCT160-4B


Power

kw

1.5

3


 rated speed

R/min

1400

132~1250


Outline Size


600×350×1000

1040×450×1600


Weight

kg

120

380
