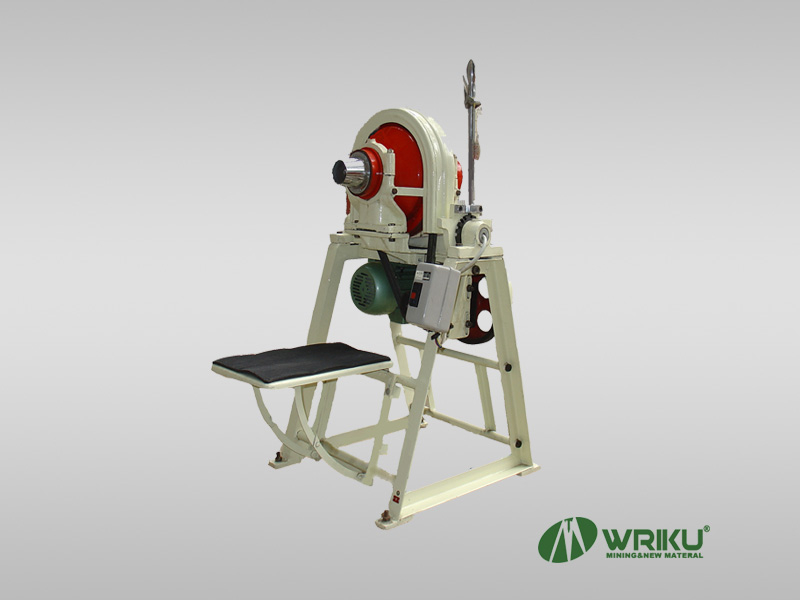

Conical Ball Mill
XMQ series conical ball mill is a kind of laboratory grinding equipment. It can be used for wet grinding of fine ores in laboratory (150x50 conical ball mill can also be used for dry grinding), suitable for artificial heavy sand in metallurgy, building materials, chemical industry, light industry, coal, hydropower, agriculture and geological experiments. Used for grinding fine materials such as ore technology processing
Model Item | XMQ-150×50 | XMQ-240×90 | XMQ-350×160 | Unit |
Volume | 1 | 6.25 | 21.58 | L |
Capacity | 200 | 1000 | 4000 | g |
Feed Size | -3 | -3 | -3 | mm |
Discharging Size | -0.074 | -0.074 | -0.074 | mm |
Drum Speed | 1122 | 962 | 622 | R/min |
Outline Size | 915×530×1160 | 1050×640×1164 | 700×575×1190 | mm |
Weight | 90 | 170 | 300 | kg |
