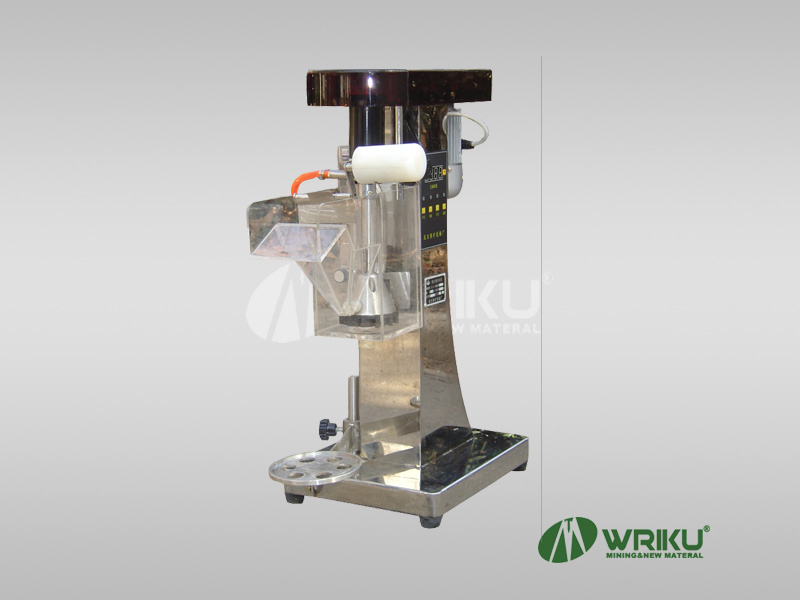

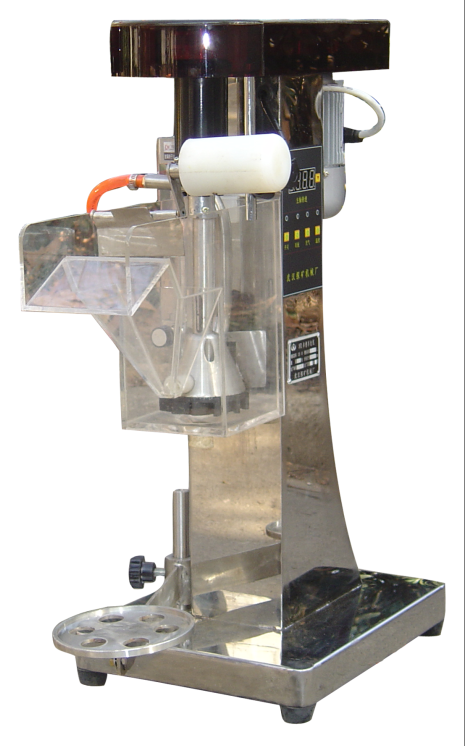

XFD Ⅲ single tank flotation machine
XFD Ⅲ single tank flotation machine is made of stainless steel with double frequency conversion control, mainly used for mixing, scrubbing, separating and selecting small amount of ore samples in laboratories of geology, metallurgy, construction materials and chemical industry
S.N. | Technical Parameters
| Unit | ModelItem | |||||
XFDⅢ0.5L | XFDⅢ0.75L | XFDⅢ1L | XFDⅢ1.5L | XFDⅢ3.0L | ||||
1 | Volume | L | 0.5 | 0.75 | 1 | 1.5 | 3.0 | |
2 | Impeller Diameter | mm | Ø45 | Ø55 | Ø60 | Ø70 | ||
3 | ImpellerSpeed | r/min | CVT | |||||
4 | ScraperSpeed | r/min | 15 30(Optional stepless speed regulation) | |||||
5 | Feed Size | mm | ----0.2 | |||||
6 | Motor | YST5612,120W, 2800r/min | ||||||
7 | Inverter | Single-phase inverter GS-0.4K | ||||||
8 | Scraper motor Scraper Motor | Micro DC Motor，12V,30r/min | ||||||
9 | Outline Size | mm | 620×300×750 | |||||
10 | Weight | Kg | 21.5 | |||||
11 | flowmeter | L/H | LZB-6,40～400 | LZB-6,60～600 | ||||
