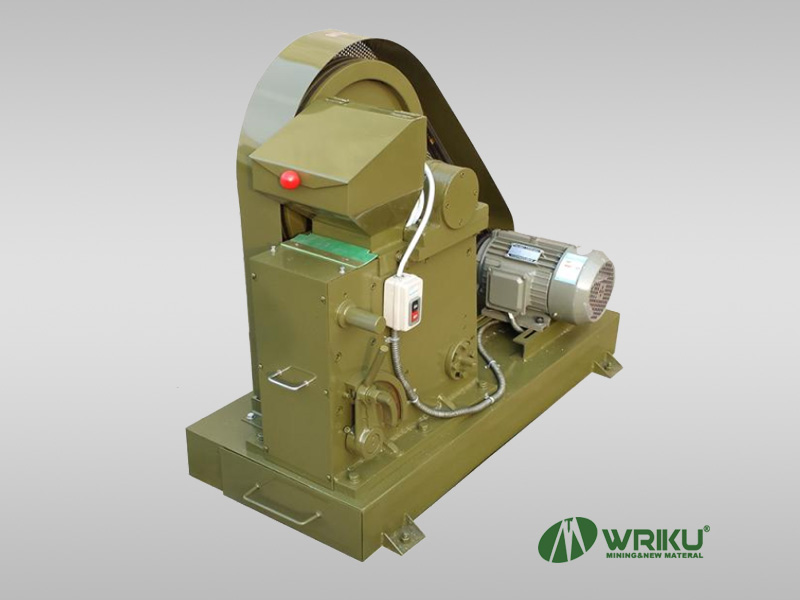

PEF-100 × 125 Laboratory Jaw Crusher
PEF-100 × 125 Jaw Crusher is specially used for coarse crushing, medium crushing of various medium hardness ores in the laboratories of industrial departments such as geology, environmental protection, metallurgy, building materials, chemical industry, coal, power plant, universities and research institutes Use of rock or other materials.
This machine has advanced structure, idealized design, long service life, fine and uniform discharge particle size, etc., and it is easy to disassemble and maintain, and has good dustproof effect. Practice has proved that the machine uses granite for open circuit crushing test many times, and its output particle size (when the transmission eccentric shaft is small eccentricity) is basically less than 1mm (with flat jaw plate), it can completely replace the middle crush and directly enter the disc crush Machine for fine crushing
S.N. | ITEM | Unite | Figure | Remark |
1 | Feeding Open Length | mm | 100 |
|
2 | Feeding Open Width | mm | 125 |
|
3 | Max Feeding Size | mm | 50 |
|
4 | Output Size | mm | 1-20 |
|
5 | Shaft Speed | r/min | 350 |
|
6 | Capacity | Kg/h | 20-600 |
|
7 | Motor | Model |
| Y100L2-4 |
|
Power | Kw | 3 |
|
Rated Electrica | A | 6.8 |
|
8 | DIMENSION | mm | 1420×600×1190 |
|
9 | N.W. | Kg | 500 | Including motor&Acessaries |
