WRIKU Weighting Scale ICS-17A

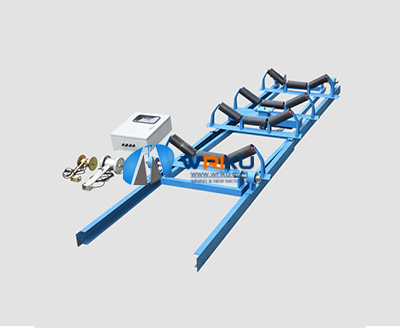

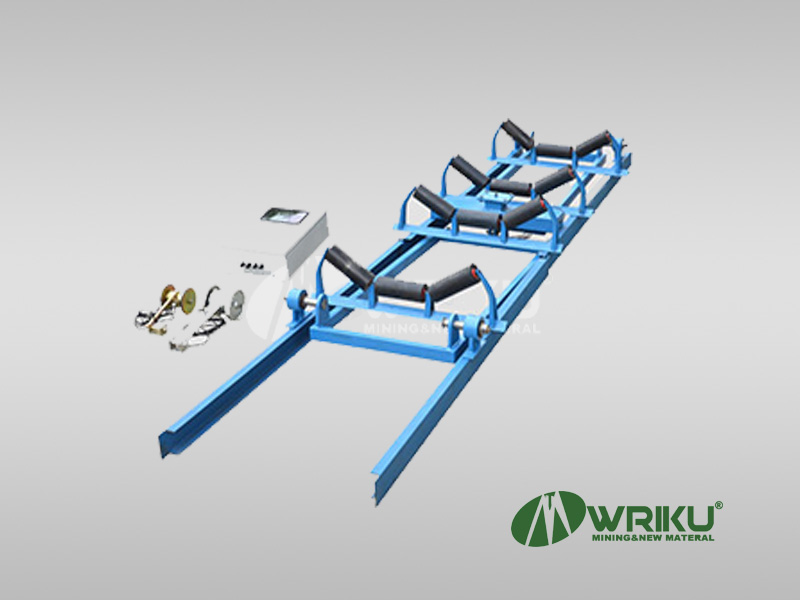

The WRIKU-ICS-17 weighing bridge is equipped with four sets/two sets of idlers on the double levers, and adopts two pull-type sensors for intermediate support, and the outer support adopts frictionless trunnion fulcrum. Effectively overcome the influence of eccentric load on the accuracy, this kind of closed device can prevent shock, moisture, corrosion and material accumulation, so the problems caused by the use of knife edge devices and bearing devices do not occur in harsh environments.

Structural innovation, precision breakthrough, easy maintenance, highly intelligent operation!

1. Main functions: Monitoring and processing functions, system setting functions, storage functions, query, display, printing functions, alarm functions and other expandable functions.

2. Authoritative certification: measurement certification, computer software copyright certification, utility model patent certification, etc.

3. Accuracy range: Actual long-term accuracy is less than or equal to 0.2%

4. Product composition: Weighing frame, imported load cell, speed sensor, weighing instrument, calibration device and software of "Production Remote Monitoring System".

WEIGHTING DEVICE

◆Comprehensive accuracy: ±0.01%;

◆The display is a four-line screen display, showing the instantaneous flow, cumulative amount, and operating parameters of the belt conveyor;

◆Scrolling menu, can be used for parameter input setting Chinese display, easy to operate;

◆Multiple calibration methods, automatic zero point and interval, automatic zero point tracking;

◆Communication interface (optional): standard RS~232C, RS485 interface.

◆If necessary, it can provide MODBUS, Ethernet communication and other functions.

◆The flow rate that can be set, the software PID adjustment, realizes the DCS automatic batching system control;

◆Multiple input and output ports;

◆Printing interface (printer optional).

◆Easy debugging: Chinese menu, automatic zero calibration, automatic interval calibration, fault self-diagnosis.

◆Data remote transmission:

--A. Analog quantity: real-time flow through the current signal (4-20mA, optional), the accumulated quantity is output to the remote place through the pulse signal

 --B.Digital: transmit all data to the host computer by means of communication;

◆Fault alarm: high flow alarm, low flow alarm, shutdown alarm, external alarm and other alarm signals;

◆Communication function: standard RS232 and standard RS485 interface, baud rate can be adjusted, address can be set, and multiple instruments can be networked;

◆Weighing instrument has two types: panel embedded and wall-mounted, which can meet the different requirements of various sites

Speed Sensor

◆It is connected to a special speed measuring device, which can eliminate the error caused by slippage between the friction wheel and the belt in the usual speed measuring device;

◆Airtight shell, with good shielding performance, good sealing performance, suitable for outdoor installation;

◆Brushless pulse generator, no need to adjust, calibrate or maintain;

◆The latest soft connection technology ensures the speed measurement accuracy more effectively;

◆Speed range: 0.05-4.0m/s

Weighting Sensor

The load cell is  resistance strain gauge tension (pressure) force sensor.

◆Nonlinearity: less than 0.05% of rated output;

◆Repeatability: less than 0.03% of rated output;

◆ Hysteresis: less than 0.03% of rated output;

◆Temperature sensitivity: ±0.003%/℃ at zero value, ±0.004%/℃ at full value

◆Safety overload: 150%

Speed Roller

The precise speed measuring roller (device) is installed on the conveyor frame and keeps running synchronously with the conveyor.
