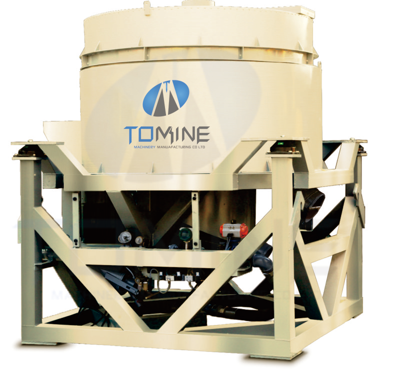

TPC800 Full Batch Centrifuge Concentrator

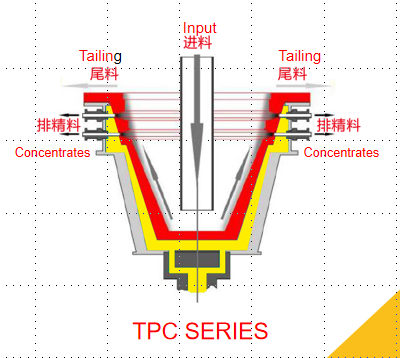

TPC Series concentrator is continiuous type which can work 24 hours without stopping for discharging, taling and concentrates are in seperatly discharged automatical with PLC system,can be widely used to recover gold, silver, platinum group elements, tungsten, copper, tin, titanium, lead and zinc, rare earth, ferro-manganese, ferro-chrome, ferro-iron, ferro-silicon and other minerals. It can also recycle the tailing from flotation and gravity concentration plant . After directly accessing the concentrator to the existing plant, the qualitative and quantitative analysis on the evaluation system is the main indicator for evaluating the efficiency of the swirling centrifuge concentrator. Specific quantifiable or qualitative points are as follow

in recent years, many new high-efficiency centrifugal beneficiation equipments have been introduced one after another, and certain industrial applications have been achieved. The swirling centrifugal beneficiation technology has made a major breakthrough. Especially with the increasingly prominent environmental pollution problems, centrifugal separation technology has attracted the attention of government and business users:

The discontinuous centrifugal concentrator was developed by YUNTIN GROUP  Co., Ltd. in 1964, so it is also called Yunxi centrifugal concentrator. It began to be applied in industry in 1966 and became the symbol of China's centrifugal beneficiation technology. In terms of the single-machine processing capability of the equipment, it has achieved certain effects, but it still does not solve the problems of large water consumption, low enrichment ratio and continuous operation.；

In the 1980s,the i Company developed a countercurrent continuous centrifugal concentrator, which solved the problem that the control mechanism of the traditional intermittent centrifuge was ineffective and the movement was not coordinated. The disadvantage of the countercurrent continuous centrifugal concentrator is that the sorting time of the material in the drum is too short, the sorting effect is poor, and the water and electricity unit consumption is significantly larger than that of the intermittent centrifuge, which limits its popularization and application.

At present, there are such  centrifugal concentrators on the market as  STL water jacket centrifugal concentrator, centrifugal disc concentrator and centrifugal gold conic concentrator, but it is mostly used for the selection of gold mines, and all belong to intermittent centrifuges, of very Low and limited scope on application

Vertical centrifugal concentrators that have been developed outside of China, including Knelson centrifugal concentrators and Falcon centrifugal concentrators, can achieve low water consumption and high enrichment ratio while continuous operation, and have been widely used in the ore dressing industry at home and abroad. However, due to the long service cycle and high cost of after-sales service and parts replacement, the equipment cost and maintenance cost of enterprise users  haven been  greatly increased.

In summary, the development and application of swirling centrifuges for continuous and multi-combination force fields is the mainstream of the development of swirling  Type centrifugal technology in the future. The application of fluidized backflushing technology has become an important development of vertical centrifuges. trend. Now, TOMINE/WRIKU'S team  has developed centrifugal ore dressing equipment with independent intellectual property rights, which can provide enterprises and users with efficient environmental protection, intelligent, low water consumption, continuous operation, convenient maintenance and excellent after-sales service!
