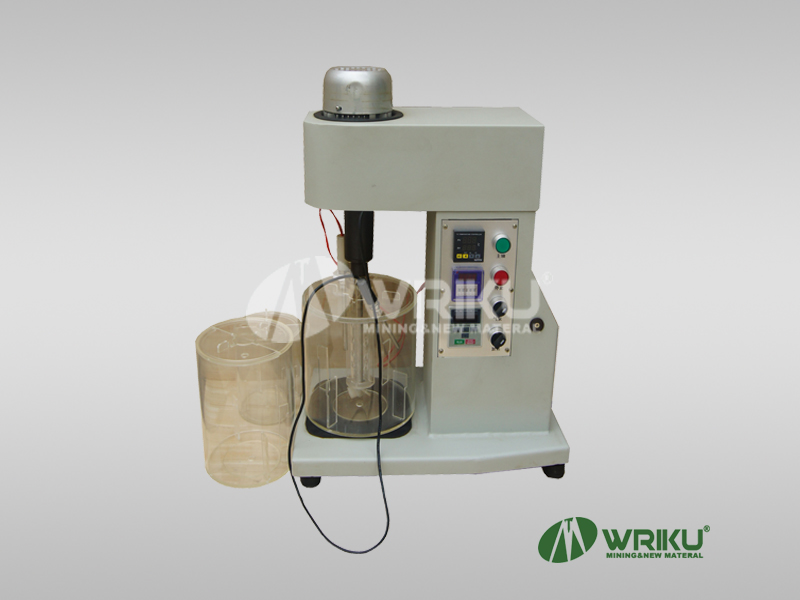

XJT Type Gas-filled Multifunctional Leaching Mixer

XJT type gas-filled multifunctional leaching mixer can be used for wet leaching and mixing in laboratories of mines and scientific research institutions such as geology, metallurgy, building materials, chemical industry, etc. The machine adopts external inflation to simulate the actual working conditions on site.
Availability:


XJT型充气多功能浸出搅拌机

XJT type gas-filled multifunctional leaching mixer

XJT type gas-filled multifunctional leaching mixer can be used for wet leaching and mixing in laboratories of mines and scientific research institutions such as geology, metallurgy, building materials, chemical industry, etc. The machine adopts external inflation to simulate the actual working conditions on site. Using frequency conversion technology, the impeller speed is steplessly regulated, and the adjustment is accurate; it is equipped with a temperature controller, which can monitor the temperature of the ore liquid in the tank at any time; it is equipped with a heater to heat and control the temperature of the ore liquid.


Item

Unit

Technical Date

Volume

L

1.5,3.0,5.5

Impeller Speed

r/min

0-2000

Impeller Diameter

mm

31,39,48

Spindle Motor YS-5622


Three-phase220V 2800r/min 120w

Feed Size

mm

0.05-0.2

Outline Dimension

mm

465×300×591

Oxygen Pump


ACO-002

Weight

Kg

21
