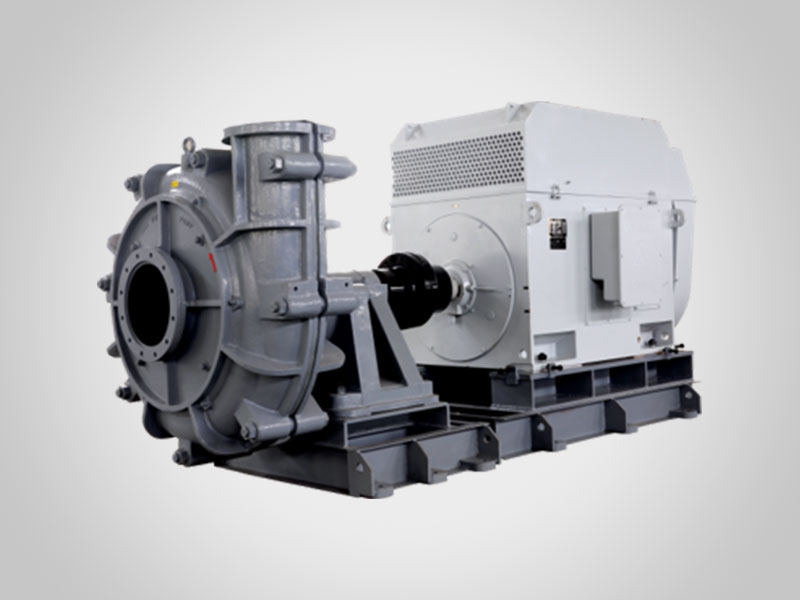

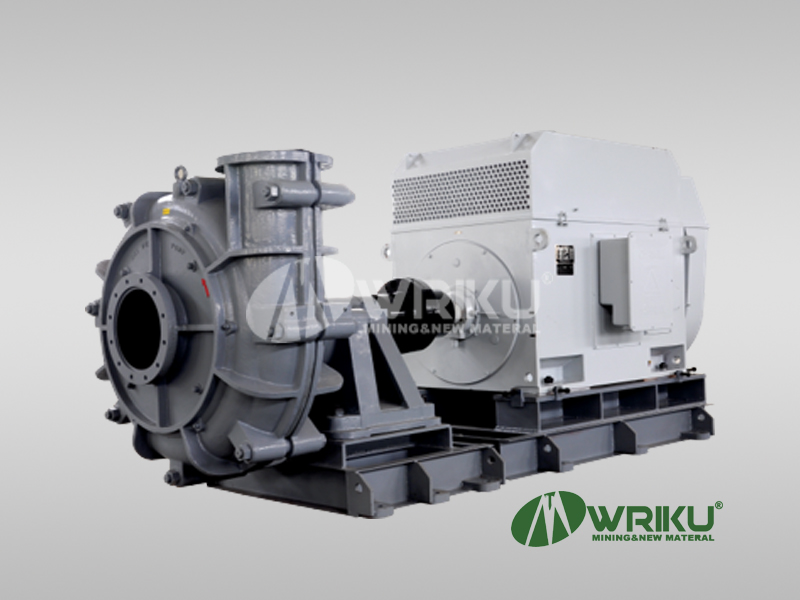

A Series Heavy Duty Pump

WRIKU's Centrifugal pump throws fluid out of chamber with centrifugal force generated by rotation of impeller. A Series Pump a single suction centrifugal pump, with axial intake connected to transfer pipeline. Energized fluid, departing the pump under pressure, is transferred to pipeline connected to discharge pipe along tangential direction.
Availability:
Contact Us


SLURRY Pump-2


Centrifugal pump throws fluid out of chamber with centrifugal force generated by rotation of impeller.

A Series Pump a single suction centrifugal pump, with axial intake connected to transfer pipeline. Energized fluid, departing the pump under pressure, is transferred to pipeline connected to discharge pipe along tangential direction.



pipe2

SLURRY Pump-3

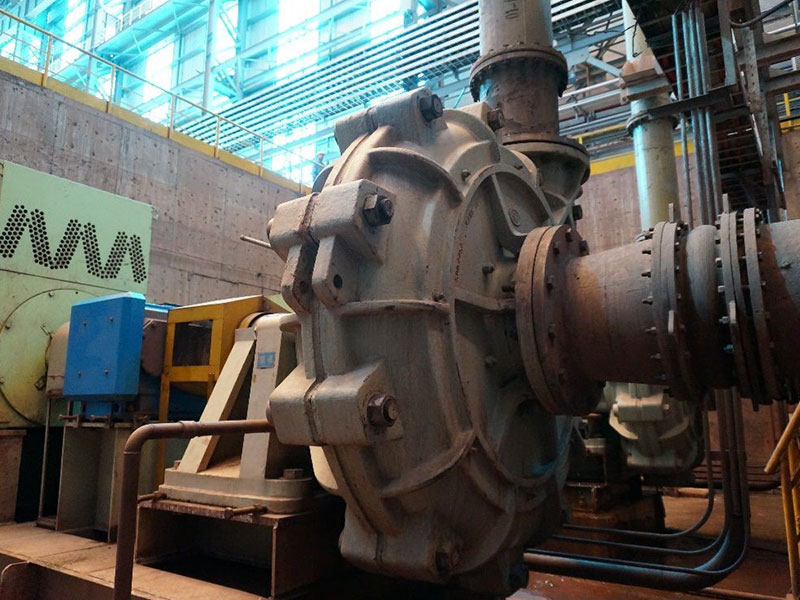

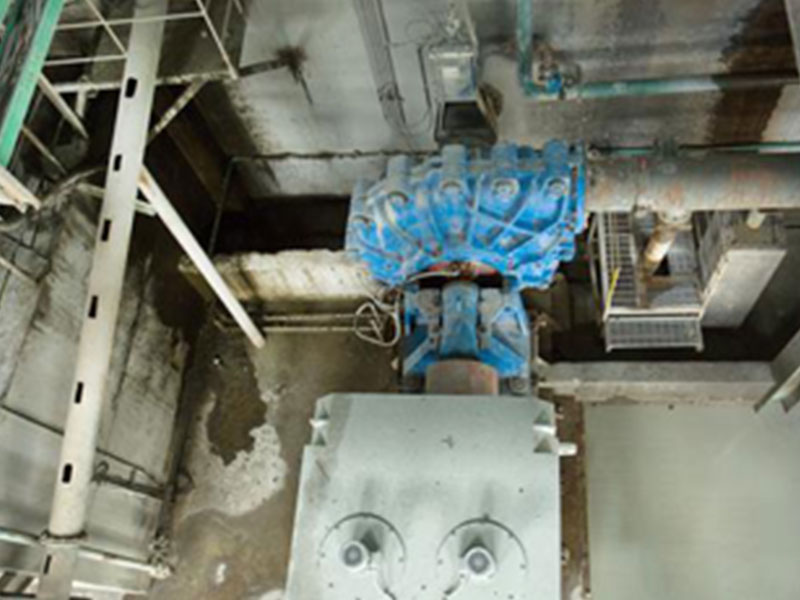

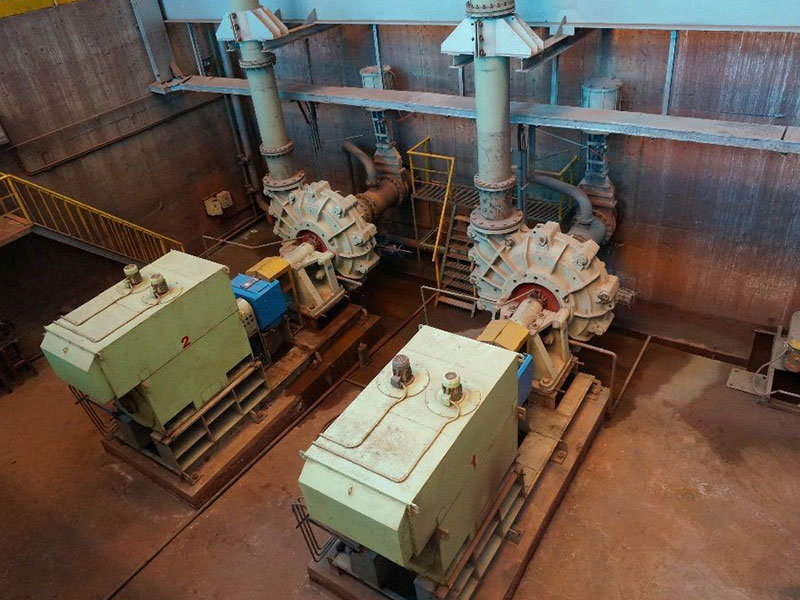

WRIKU A series heavy-duty slurry pumps are  used for  cyclone feed, concentrates and tails transferring


HOPSE PIPE 4

SLURRY Pump-31. Unique wear-resistant design (structure, material), long service life of wetted parts.

2. Wide range of performance, high operational efficiency.

3. Combination of wetted parts of different mateirals are availbale to address different working conditions.

4. High price/performance ratio, easy maintenance and services.

5. Available for multi-stage installation for long distance transfer.

6. Services of pump model selections for clients are available.


SLURRY PUMP3

SLURRY Pump-3

MODEL

FLOWRATEQ(m3/h)

HEAD H(m)

SPEEDn(r/min)

CLEAR WATER EFFICIENCY(%)

NPSHrNPSHr(m)

25A-M

28

43

3300

54.8

4.8

25A-R

22

21

2400

49.3

5.2

40A-M

48

27

2400

47

6.1

40A-R

38

20

1950

51.5

3.4

50A-M

110

43

2400

63.5

5.4

50A-R

60

21

1700

62

2.8

75A-M

180

34

2000

67.5

6.4

75A-R

100

15

1300

67

3.6

100AM

310

33

1300

70

6.2

100A-R

250

22

1050

71

4.5

150A-M

720

49

1100

71.8

7.6

150A-R

520

25

750

71 0

7.2

200A-M

1100

42

750

71

8.4

200A-R

740

24

550

75.6

6

250A-M

1430

35

650

80

6.4

250A-R

1160

22

500

81

5

300A-M

2150

42

525

77

8.5

300A-R

1900

21

375

78

5.2

350A-M

2800

32

425

82

7.1

350A-R

2240

22

350

82

5.1

450A-M

4600

31

325

84.8

7.7

450JA-R

3600

22

275

81.6

4.8

550A-M

5400

38

325

86

5

650A-M

7600

36

275

87

4.5

750A-M

9000

40

240

89

4

Note: WRIKU observe the right wihout notice on any technical amendment, this list is for reference only. For further inquiry please contact info@wriku.com

SLURRY PUMP3

SLURRY Pump-3

    Operating Conditions to Collect for Design Purpose

                                                                            SLURRY PUMP

 Customer

Product Model

 Operating Position(pump application)

  Flow (m3/h)

 Slurry Density (t/m³)

Density by Weight (%)

Particle Size dmax(mm)

 Head(m)

Pipe Inside Diameter (mm)

Pipe Inner Wall Material

 Minimum Level inside Pump Box to Pump Center Height (m)

Height Difference from Pump Center Height to Discharge (m)

 Excess Pressure at Pipe Outlet (MPa)

Pipe Fittings:

① Bend

②Valve

③ Reducer

Altitude (m.a.s.l.) (m)

Slurry Temperature(ºC)

 Note:

Installation:  electrical voltage, power  (440V/50Hz,60Hz/380V)
