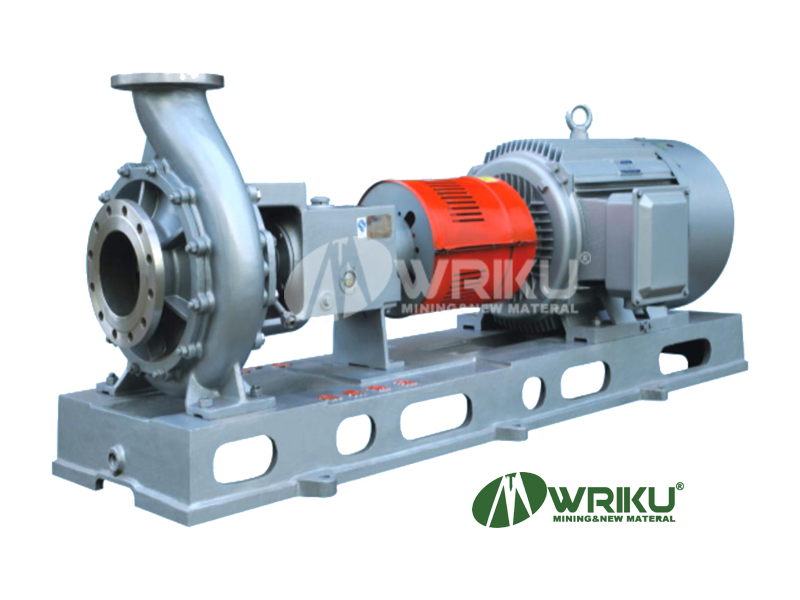

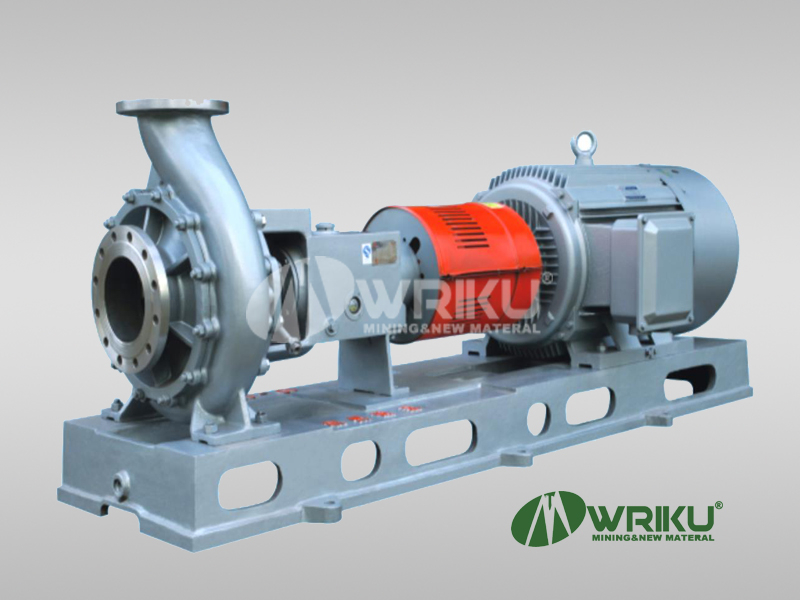

AZ Series Pulp Pump

WRIKU's AZ series Pulp Pump is a successful design based on long-term technology accumulation and on the experience of domestic and overseas advanced technology. The pump has a strong capacity to convey fiber, particles, the pulp below 8% density and other liquid with the solid content below 30%. It can be used in SUCH operating environments LIKE paper making, metallurgy, fertilizers, salt collecting, drainage and power plant,
Availability:
Contact Us

CHemical Pump9


AZ Pulp Pump

Pulp Pump


AZ series pulp pump is a centrifugal pump of horizontal, single stage, single suction, cantilever design, its performance parameters conform to ISO2858 and its technical requirement conform to ISO5199. the pump is a centrifugal pump of horizontal, axial end suction and radial discharge design, the pump cover is fixed on the frame and is clamped tightly by pump casing and frame


AZ series pulp pump is a centrifugal pump of horizontal, single stage, single suction, cantilever design, its performance parameters conform to ISO2858 and its technical requirement conform to ISO5199. the pump is a centrifugal pump of horizontal, axial end suction and radial discharge design, the pump cover is fixed on the frame and is clamped tightly by pump casing and frame

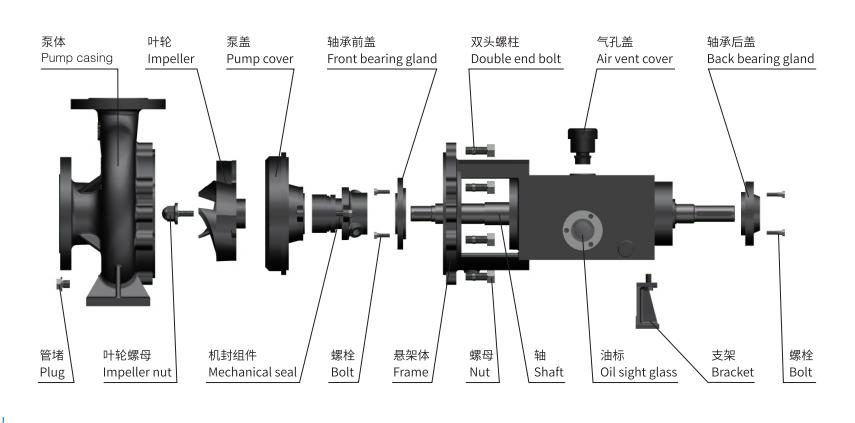

AZ Pulp Pump Structures

Chemical Pump2

CHemical Pump9

  • Metallurgy: electrolyte of electrolytic copper and nickel, sodium aluminate liquid  for aluminum production, acid for cobalt production, or slurry for zinc production,  ammonium vanadate for vanadium production, acid and thiocarbamide liquid for  gold production, etc.

  • Iron and steel industry: electroplating, scouring, electrophoretic painting.

  • Acid-making industry: hydrochloric acid, nitric acid, sulfuric acid, phosphoric acid,  phosphoric acid pulp, acetic acid, etc.

  • Petrochemical industry: petroleum’s refining, splitting and separation, butadiene,  alkylbenzene, carbinol, et

  • Fiber and plastic industries: Dacron, dichloromethane, epichlorohydrin, trichloro  propane, PVC, DMF etc..

  • Paper-making industry: pulp digestion liquor, green liquor, white liquor,  concentrated black liquor, bleaching liquor, etc.

  • Chemical fertilizer industry: urea, ammonium nitrate, ammonium bicarbonate,ammonium chloride, ammonium phosphate, potassium chloride, potassium sulfate, etc;

  • Fermentation industry: intermedium, lactic acid, citric acid, food additives, beer,  various fermenting liquored.

  • Environmental protection: various chemicals, wastewater containing acid and alkali, etc

HOPE PIPE8

CHemical Pump9

  • Capacity: （6～1600）m3/h  Total head: （5～160）m

  • Working temperature: （-20～200）℃

  • Max working pressure: 2. OMPa

  • Conform to ISO5199，ISO2858 、API682

  • API610 0H1semi-open，3 slice impeller，8％pulp，chipstock，hub


CHemical Pump9


To Secure Complicity of Pump Supply to operation site, Please  DO Fullfill the FAQ Carefully for Engineering Design

Operating condition/Positions：

Pumped fluid：

Capacity: m3/h

Max Rated Min

1 Media

Max ratio Min rati

Total head: m

Max Rated Min

2 Media

Max ratio Min rati

Suction pressure: MPa

Max Rated Min

3 Media

Max ratio Min rati

Discharge pressure  MPa


NPSH required    m

Particle diameter

Operating conditions

Continuous Intermittent

Medium characteristics

Corrosion Abrasion

Spot conditions

Operation temp °C

Max Normal Min

Position

Density

Under operating temp



Indoor



With heating



With shield

Viscosity

Under operating temp

Outdoor

Without heating

Without shield

Under operating temp

Requirement of Cold-proof

Specific heat

Requirement of Damp-heat-proof

Concentration of chloride

PPM



Site condition

H2S Density



PPM

Concentration of H2S

Altitude

Flammable Explosive

Atmosphere pressure

Volatile characteristics

Easy Not easy

Max Min %

Boiling point

Ambient temp. Range

Crystallization temp

Abnormal conditions

Dust Smoking

Smelting point

Electrical classification

Class Division Group

Point of flammability

Power source

Volt Hz Phase



Slurry Condition

Temp °C Pressure MPa

Chloride concentration PPM





Critical pressure



MPa

Compressed air of instrument

Max / Min. Pressure /MPa


Other






To Secure Complicity of Pump Supply to operation site, Please  DO Fullfill the FAQ Carefully for Engineering Design
