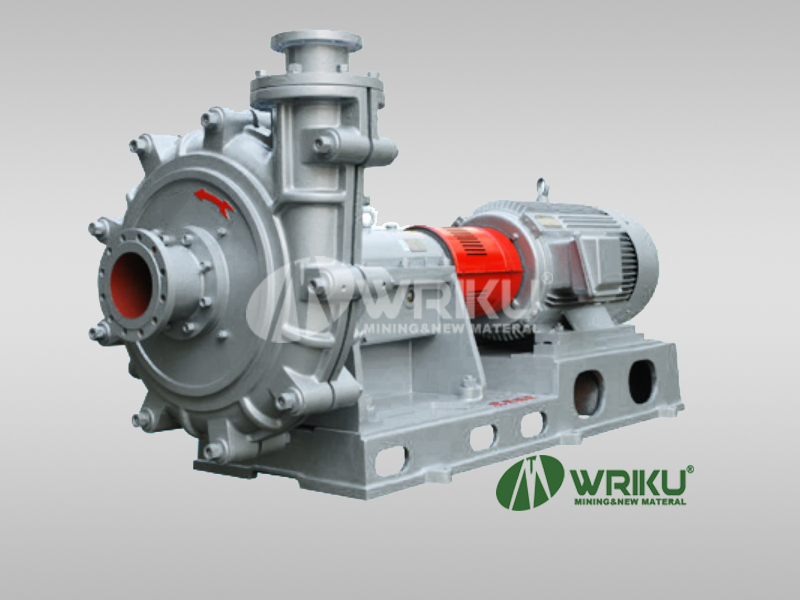

J Series Heavy Duty Slurry Pump

WRIKU's J heavy-duty slurry pump is a successful pump designed by our company with advanced two-phase flow hydraulic design and hydraulic model, designed on basis of the requirements of users.The reasonable cantilever ratio and fine wearing materials make the pump feature high efficiency, energy-saving, long service life, high conveying density, good cavitation, resistance smooth running, leakage-free and easy maintenance.
Availability:
Contact Us

CHemical Pump9



Heavy Duty Slurry Pump

Heavy Duty Slurry Pump

WRIKU's J heavy-duty slurry pump is a successful pump designed by our company with advanced two-phase flow hydraulic design and hydraulic model, and it also absorbs the characteristics of the same type products at home and abroad, based on the requirements of users.The reasonable cantilever ratio and fine wearing materials make the pump feature high efficiency, energy-saving, long service life, high conveying density, good cavitation, resistance smooth running, leakage-free and easy maintenance.


CHemical Pump7

CHemical Pump9




Heavy Duty Slurry Pump

Heavy Duty Slurry Pump

It is used to convey high-concentrated corrosive slurry containing a great deal of solid materials. Such as coal preparation process with dense medium, hydraulic slag removal system in power station, slag removal in blast furnace, mine, chemical, metallurgy, salt slurry,etc. One issue is that while compared with H Series Heavy duty Slurry Pump,  J series Slurry pump can only be manufactured with Full metal wet end rather than Rubber wet ends parts





CHemical Pump7

CHemical Pump9

Capacity:（4 ～ 3240）m3/h ；

Total head:（7 ～ 115）m

Working temperature:（-20～180）℃；

Max working pressure: 2.5MPa；

Max particle diameter:（3 ～115）mm；

Max solid content: 60％

conform to ISO5199 ，ISO2858 standard API610 OH1

Chemical Pump2

CHemical Pump9

●The pump casing of J series heavy-duty slurry pump adopts dual-layer pump shell structure(its parts include front shell, back pump shell font guard bord, back guard plate and volute).

●The pump's outlet position can be installed by rotation in eight angles with 45*interval.

●The front and back pump shells are separated vertical-yin the middle of both and connected with bols; The back pump shell located with slop-cut and bracket and connected with bolts.

●The covers of impeller front and back pump are equipped with back blades to deceased leakage and heighten efficiency, service life and balancing dial force.

●The back bearing adopts the back to back installation with two thrust ball bearings with angle contact to effectively prevent pump's axial vibration.

Chemical Pump2
