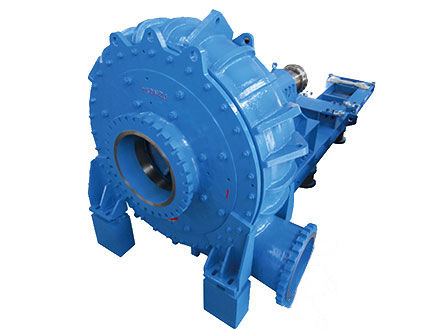

H Series High Head Pump

WRIKU's H Series Centrifugal pump throws fluid out of chamber with centrifugal force generated by rotation of impeller. H Series Pump a single suction centrifugal pump, with axial intake connected to transfer pipeline. Energized fluid, departing the pump under pressure, is transferred to pipeline connected to discharge pipe along tangential direction.
Availability:
Contact Us

SLURRY PUMP-1


Description of H Series High Head Slurry Pump

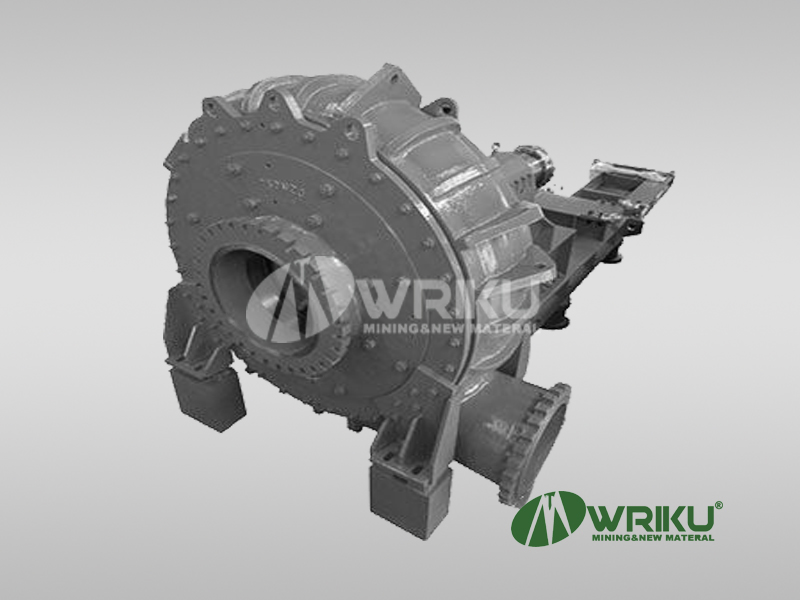

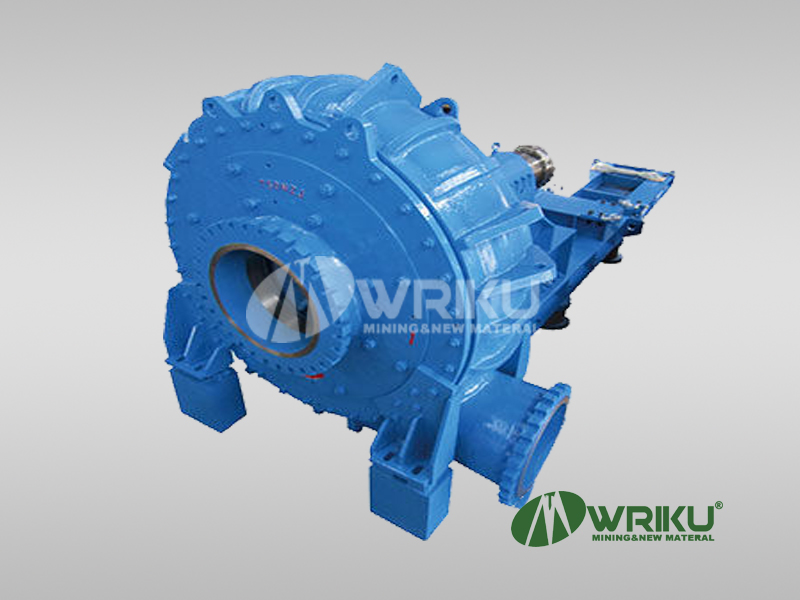

H Series Heavy Duty Pump


H series is high head slurry pump which is mainly used in long distance delivery of slurry like tailings delivery. Because the rubber wet ends are limited to line speed, the wet parts of H series use metal material. The range of discharge size is 25-150mm; flow rate range is 5-800m3/h and its max head is 100m. Therefore, H slurry pump is more efficient and with a higher head than other slurry pumps. Additionally, our slurry pumps are good replacememts for Warman slurry pumps, Metso slurry pumps, Goulds slurry pumps


SLURRY PUMP3



SLURRY Pump-2

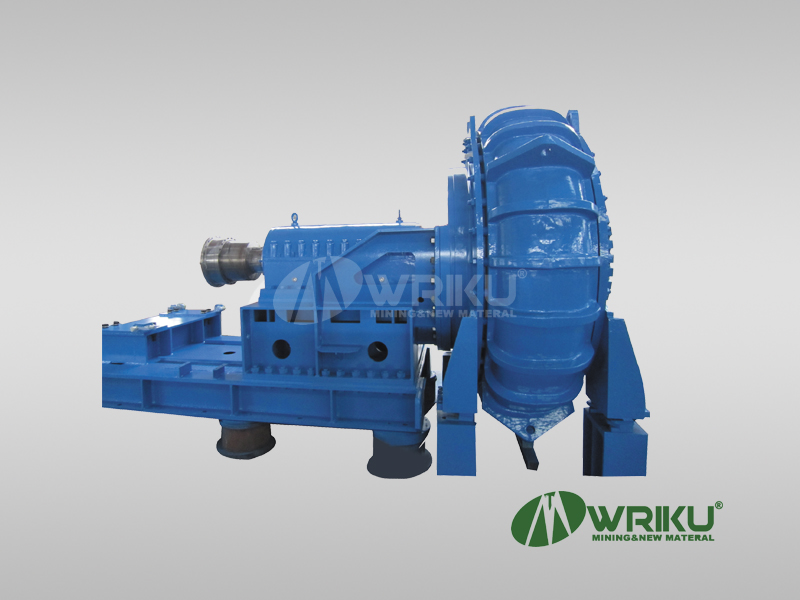

High Head Slurry Pump

Advantages and Features

1.High head centrifugal slurry pump is characterized by wide applications, high efficiency, easy maintenance and high performance cost ratio.

2.Wet parts are anti-abrasive, thus they can be used for a long time. In addition, they are made of different materials, suitable for different working conditions.

3.Rubber lined sludge pump

SLURRY PUMP3

SLURRY Pump-3


Technical Specification

Model

FLOWRATE Q(m3/h)

HEAD H(m)

SPEED n(r/min)

Drive Arrangement

BladesNo.

Inlet Diameter(mm)

OutletDiameter(mm)

Max.Diameter(mm)

25H-MR

10.3-26

80-93

2050-2200

CRZ/ZVZ

5

38

25

330

50H-MR

35.5-120

17.9-90

850-1450

CRZ/ZVZ

5

76

51

457

75H-MR

47.5-252

23.8-100

700-1400

CRZ/ZVZ

5

102

76

480

100H-MR

162-576

34-94

600-1000

CRZ/ZVZ

5

152

102

711

150NZJH-MR

216-800

31-95

600-1000

CRZ/ZVZ

5

152

152

711

Note: WRILU observe the right without Notice on anyTechnical Amendment , for Details please contact info@wriku.com


SLURRY PUMP3

SLURRY PUMP-1


To Secure Complicity of Pump Supply to operation site, Please  DO Fullfill the FAQ Carefully for Engineering Design

                                                               SLURRY PUMP

 Customer:

 Product Model:

Operating Position(pump application)

Flow (m3/h)

 Ore Density (t/m³)

 Slurry Density (t/m³)

 Density by Volume (%)

Density by Weight (%)

 Particle Size d50(mm)

 Particle Size dmax(mm)

 Head(m)

Pipe Inside Diameter (mm)

Pipe Inner Wall Material

 Minimum Level inside Pump Box to Pump Center Height (m)

Height Difference from Pump Center Height to Discharge (m)

 Excess Pressure at Pipe Outlet (MPa)

 Pipe Fittings:

①Bend

② Valve

③ Reducer

 Altitude (m.a.s.l.) (m)

 Slurry Temperature(ºC)

 Note:

Installation:  electrical voltage, power  (440V/50Hz,60Hz/380V)


SLURRY Pump-3
