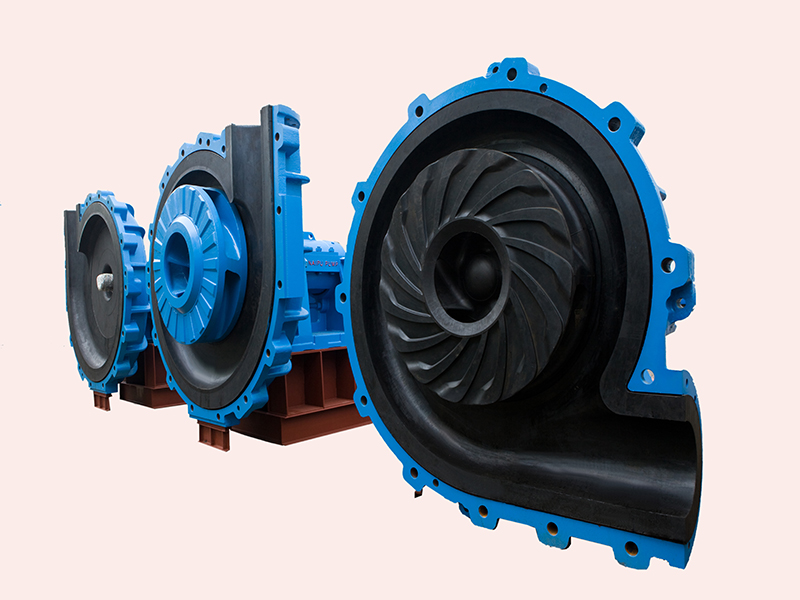

L Series Light Duty Pump

WRIKU's L series Light-duty slurry pump is a centrifugal pump with cantilever impeller. It is chiefly designed to meet the demand of non-ferrous and black mine mineral processing system. WRIKU'S L series slurry pumps are equivalent to Warman L series pumps. Solid and durable, centrifugal dredge pump is always the first choice for transporting tail mine slurry, ashes and other slurries in dressing plant, power station, coal washer and metallurgical plant.
Availability:
Contact Us

SLURRY Pump-3

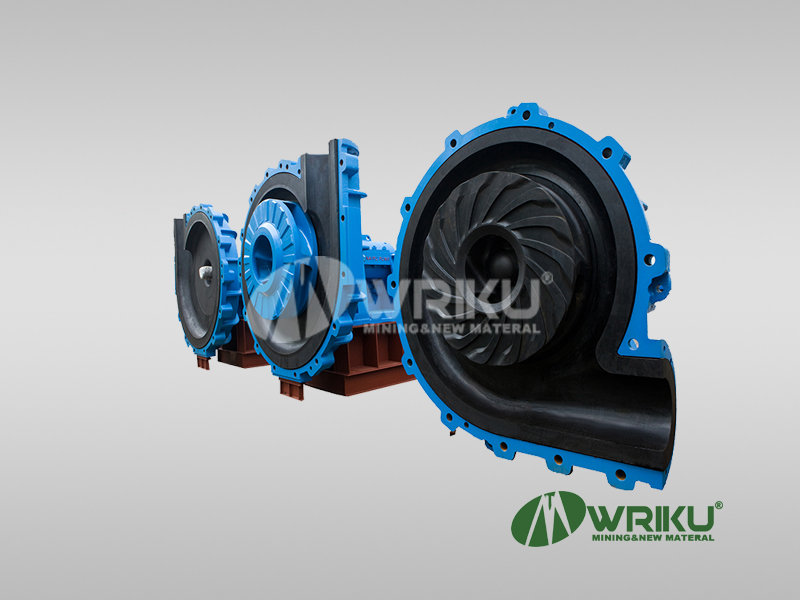

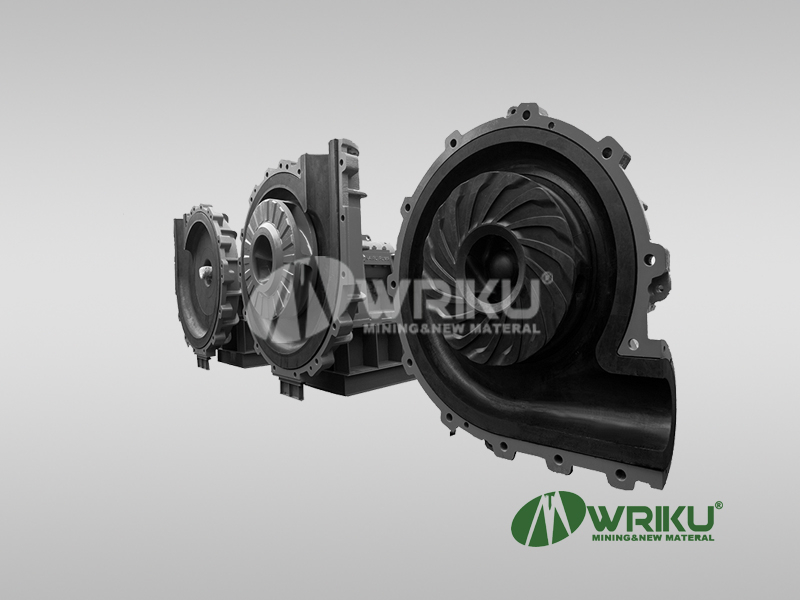

L Series Slurry Pump 1

Light Duty Slurry Pump

WRIKU's Light-duty slurry pump is a centrifugal pump with cantilever impeller. It is chiefly designed to meet the demand of non-ferrous and black mine mineral processing system. WRIKU's L series slurry pumps are equivalent to Warman L series pumps.  Solid and durable, centrifugal dredge pump is always the first choice for transporting tail mine slurry, ashes and other slurries in dressing plant, power station, coal washer and metallurgical plant.  WRIKU offers sand pump, sludge pump, dredge pump and other customized slurry pumps upon your request

SLURRY PUMP3




SLURRY PUMP-1


L Series Slurry Pump 1


Advantages and Features

Light-duty slurry pump employs unique anti-corrosive design and the wetted parts have a long service life.

Multistage tandem technology can be used to meet long distance transportation.

Centrifugal dredge pump has features of high performance cost ratio, easy maintenance, wide performances and high efficiency.




SLURRY Pump-3

SLURRY Pump-2

Model

FLOWRATE Q(m3/h)

HEAD H(m)

SPEED n(r/min)

Drive Arrangement

Blades No.

Inlet Diameter(mm)

Outlet Diameter(mm)

Max. Diameter(mm)

200L-R

240-1000

16.2-43

600-900

CRZ/ZVZ, DCZ

5

254

203

572

250L-R

480-1280

13.8-37

600-900

CRZ/ZVZ, DCZ

5

305

254

571

300L-R

531.3-1860

12.9-42

500-800

CRZ/ZVZ, DCZ

5

350

300

665

350L-M,MR

794.1-2700

13.5-58

450-850

CRZ/ZVZ,DCZ,GEARBOX

5

400

350

750

350L-R

932.1-2500

14.1-40

450-700

CRZ/ZVZ

5

400

350

750

400L-M,MR

1100-3950

11.3-53

350-700

CRZ/ZVZ, DCZ,GEARBOX

5

450

400

840

400L-R

896.9-3250

10.6-37

350-590

CRZ/ZVZ, DCZ

5

450

400

840

450L-M,MR

1708.5-4608

14.4-47

350-590

CRZ/ZVZ, GEARBOX

5

500

450

950

450L-R

1374.5-4300

13.8-41

350-550

CRZ/ZVZ, GEARBOX

5

500

450

950

550L-M,MR

2557.9-7500

12.2-51

250-475

CRZ/ZVZ, GEARBOX

5

650

550

1235

550L-R

2435.3-6660

12.5-42

250-425

CRZ/ZVZ, GEARBOX

5

650

550

1235

650L-M,MR

3049.4-11520

12.4-64

200-425

CRZ/ZVZ, GEARBOX

5

800

650

1440

SLURRY PUMP3


SLURRY PUMP-1

L Series Slurry Pump 1

Structure

Rational configurations of materials, based on different duties, are important. Four opticons of configuratons of materials are often used as follows:

R：rubber impeller + rubber liners + rubber inserts (medium and fine solids, medium and low heads)

 M：metal impeller + metal liners + metal inserts (high temperatures, mineral oil contained)

 MR：metal impeller + rubber liners + rubber inserts (medium to coarse solids, high heads, SAG mill discharge)

MMR：metal impeller +  metal throatbush + rubber liners (medium to coarse solids, high heads, where pump may be stuck)

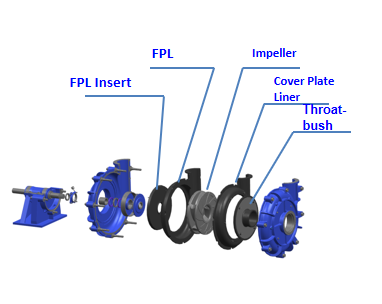

Wets Ends


SLURRY Pump-3

SLURRY Pump-3

                                        SLURRY PUMP

ustomer

 Product Model

 Operating Position(pump application)

Flow (m3/h)

Ore Density (t/m³)

 Slurry Density (t/m³)

Density by Volume (%)

Density by Weight (%)

 Particle Size d50(mm)

Particle Size dmax(mm)

 Head(m)

Pipe Inside Diameter (mm)

Pipe Inner Wall Material

 Minimum Level inside Pump Box to Pump Center Height (m)

Height Difference from Pump Center Height to Discharge (m)

Excess Pressure at Pipe Outlet (MPa)

 Pipe Fittings:

① Bend

② Valve

③Reducer

Altitude (m.a.s.l.) (m)

 Slurry Temperature(ºC)

 Note:

Installation:  electrical voltage, power  (440V/50Hz,60Hz/380V)
