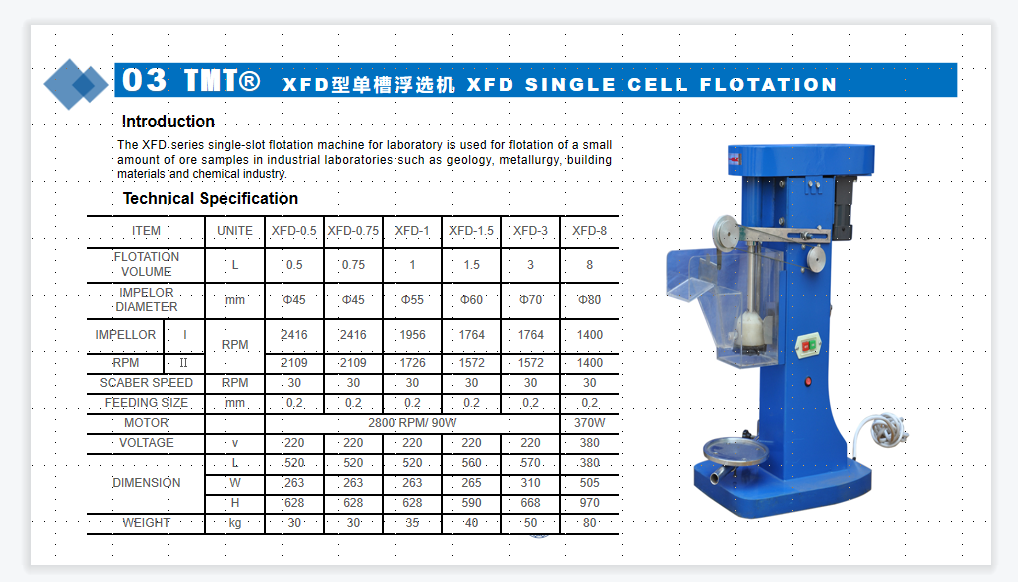

ITEM | UNITE | XFD-0.5 | XFD-0.75 | XFD-1 | XFD-1.5 | XFD-3 | XFD-8 | |
FLOTATION VOLUME | L | 0.5 | 0.75 | 1 | 1.5 | 3 | 8 | |
IMPELOR DIAMETER | mm | Φ45 | Φ45 | Φ55 | Φ60 | Φ70 | Φ80 | |
IMPELLOR | I | RPM | 2416 | 2416 | 1956 | 1764 | 1764 | 1400 |
RPM | Ⅱ | 2109 | 2109 | 1726 | 1572 | 1572 | 1400 | |
SCABER SPEED | RPM | 30 | 30 | 30 | 30 | 30 | 30 | |
FEEDING SIZE | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
MOTOR | 2800 RPM/ 90W | 370W | ||||||
VOLTAGE | v | 220 | 220 | 220 | 220 | 220 | 380 | |
DIMENSION | L | 520 | 520 | 520 | 560 | 570 | 380 | |
W | 263 | 263 | 263 | 265 | 310 | 505 | ||
H | 628 | 628 | 628 | 590 | 668 | 970 | ||
WEIGHT | kg | 30 | 30 | 35 | 40 | 50 | 80 | |
ITEM | UNITE | XFD-0.5 | XFD-0.75 | XFD-1 | XFD-1.5 | XFD-3 | XFD-8 | |
FLOTATION VOLUME | L | 0.5 | 0.75 | 1 | 1.5 | 3 | 8 | |
IMPELOR DIAMETER | mm | Φ45 | Φ45 | Φ55 | Φ60 | Φ70 | Φ80 | |
IMPELLOR | I | RPM | 2416 | 2416 | 1956 | 1764 | 1764 | 1400 |
RPM | Ⅱ | 2109 | 2109 | 1726 | 1572 | 1572 | 1400 | |
SCABER SPEED | RPM | 30 | 30 | 30 | 30 | 30 | 30 | |
FEEDING SIZE | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
MOTOR | 2800 RPM/ 90W | 370W | ||||||
VOLTAGE | v | 220 | 220 | 220 | 220 | 220 | 380 | |
DIMENSION | L | 520 | 520 | 520 | 560 | 570 | 380 | |
W | 263 | 263 | 263 | 265 | 310 | 505 | ||
H | 628 | 628 | 628 | 590 | 668 | 970 | ||
WEIGHT | kg | 30 | 30 | 35 | 40 | 50 | 80 | |
