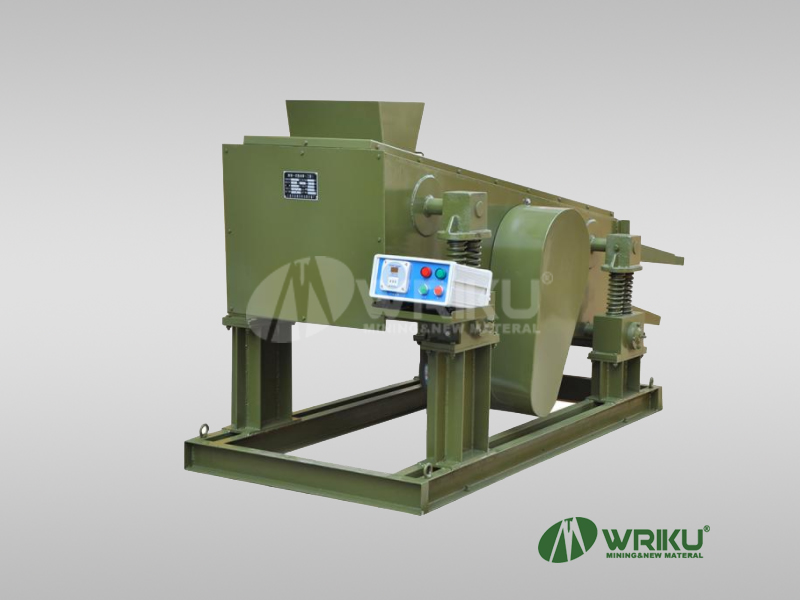

Drum front primary and secondary vibrating screen
Pelletized ore, sintered ore drum front primary and secondary vibrating screen is mainly used for the determination of the combined content of pellet ore, sintered ore at all levels, it can replace the hand sieve, eliminating human error, improving the accuracy of detection, and is the ideal equipment for pellet ore, sintered ore detection. The machine adopts optimized design to make its structure more compact and operation easier, fully sealed design, environmental protection and no dust, it can detect >40mm, 40-25mm, 25-16mm, 16-10mm lt;10mm five levels, in line with the technical requirements in GB8209, widely used in pellet plant, sinter plant and steel plant.
Item | Unite | primary | secondary |
Sieving Area | mm | 1600×500 | 1600×500 |
Hole Size | mm | 40×40 25×25 | 16×16 10×10 |
Amplitude | mm | 3 | 2 |
Vibration Speed |
| 720r/min | 960r/min |
Motor Power | kw | 2.2 | 2.2 |
Deck |
| 2 | 2 |
Voltage | v | 380 | 380 |
control Box |
| Digital timing | Digital timing |
Dimension | mm | 2210×1050×1240 | 2210×1050×1240 |
Weight | kg | 980 | 980 |
