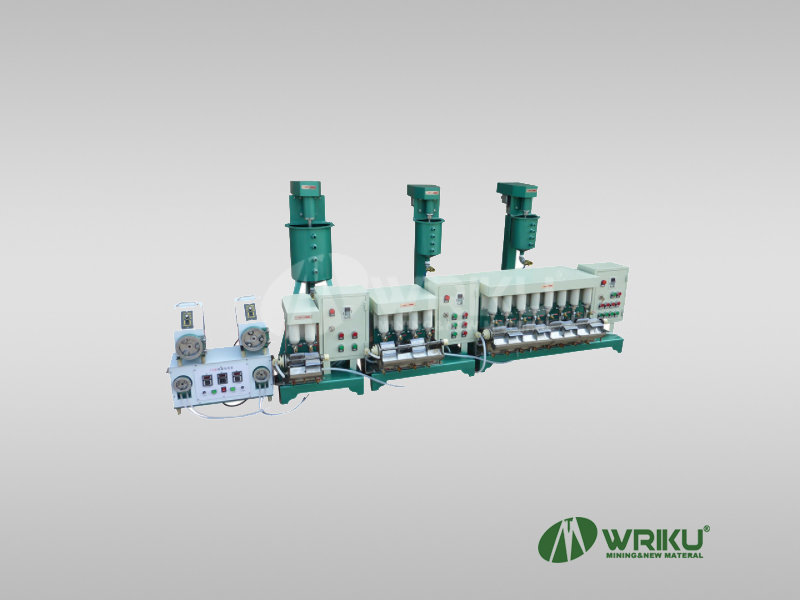

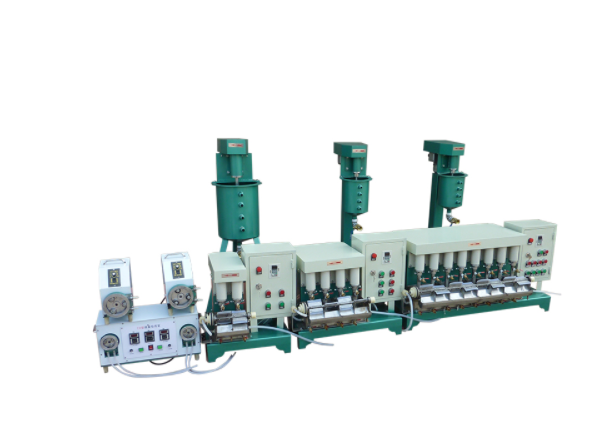

XFLB miniature closed-circuit continuous flotation machine
The XFLB miniature closed-circuit continuous flotation machine for laboratory use is a continuous flotation machine with a small number of representative ore samples, the test results can represent the results of laboratory stand-alone small closed-circuit experiments and semi-industrial tests, and can provide the beneficiation index for laboratory use or semi-industrial use in a relatively short period of time.
The XFLB miniature continuous flotation machine is a self-priming mechanical agitation continuous flotation machine, which requires no or very little auxiliary equipment, and the equipment configuration is convenient and adjustable to complete the beneficiation experiments of non-ferrous metals, ferrous metals and non-metals.
MODLE&SPECIFICATION | UNITE | OPTIONAL ADAPTOR/CELL | ADAPTOR | ASSEMBLY |
8cell | 4 cell | 2 Cell | Slurry Tank | Angitator |
CELL VOLUME | L | 1 | 0.75 | 0.5 | 20 | 5.0 |
IMPELLOR DIA | mm |
|
|
|
|
|
IMPELLOR SPEED | 1 | m/s | 7.9 | 7.5 | 7.5 | 7.5 | 7.4 |
2 | 7 | 6.9 | 6.9 | 6.1 | 6.5 |
3 | 6 | 6 | 6 |
| 5.8 |
SCRABER SPEED | 1 | r/min | 20 |
|
|
2 | 30 |
|
|
FEEDING SIZE | mm | ≤0.3 |
POWER | w | 180/2 cell | 180 | 90 |
CAPACITY | kg/h | 3-5 |
|
|
WEIGHT | kg | 400 |
|
|
|
|
|
|
|
|
|
|
