Hydro Cyclone

WRIKU's TOMINE@TMT Series Cyclone is a leading quality hydro-cyclone. The Hydro Cyclone is an Key classifiers in ore dressing concentrators, especially for separating fines, It is also applied in de-sliming, sand removing and thickening process. With the Continious development of technology, cyclones are demanded in two extremes: large diameter (high capacity) and small diameter (separating fines).
Availability:

Cyclone (2)

WRIKU's TOMINE@TMT Series Cyclone is a leading quality  Hydro-cyclone.

The Hydro Cyclone  is an Key  classifiers in ore dressing concentrators, especially for separating fines, It is also applied in de-sliming, sand removing and thickening process. With the Continious  development of technology, cyclones are demanded in two extremes: large diameter (high capacity) and small diameter (separating fines).

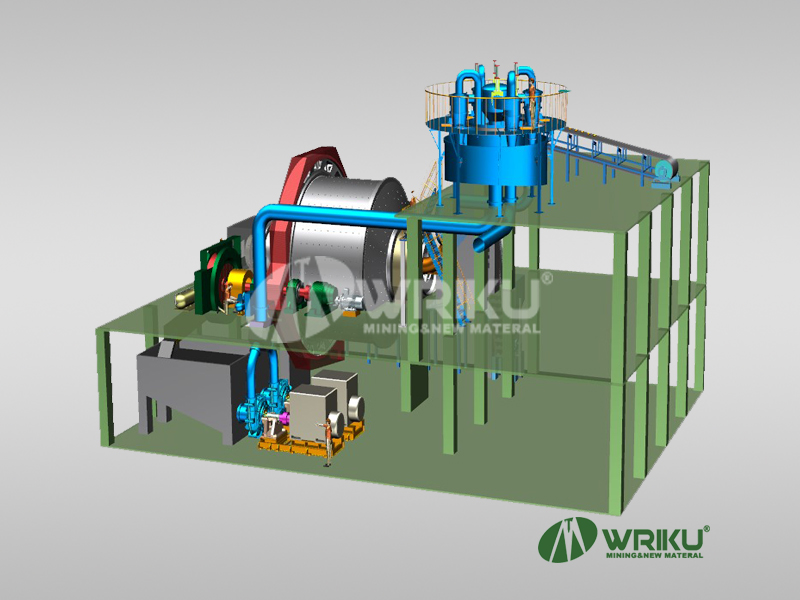

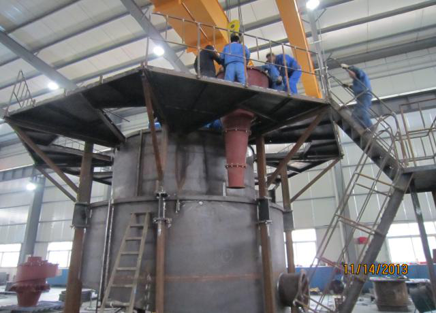

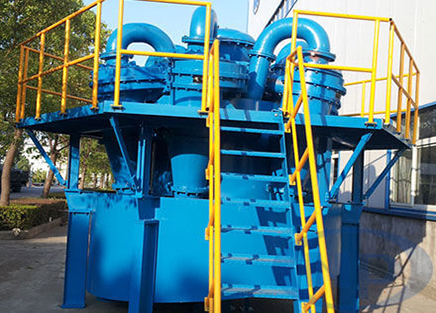

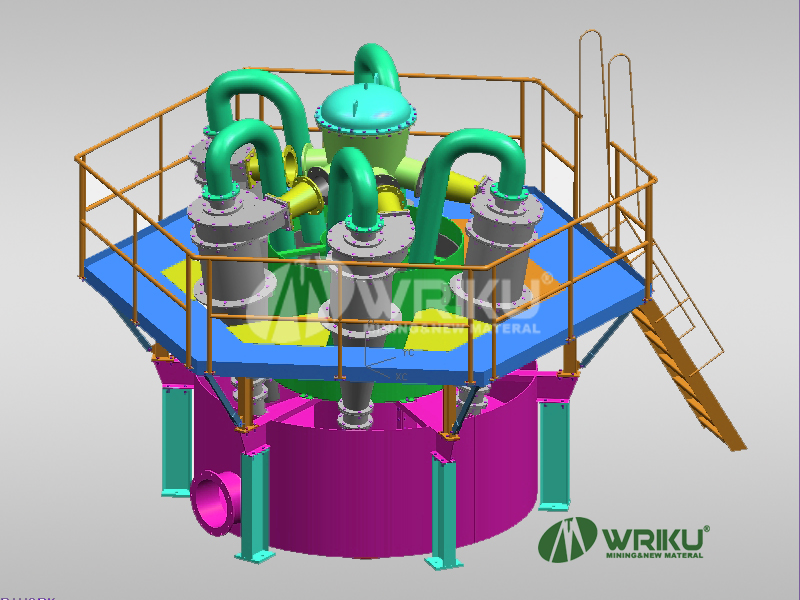

TYPIVAL APPLICATION11 单只

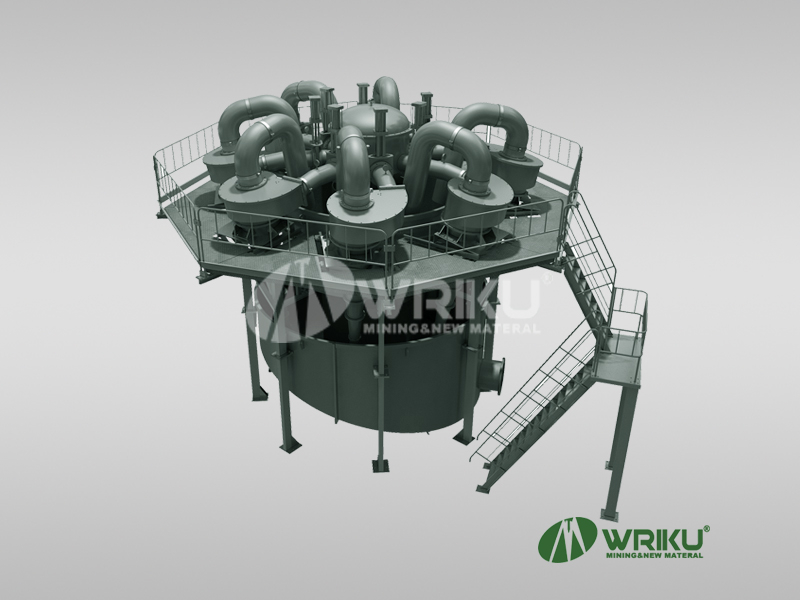

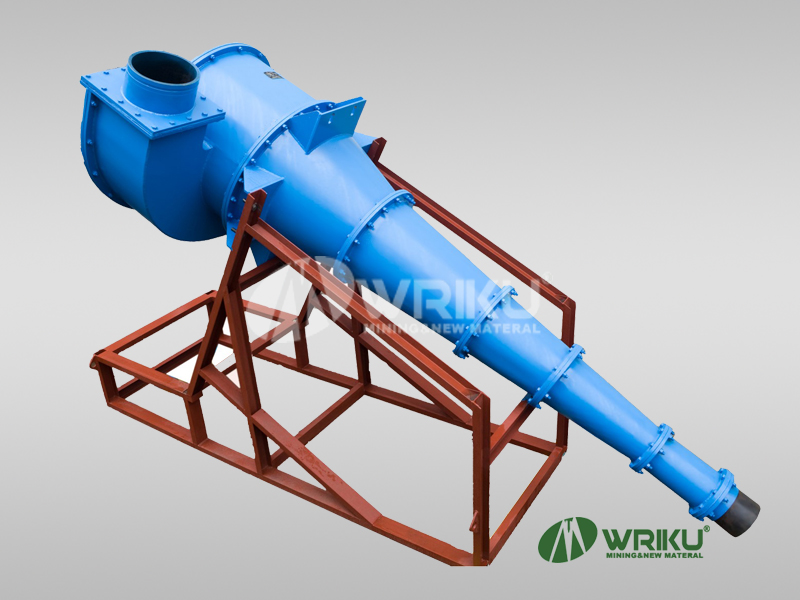

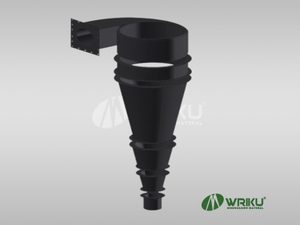

WRIKU's TOMINE@TMT Series Cyclone


WRIKU's TOMINE@TMT Series Cyclone is a leading quality  Hydro-cyclone.

The Hydro Cyclone  is an Key  classifiers in ore dressing concentrators, especially for separating fines, It is also applied in de-sliming, sand removing and thickening process. With the Continious  development of technology, cyclones are demanded in two extremes: large diameter (high capacity) and small diameter (separating fines).



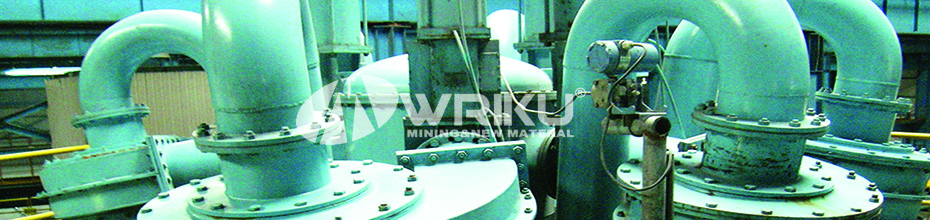

930220

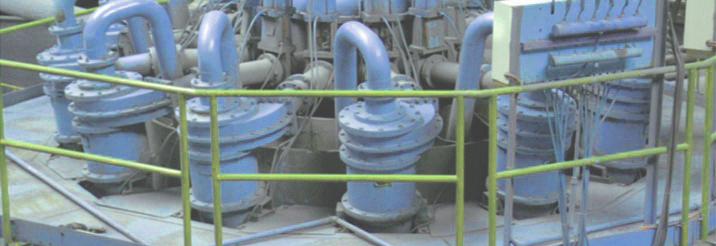

CYCLONE

WRIKU' s TOMINE@TMT Series Cyclone Bears such Feature in below:

Hydro Cyclone


※Higher capacity - capacity higher by 15-25% than that of conventional cyclone;

※Finer solids classification - solids finer by 20-30% than that of conventional cyclone;

※Higher efficiency - efficiency higher by 2-5% than that of conventional cyclone;

※Wide Application Range - modularized cones can be configured for different operating duties;

※Longer service life of wear part;

※Design and model selection available;

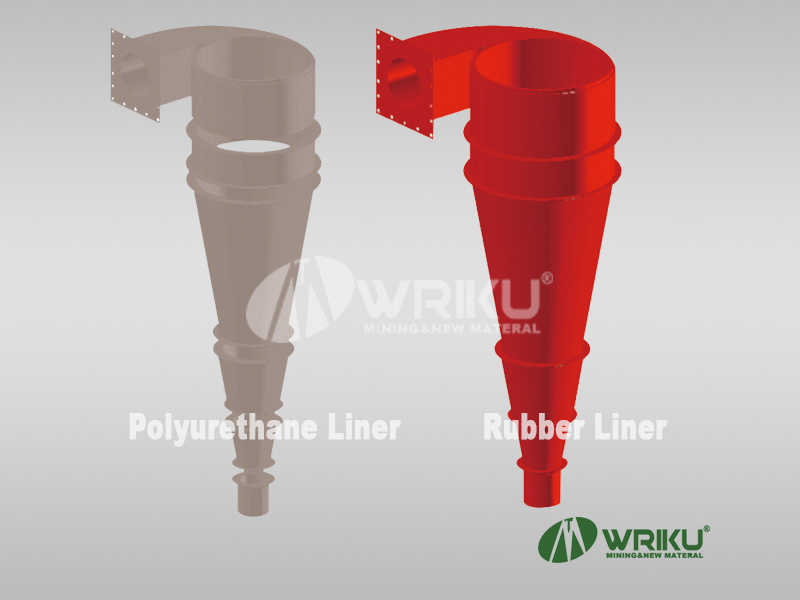

A Comparison on Physical Characteristics Between LINATEX&WRIKU'S

Color

Red (LINATEX rubber)

Black ( WRIKU's NP Rubber)

Type of polymer

Native rubber

Native rubber

hardness

38

40

Tensile strength

26.6Mpa

27MPa

Extensibility (breaking)%

810%

≥800%

Permanent deformation

7

8

Tearing strength

44N/mm

44N/mm

Resilience

83%

80%

S. G.

0.97

1.15

Temperature range

-40 deg C~ +70 deg C

-20 deg C ~ +75 deg C


930220



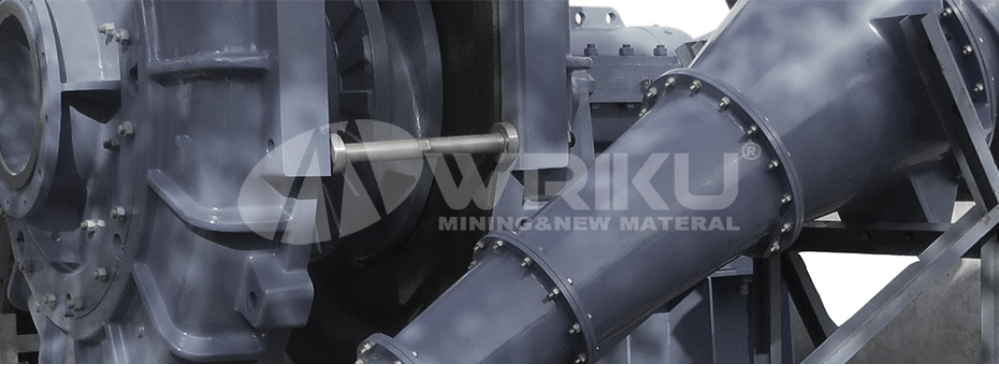

Cyclone (2)



Model

Cylinder ID φ(mm)

Cone Angle (o)

Feed Inlet ID φ(mm)

vortex finder ID φ(mm)

U/F Outlet ID φ(mm)

Max. Particle Size Allowed in Feed (mm)

Feed Pressure (Mpa)

Throughput (m3/h)

Separation size (μm)

L(mm)

W(mm)

H(mm)

Unit Wt(KG)

TP-X838

838

20

320

260-340

80-200

22

0.03-0.2

600-850

100-350

1450

1350

4050

1400

TP-X660

660

20

250

200-240

80-150

20

0.03-0.2

260-350

74-220

1200

1000

2500

770

TP-X500

500

20

150

160-180

90-110

10

0.03-0.3

140-220

74-220

980

900

2400

580

TP-X350

350

20

125

90-135

30-85

6

0.03-0.3

70-160

50-150

950

860

1870

460

TP-X250

250

20

100

60-85

24-75

3

0.03-0.3

27-70

30-100

690

560

1720

150

TP-X150

150

10

50

40-50

12-35

1.5

0.05-0.4

14-30

20-74

300

270

1050

30



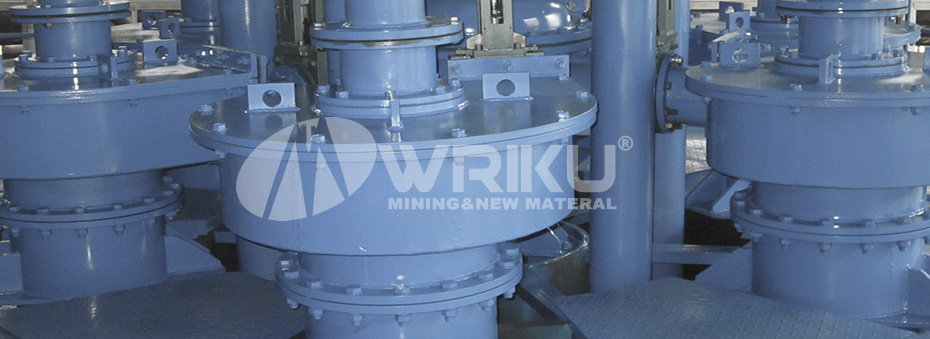

CycloneA

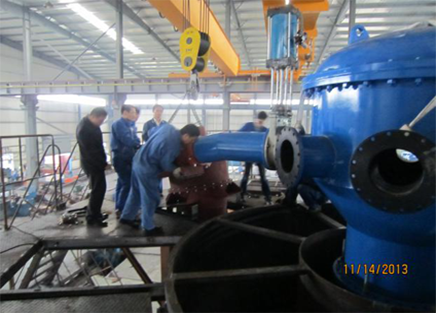

Factory Assembly



Factory Assembly


320177

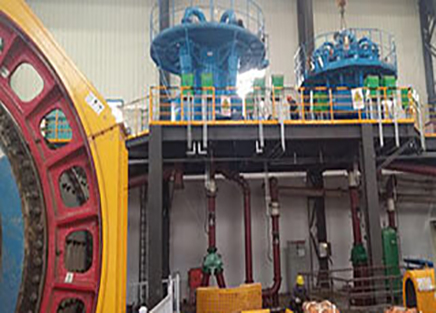

Ball Mill&Cyclone


hydrocyclone_top1

On Site Paiting


CycloneA


To Secure Complicity of Cyclone  to operation site, Please  DO Fullfill the FAQ Carefully for Engineering Design


Description

Unit

Figure

Specification of Cyclone Cluster



Quantity



Specification of Cyclone



Number of Cyclone



Number in Operation



Number in Standby



Feed Pressure



Feed Density



Overflow Density



Underflow Density



Particle Size of Cyclone Feed



Particle Size of Cyclone Overflow



Capacity (solids)



S.G. (ore)



S.G. (liquid)



Pulp density



 Pulp pH



Pulp Flowrate



Total feed to cyclone



Vortex finder ID



Circulating load



pipe2
