FK Series Plastic Pump

WRIKU’s FK Series Plastic Pump is designed by our own company, and is of single-stage, single suction, and cantilever type. Its rated performance conforms to JB/T8688.It features reasonable design, compact structure, reliable performance,smooth running, easy operation and maintenance. The materials of the wetted parts for the FK plastic pump are Fluorine mix crystal,PFA or UHMWPE; According to the using characteristics of centrifugal pump, the wetted parts, pump casing, impeller are manufactured with unique process of fluorine-lined steel in order to eliminate the defects of insufficient strength of full plastic casing. When strong acid medium with temperature lower than 180℃ is conveyed, this material can substitute 316L, Monel, Hastelloy alloy, and high alloy stainless steel.This pump can be widely used in the industries of petrochemical, metallurgy, pesticide, paper-making, environmental protection, Electro-planting, paint, chemical and electic power, etc.
Availability:
Contact Us

CHemical Pump9

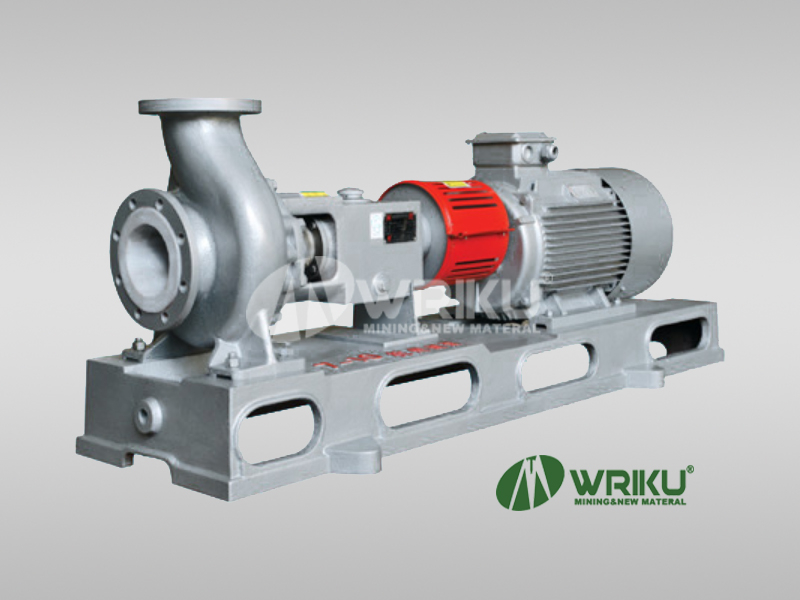

IFK plastic pump

WRIKU’s FK Series plastic pump is designed by our own company, and is of single-stage, singlesuction, and cantilever type. Its rated performance conforms to JB/T8688.It features reasonable design, compact structure, reliable performance,smooth running, easy operation and maintenance. The materials of the wetted parts for the FK plastic pump are Fluorine mix crystal,PFA or UHMWPE; According to the using characteristics of centrifugal pump, the wetted parts, pump casing, impeller are manufactured with unique process of fluorine-lined steel in order to eliminate the defects of insufficient strength of full plastic casing. When strong acid medium with temperature lower than 180℃ is conveyed, this material can substitute 316L, Monel, Hastelloy alloy, and high alloy stainless steel.This pump can be widely used in the industries of petrochemical, metallurgy, pesticide, paper-making, environmental  protection, Electro-planting, paint, chemical and electic power, etc.


CHemical Pump8


CHemical Pump9



IFK plastic pump

1. Chloe-alkali industry:

Lye, electrolyte, refined salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydroelectric acid, sulfuric acid;

2. Non-ferrous metal smelting:

Conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting; Iron and steel industry: electroplating,pickling,etc;

3. Acid production:

Hydroelectric acid, nitrate acid; sulfuric acid, phosphoric acid, acetic acid,etc;

4. Energy industry:

Methanol, ethylene  ether,etc;

5. Fermentation industry:

Intermediates,lactic acid, citric acid, food additives,beer, various ferment serum,etc.

6. Environmental protection: various sorts of medicament, acid-and alkali-containing

7. Other Waste water, etc.


Chemical Pump2


CHemical Pump9


Capacity: （3～1980）m3/h

Total head: （5～90）m

Working temperature:（-20～180）℃

Max working pressure:1.6MPa

conform to ISO5199、JB/T 8688 standard

API610 OH1

CHemical Pump7

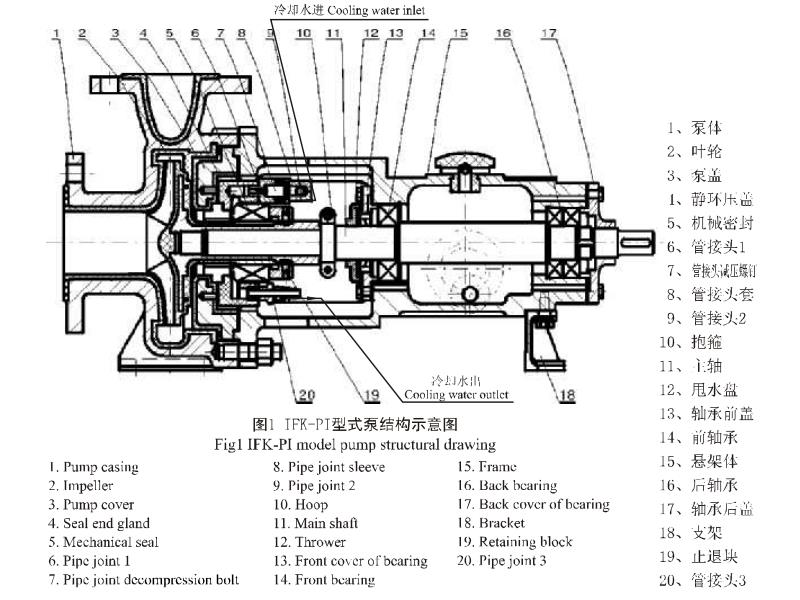

STRUCTURE1


CHemical Pump8


To Secure Complicity of Pump Supply to operation site, Please  DO Fullfill the FAQ Carefully for Engineering Design


Operating condition/Positions：

Pumped fluid：

Capacity: m3/h

Max Rated Min

1 Media

Max ratio Min rati

Total head: m

Max Rated Min

2 Media

Max ratio Min rati

Suction pressure: MPa

Max Rated Min

3 Media

Max ratio Min rati

Discharge pressure  MPa


NPSH required    m

Particle diameter

Operating conditions

Continuous Intermittent

Medium characteristics

Corrosion Abrasion

Spot conditions

Operation temp °C

Max Normal Min

Position

Density

Under operating temp



Indoor



With heating



With shield

Viscosity

Under operating temp

Outdoor

Without heating

Without shield

Under operating temp

Requirement of Cold-proof

Specific heat

Requirement of Damp-heat-proof

Concentration of chloride

PPM



Site condition

H2S Density



PPM

Concentration of H2S

Altitude

Flammable Explosive

Atmosphere pressure

Volatile characteristics

Easy Not easy

Max Min %

Boiling point

Ambient temp. Range

Crystallization temp

Abnormal conditions

Dust Smoking

Smelting point

Electrical classification

Class Division Group

Point of flammability

Power source

Volt Hz Phase



Slurry Condition

Temp °C Pressure MPa

Chloride concentration PPM





Critical pressure



MPa

Compressed air of instrument

Max / Min. Pressure /MPa


Other
