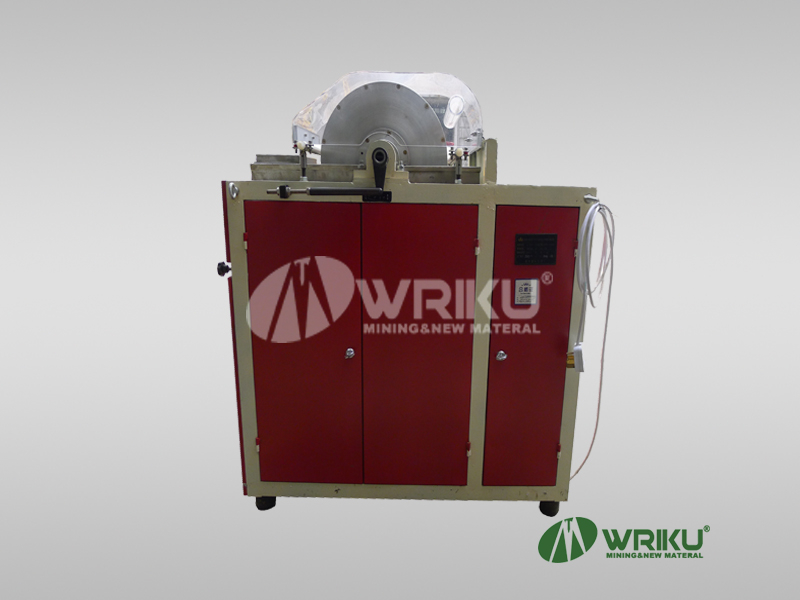

Multi-purpose Drum Weak Magnetic Separator
CRS-Φ400x240 multi-purpose drum weak magnetic separator is mainly used for mining engineering laboratories, intermediate test sites, concentrating plants and small concentrators to conduct small unit experiments, continuous experiments or production of magnetic ores such as magnetite and roasted magnetite when used. It can also be used in machinery, electronics, or other industrial sectors to recover powdered, fine needles or fine-grained ferromagnetic substances.
Item | Value | Unit |
Separation drum | Φ400×240 | mm |
Max. Raised magnetic field strength | | A/m |
(1250) | (Oe) |
Max. Material inlet Width | 2.5 | mm |
Throughput | 20-50 | Kg/h |
Drum Speed | 33 | R/min |
Exciting Current | 0-5 | A |
Exciting Rated power | 875 | VA |
Exciting coll Rated temperature | <60 | ℃ |
motoMotor | Type | AO2 7124 B5 |
|
Power | 370 | w |
Outline Size | 1068×636×982 | mm |
Weight | 200 | kg |
