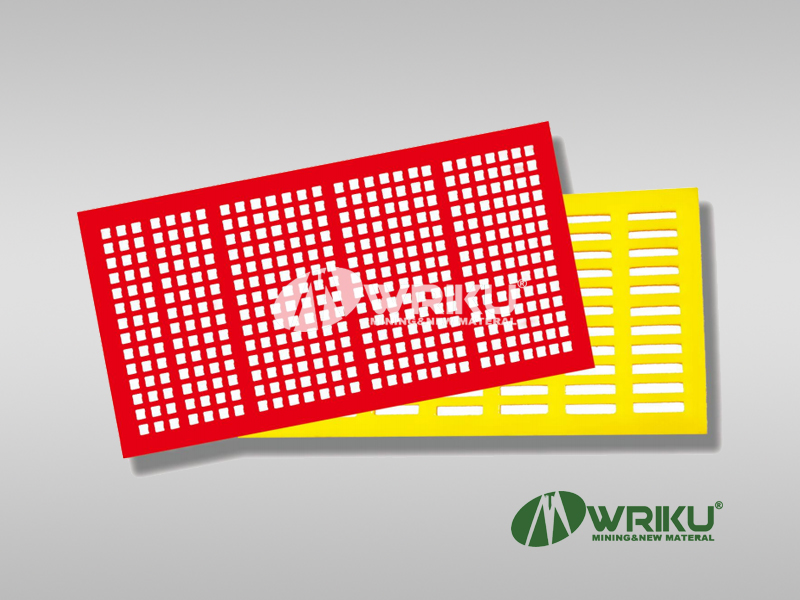

Plolyurethane Modular Panel

WRIKU's Polyurethane modular screen meshes and sieving panels are widely used in the classification of vibrating screen in mining, metallurgy, coal, coke, coal washing, petroleum, chemical industry and other industries.
Availability:
Contact Us

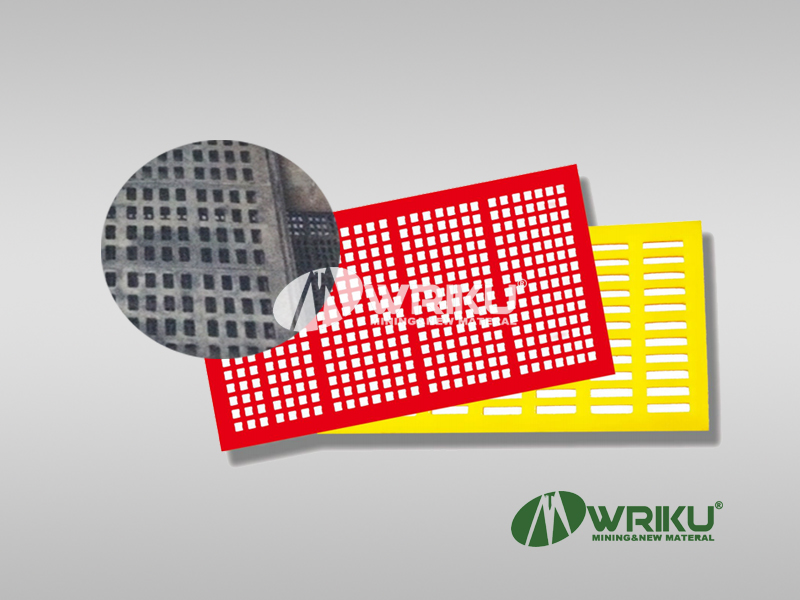

POLYURETHANE MODULAR SCREEN PANE2

Plolyurethane Modular Panel

WRIKU's Polyurethane modular screen meshes and  sieving panels are widely used in the classification of vibrating screen in mining, metallurgy, coal, coke, coal washing, petroleum, chemical industry and other industries.


POLYURETHANE MODULAR SCREEN PANE5


POLYURETHANE MODULAR SCREEN PANE4

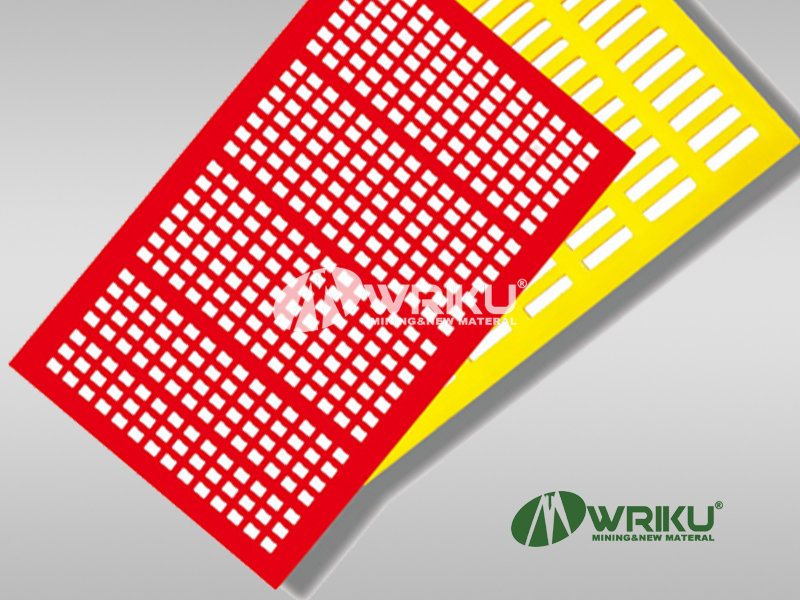

POLYURETHANE MODULAR SCREEN PANE12

Feature


• Super wear resistance, light weight and high separation efficiency.

•  Non-plugging, anti-friction, anti-impact, anti-tearing, long using life, low noise,

•  Prety easy installation;

• Small maintenance workload, low cost and improving the high production efficiency.

• It is a new generation replacement of the steel platepunching screen meshf steel wire woven screen mesh, stainless steel screen mesh and rubber screen mesh

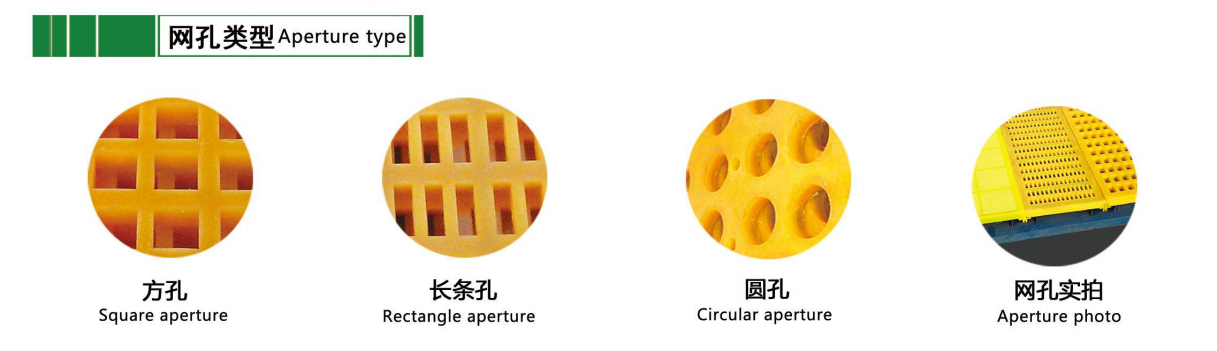

Hole Models

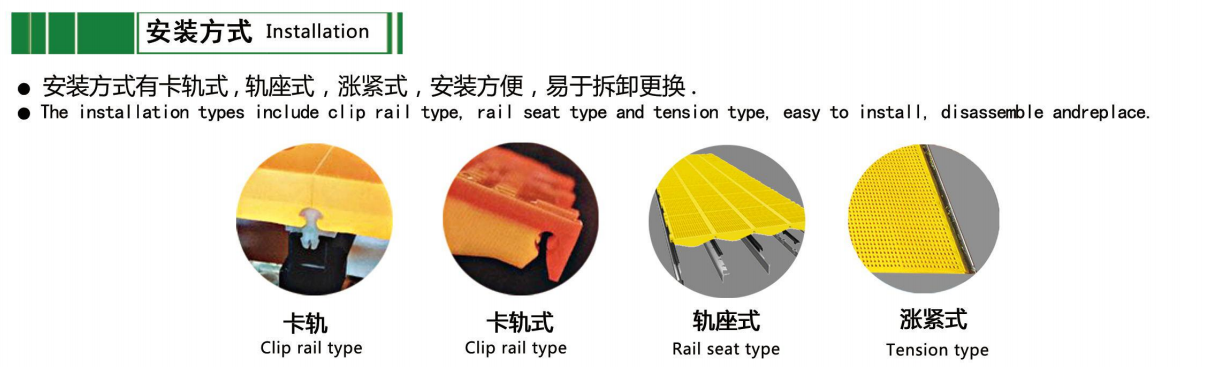

Insallation Models

POLYURETHANE MODULAR SCREEN PANE4


  1. The screen pane Is are bIanked out and re i nforced over the support bar areas to prevent from wearing and ensure t-heinstaIlation.

  2.  The impact areas are bIanked out and made thicker.

  3. There are the re i nforcement str i ps on the screen pane Is to ensure the correct tension and keep the shape u-nder the load;

  4. The edges of screen pane Is have been mach i ned and reinforced, which can make a perfect seal between screen panels.

  5. Bolt down holes are des i gned in appropriate pI aces to ensure the accurate center location.

  6. The slots of the screen pane Is are tapered i n design, no bl inding and high efficiency.

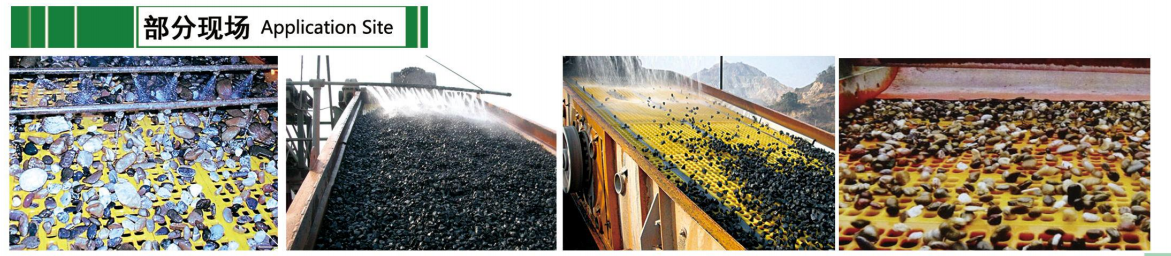

Application Case Site
