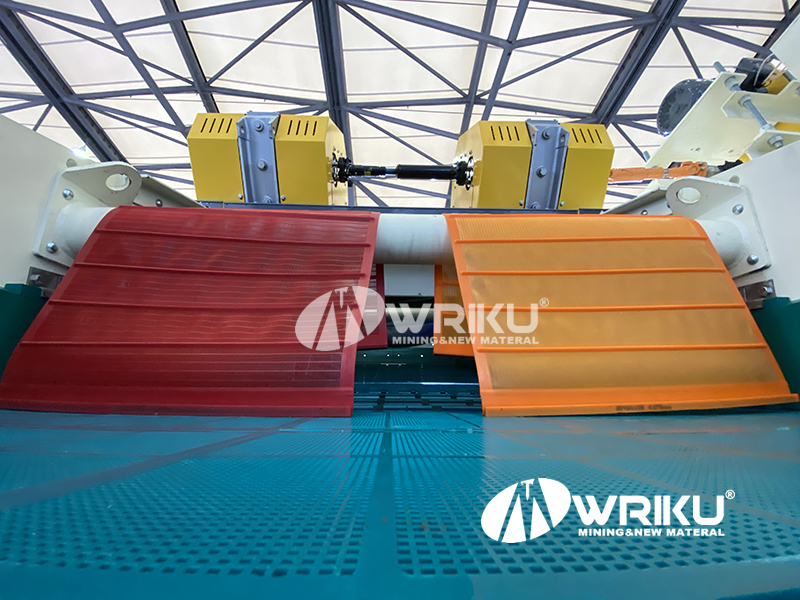

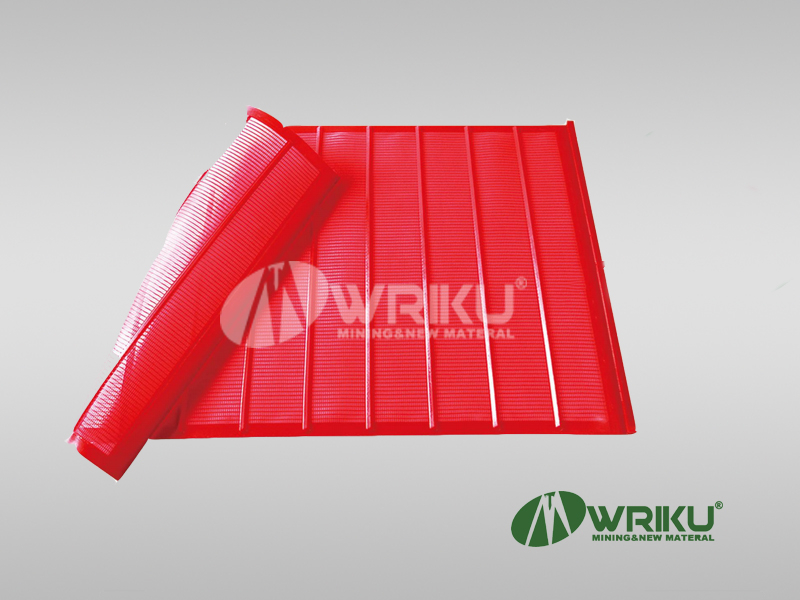

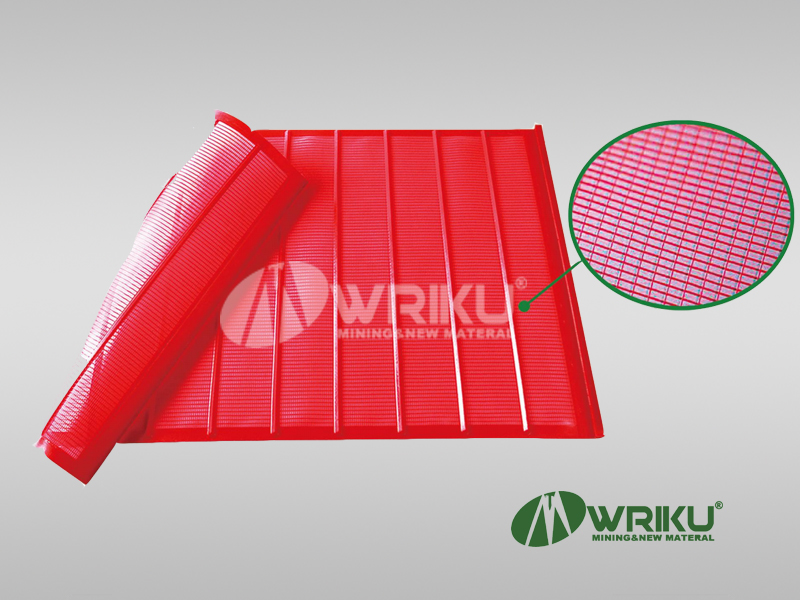

Polyurethane Fine Panel

Features

• Superior capacity and performance with high open area of 32%-42%.

• The fine screen sieve is manufactured as a whole with one-time forming processing, reinforced with fiber, the tensile strength and useful life are improved, as a result, the craze is been avoided.

• The screen slot is designed with taper shape, which is not easy to block, at the same time, the materials are e-asy to get through.

• The screen mesh is directly tightened and fixed on the frame, the screen wires are tight and the screen slots a-re not deformed.

• The screening and grading are accurate and the service life is prolonged.

• Imported polyurethane raw material, unique material formula, improving elasticity and flexibili-ty, wear resistance and corrosion resistance

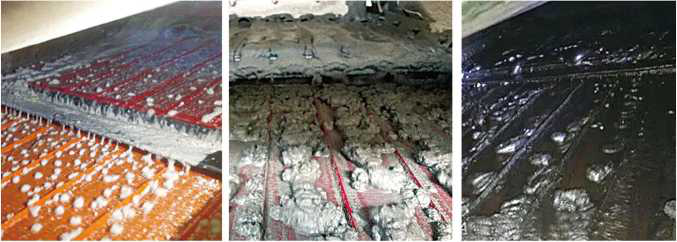

Application on Zinc/Coal/Tin/Copper Tailing Concentrator Plant

Core Technology

1.Achieved two Invention Patents .

2.Fiber reinforced polyurethane fine screen mesh and its molding method.

3.Achieved Golden Prize for the 18th China Invention Exposition.

Advantages

● High separation efficiency, more than 80% on average.

● Small unit area and large processing capacity.

● The fine screen mesh is non-blinding and long using life, usually, the life achieves over 6 months.

● The screen frames are sprayed with polyurea,the screen using life can be over 10 years, the overflow parts such as oversize and undersize hoppers are lined with high wear resistant rubber or polyurea materials.

● WRIKU@FY Slurry-divider uses the split type cylinder-shaped design, the slurry enters into the inner from the center and flows through the uniformly distributed chambers inside and outside the cylinders.

● Rubber suspension support springs are installed with good shock absorption effect, screen frames are almost no vibration,ensuring the stability and reliability of long-term operation of the equipment.
