F Series Foam Pump

WRIKU F Series foam slurry pump or froth slurry pump is mainly applied to transport foam slurry. During this process, it can partly remove foams. The transportation capacity of rubber lined slurry pump is much higher than that of other models. Besides, it does not need shaft seal or seal water. Due to this, our froth slurry pump has become the ideal pump for many concentrating mills and other industrial uses.
Availability:
Contact Us

SLURRY Pump-3

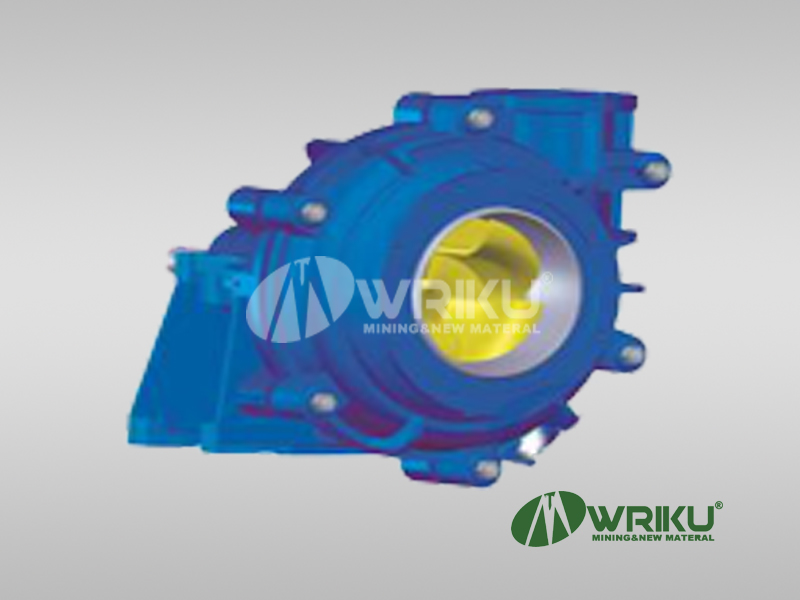

F Series Pump1

Foam Pump

WRIKU F foam slurry pump or froth slurry pump is mainly applied to transport foam slurry. During this process, it can partly remove foams. The transportation capacity of rubber lined slurry pump is much higher than that of other models. Besides, it does not need shaft seal or seal water. Due to this, our froth slurry pump has become the ideal pump for many concentrating mills and other industrial uses. WRIKU F series slurry pumps are equivalent to Warman F series pumps.

SLURRY PUMP3

SLURRY Pump-2

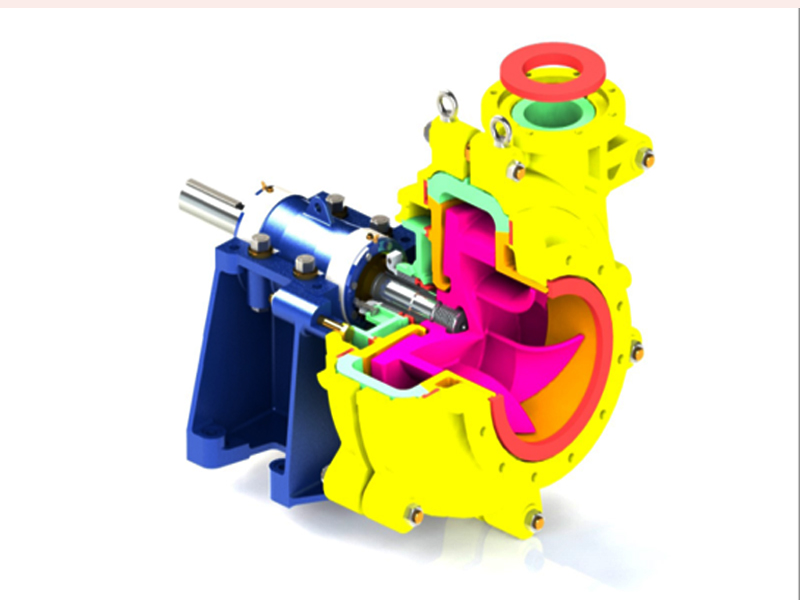

F Series Pump


Advantages and Features


1.Foam slurry pump makes use of multistage tandem to ensure long-distance transportation.

2.The adoption of high wearproof rubber can lengthen the service life of wetted parts. For example, rubber front plate and impeller can be used respectively for 205 days and 120 days.

3..Rubber lined slurry pump employs many designs, such as flow cross section design, uniform section velocity design, optimized parts structure design, etc.

4.The wearing parts of foam slurry pump are well designed so as to reduce abrasion.

7.Rubber lined slurry pump has good performance which is suitable for different requirements of working conditions.

SLURRY PUMP3

SLURRY Pump-2

Model

FLOWRATE Q(m3/h)

HEAD H(m)

SPEED n(r/min)

Drive Arrangement

BladesNo.

Inlet Diameter(mm)

OutletDiameter(mm)

Max.Diameter(mm)

50F-MR

20.2-61

13-26.2

1300-1800

CV/CRV/ZVZ

4

135

50

225

75F-MR

35.5-120

9.8-24

1000-1500

CV/CRV/ZVZ

4

180

75

260

100F-MR

76.4-250

11.1-30

700-1100

CV/CRV/ZVZ

4

280

100

390

150F-MR

210-530

17.4-40

600-800

CV/CRV/ZVZ

4

350

150

560
