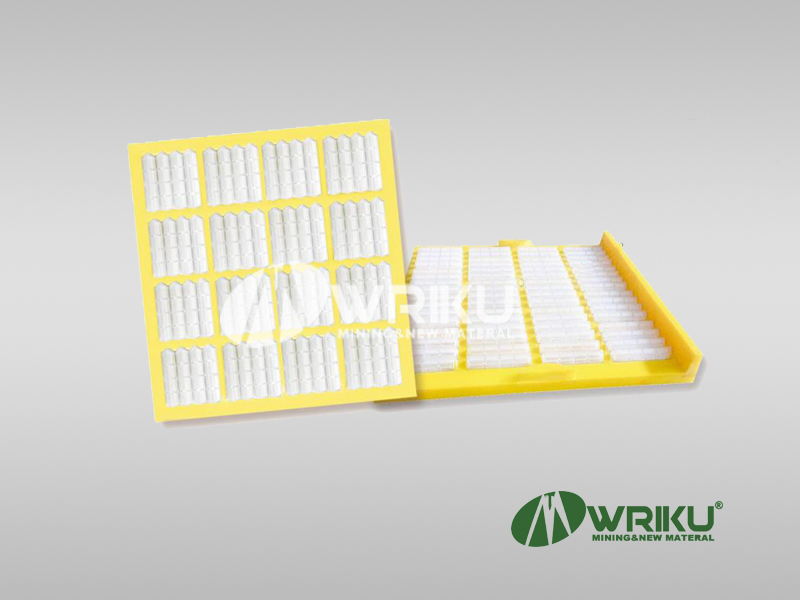

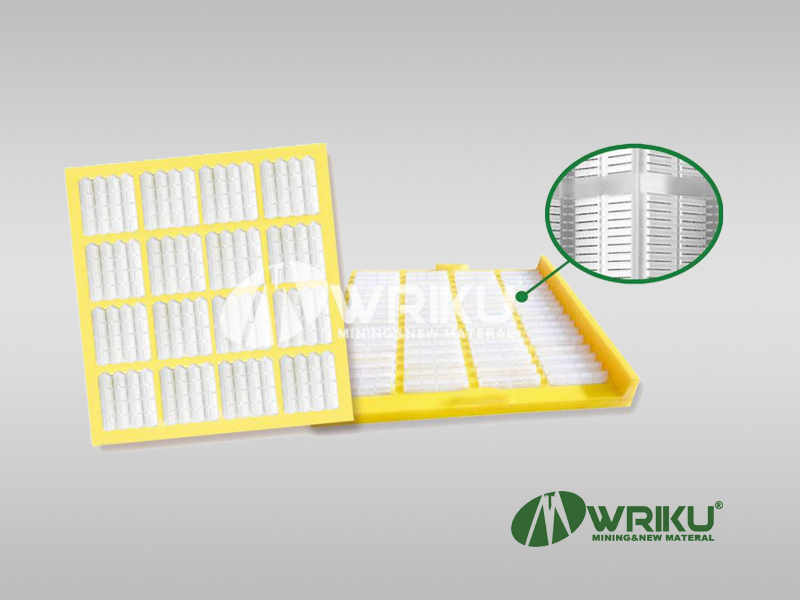

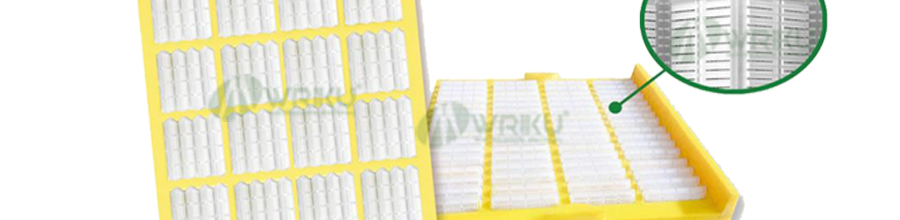

Hump-Shape Stereoscopic Panel

Feature

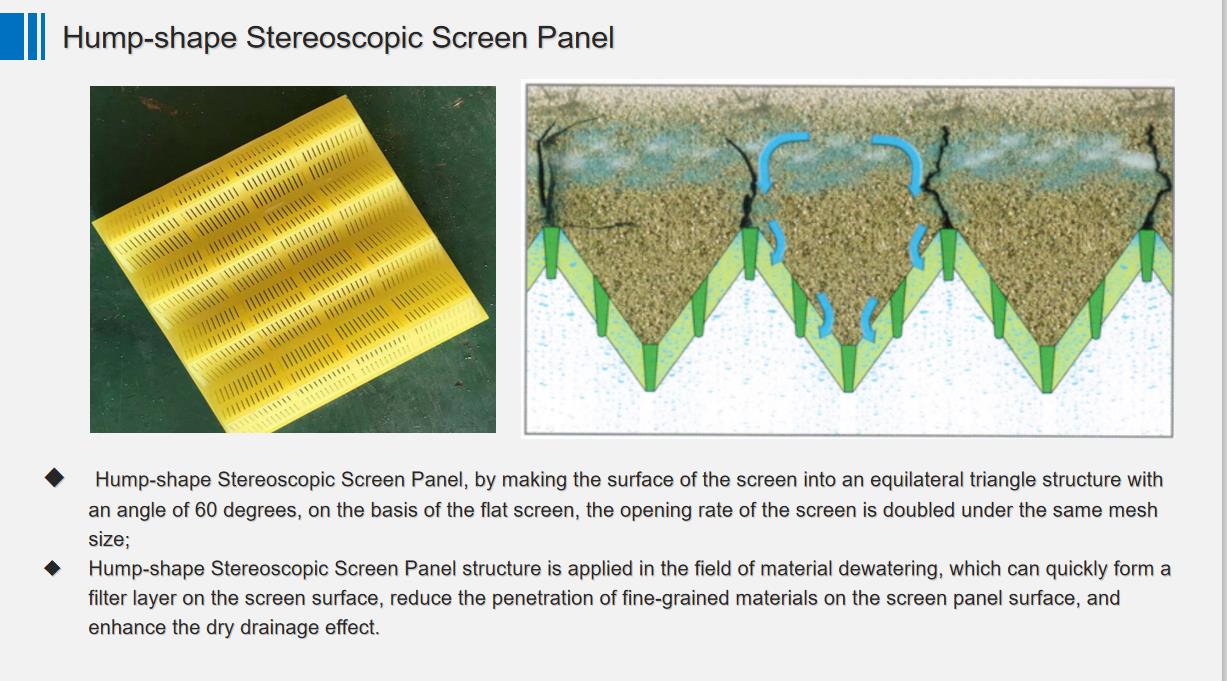

High opening rate, for the same screen area, the screen panel is designed as a non-plane "ridge" shape, which increases the screening area and doubles the separation efficiency.

• Compared with the original screen panels, the hump-shape screen panels double the water filtration performance, and effectively dehydrates and degrades.

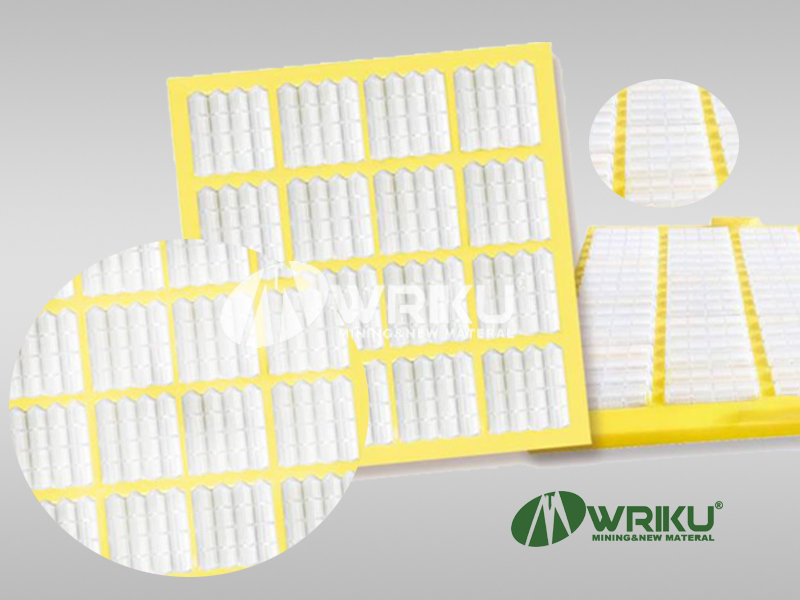

• The screen holes on the non-plane hump-shape screen surface are increased, which improves the processing capacity of the screen machine. The meshes are implanted into the surface of "ridge" a-nd distributed in the whole screen panel surface.

• If the "ridge" of the hump net is flattened, the width of the screen will increase a lot. Under the same length and width condition, the screen area with "ridge" increases by 50%.

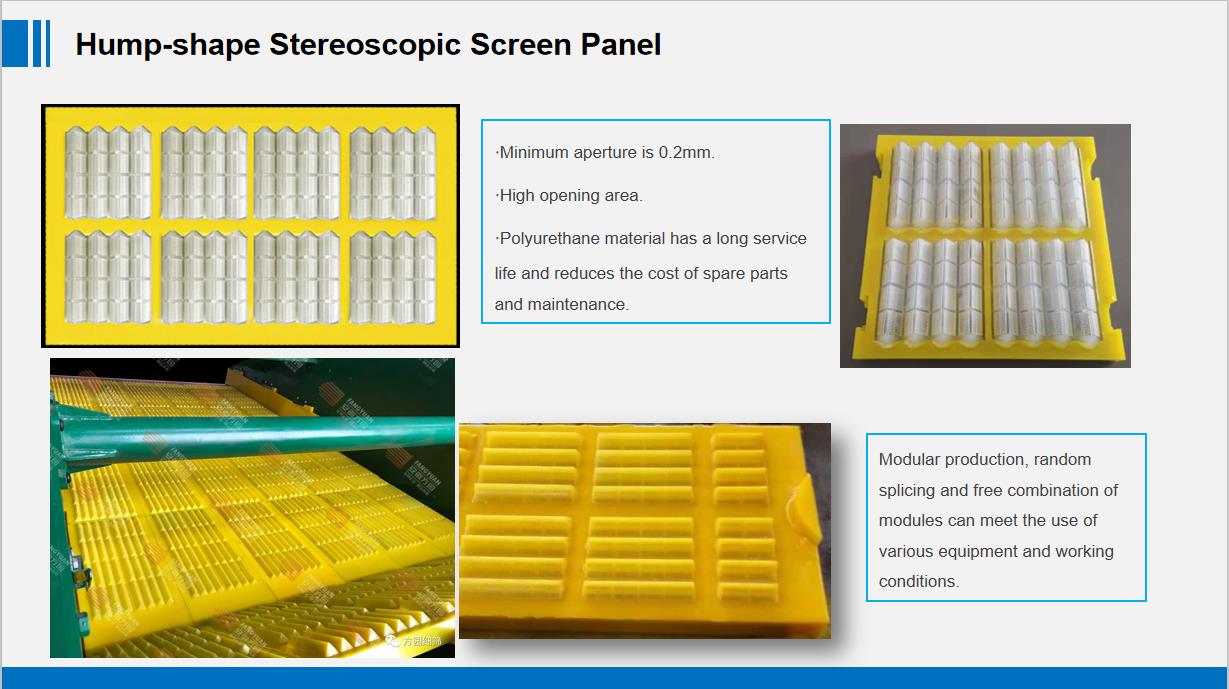

• The hump-shape screen panel is formed by injection molding to ensure the surface is neat and the mesh is even. The Numerical Control injection molding machines are used in the production proce-ssto ensure that the whole process is carried out under the best production conditions. The screen anels produced by this process have uniform mesh size and wear resistance.
