V Series VERTICAL PUMP

WRIKU's V series Vertical double suction slurry pump is solid and anti-corrosive. It is suitable for transporting abrasive or corrosive slurries. The pump is a submersible slurry pump so it is usually put into a pool or a pit when working. Wear resistant sludge pump is so efficient that its efficiency can reach 59.14%. Its lifting height ranges from 12.10 m to 16.2 m (as showed in the table). Our vertical double suction slurry pump is broadly applied in industries including metallurgy, mining, coal and construction materials. WRIKU'S V series slurry pumps are equivalent to Warman SP series pumps.
Availability:
Contact Us

WRIKU's V series  Vertical double suction slurry pump is solid and anti-corrosive. It is suitable for transporting abrasive or corrosive slurries. The pump is a submersible slurry pump so it is usually put into a pool or a pit when working. Wear resistant sludge pump is so efficient that its efficiency can reach 59.14%. Its lifting height ranges from 12.10 m to 16.2 m (as showed in the table). Our vertical double suction slurry pump is broadly applied in industries including metallurgy, mining, coal and construction materials.  WRIKU'S V series slurry pumps are equivalent to Warman SP series pumps.



Advantages and Features

1.Multistage tandem technology makes vertical double suction slurry pump available for long-distance transportation.

2.Wetted parts enjoy long service life and have various types to meet the demand of different working conditions.

3.Wear resistant sludge pump has features of high performance cost ratio, unique anti-wear and high efficiency.

4.Vertical double suction slurry pump is easy to maintain and repair.

5.High wear resisting rubber is able to absorb noise and vibration.

6.The rubber is light and takes little time to change.


Model

FLOWRATE Q(m3/h)

HEAD H(m)

SPEED n(r/min)

Drive Arrangement

BladesNo.

Inlet Diameter(mm)

OutletDiameter(mm)

Max.Diameter(mm)

40V-M

7.4-43

4.3-27.4

1000-2200

BD,DC

5

80

40

195

40V-R

7.3-38

4.1-27

1000-2200

BD,DC

5

80

40

195

65V-M

20.1-100

5.2-30.8

700-1500

BD,DC

5

120

65

290

65V-R

21-98

5.4-31.1

700-1500

BD,DC

5

120

65

290

100V-M

42-259.2

5.2-36

500-1200

BD,DC

5

175

100

390

100V-R

43.2-259.2

7.7-37

600-1200

BD,DC

5

175

100

390

150V-M

117-500

7.3-35.7

500-1000

BD,DC

5

240

150

480

150V-R

90-500

6.8-35

500-1000

BD,DC

5

240

150

480

200V-M

175.7-700

6.7-27.5

400-740

BD,DC

5

250

200

550

250V-M

251.4-900

8.2-29

400-700

BD,DC

5

260

250

605

300V-M

369.2-1200

8.0-28

400-650

BD,DC

5

300

300

641

Note: WRIKU observe the right wihout notice on any technical amendment, this list is for reference Purpe only. For further inquiry please contact info@wriku.com.


WRIKU'S V series vertical double suction slurry pumps (spilt sumps, housing-keeping water cells, froth slurries)

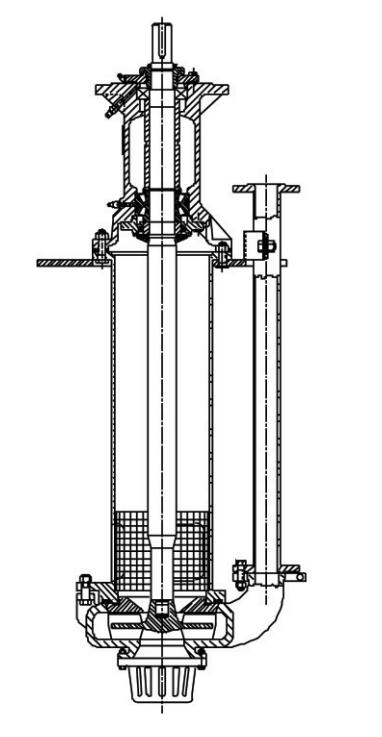

V Series Pump structure
