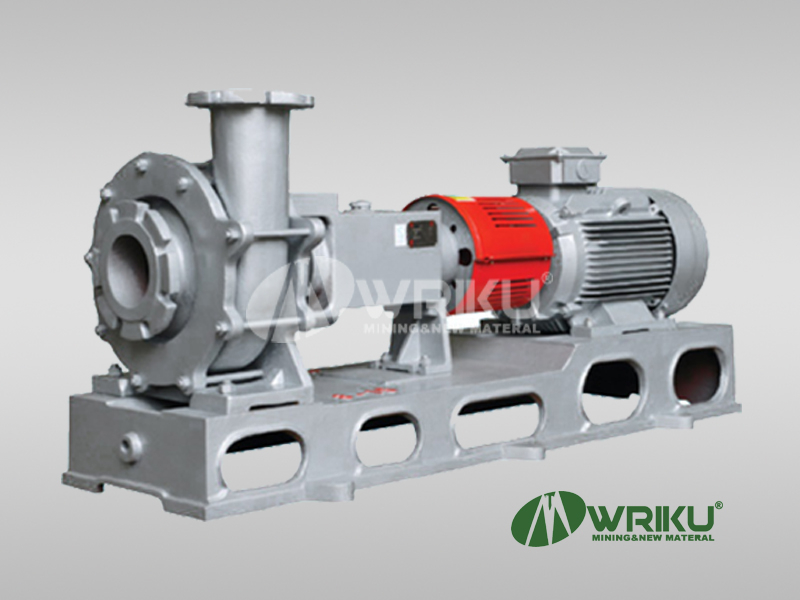

MT Series Light Duty Slurry Pump

WRIKU‘s MT light-duty slurry pump is designed for bentonite industry, abrasive and grinding tools manufacture, desulfation of power plant and conveyance of alumina ore slurry in aluminum plant, and is the ideal device matched with filter press and the optimal choice for conveying medium containing hard sundries. MT is simple in maintenance, highly resistant against abrasion and corrosion, economical in operation and reliable in sealing. It is suitable for conveyance of bentonite, carbide slag,lime milk, coal ash, gypsum slurry and sand- bearing crude oil.
Availability:
Contact Us

CHemical Pump9

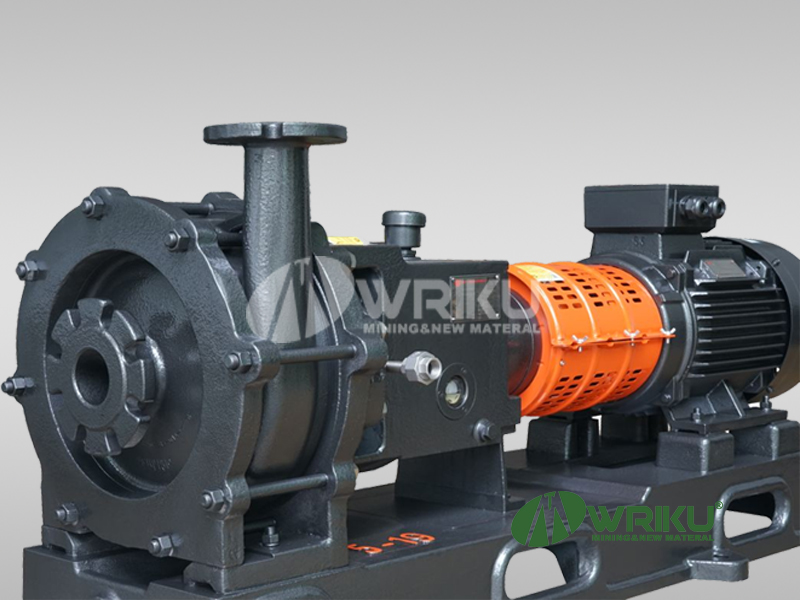

MT Light Duty Pump

WRIKU‘s MT light-duty slurry pump is designed for bentonite industry, abrasive and grinding tools manufacture, desulfation of power plant and conveyance of alumina ore slurry in aluminum plant, and is the ideal device matched with filter press and the optimal choice for conveying medium containing hard sundries. MT is simple in maintenance, highly resistant against abrasion and corrosion, economical in operation and reliable in sealing. It is suitable for conveyance of bentonite, carbide slag,lime milk, coal ash, gypsum slurry and sand- bearing crude oil.



CHemical Pump7

CHemical Pump9


lSoda and inorganic salts: lime milk, carbide slag, and salt mud

l Metallurgy: ore slurry for zinc, aluminium, copper, vanadium production.

lPetrochemical industry: sand-bearing crude oil.

l  Paper-making industry: lime milk.

lFermentation industry: various fermenting liquid.

l   Environmental protection in power plant: coal ash, gypsum slurry.


CHemical Pump7


CHemical Pump9

  • Capacity:（2～ 1000）m3/h ;

  • Total head:（8 ～ 100） m;

  • Working temperature:（-20 ～180）℃;

  • Max working pressure:1.6MPa;

  • Conform to IS05199、IS02858 standard API610 OH1

  • Closed （for corrosive or hard media），semi-open（for large particle or long fiber），8％ paper pulp


CHemical Pump7

CHemical Pump9

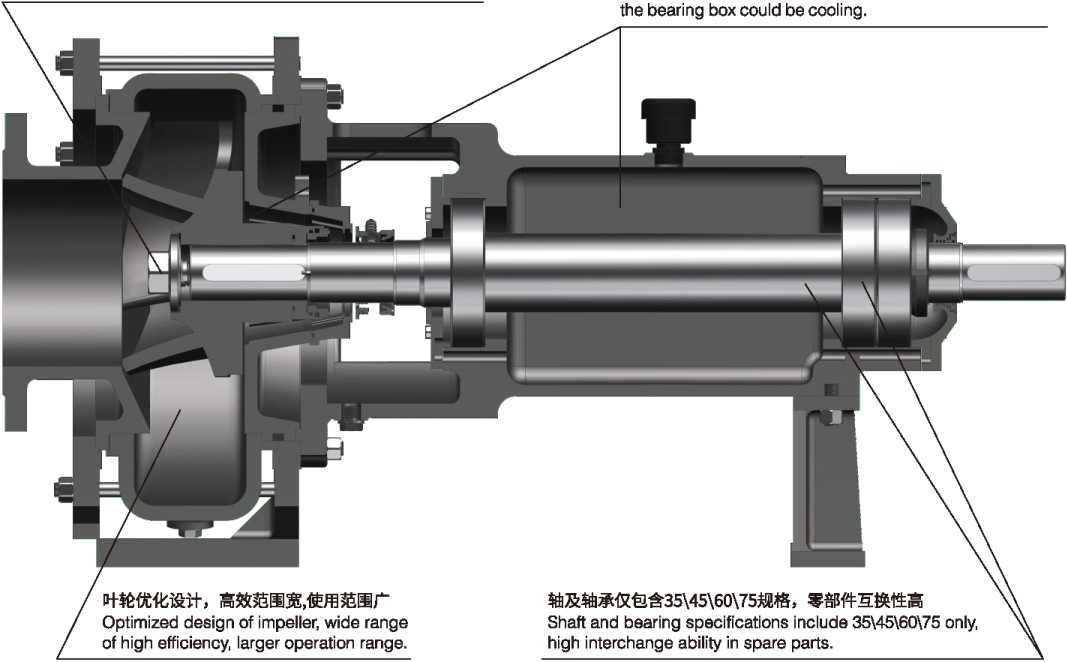

  • Optimization design impeller, wide range of efficiency and application, improve the general use of pump.

  • Back vane design, reduce axial force, keep the solid in the medium from sealing cavity, improve the service life of mechanical seal.

  • Bidirectional balanced mounted conical cavity seal, no need to adjust the amount of compression, improve flushing, cooling, lubrication conditions, extend the service life of mechanical seal.

  • Heating or cooling of mechanical seal could be variable, wide adaptability, improve the general use of pump.

  • Special designed self-locking impeller nut, eliminate risk of release improve reliability.

  • Thickened heavy duty shaft, lengthen bearing space to improve the operation stability, reduce maintence and operating cost;

  • Large space bearing box and oil tank, improve the overall rigidity of the pump, no need for external oil cup, reduce the temperature rise of lubrication oil, extend service life of bearing.

  • Compound labyrinth bearing isolator, solve the problem of oil leakage, in the bearing box, and prevent dust, water etc. from entering, improve the service life and make the operation more reliable.

  • Spiral pump outlet can be on the top or side for choose, convenient for installation.

  • Straight tapered suction chamber, uniform velocity field, small hydraulic loss, reduce head loss and improve efficiency.

CHemical Pump7

CHemical Pump9



Please kindly provide the following Information before we start a model selection and design


 Operating conditions Pumped fluid
Capacity              m3/h Max       Rated      Min 1 Media ______________ Max ratio        Min ratio        %
Total head               m Max       Rated      Min 2 Media ______________ Max ratio        Min ratio        %
Suction pressure      MPa Max       Rated      Min 3 Media ______________ Max ratio        Min ratio        %
Discharge pressure MPa Max       Rated      Min
Content (humidity)           wt %
NPSH required          m

Particle diameter              mm
Operating conditions Continuous        Intermittent Medium characteristics Corrosion       Abrasion
Spot conditions Operation temp         °C Max      Normal     Min
Position Density Under operating temp      kg/m3
 Indoor  With heating  With shield

Viscosity Under operating temp      mPa.s
Outdoor Without heating Without shield
Under operating temp     MPa(A)
 Requirement of Cold-proof Specific heat
 Requirement of Damp-heat-proof  Concentration of chloride PPM
 Site condition H2S Density  PPM
Concentration of H2S
Altitude

Flammable Explosive Toxic
Atmosphere pressure
Volatile characteristics Easy        Not easy

Max      Min              % Boiling point
Ambient temp. Range
Crystallization temp
Abnormal conditions Dust       Smoking Smelting point
Electrical classification Class      Division     Group Point of flammability
Power source Volt        Hz          Phase

Slurry Condition Temp       °C Pressure MPa

Chloride concentration         PPM



 Critical pressure MPa
Compressed air of instrument Max / Min. Pressure          /MPa


Other
