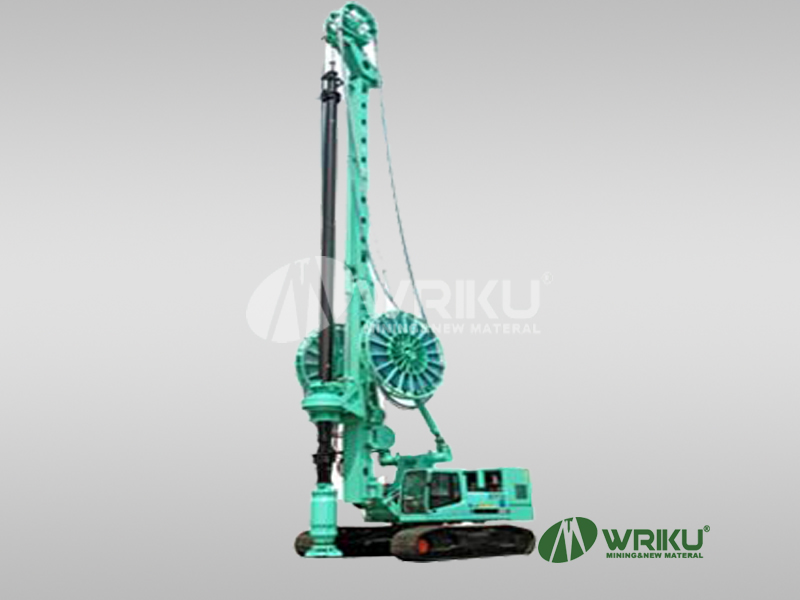

D25H Hydrauilc Pneumatically Actuated Rig

25H hydrauilc pneumatically actuated rig is one new type pipe-foundation construction facility.It is mainly for reliably driling original cook .This machine centralizes the technical merits of the rotary driling rig, the air-actuated down-holes and the hydraulic diaphragm wall grab.
Availability:
Contact Us


微信图片_20210701171203ss

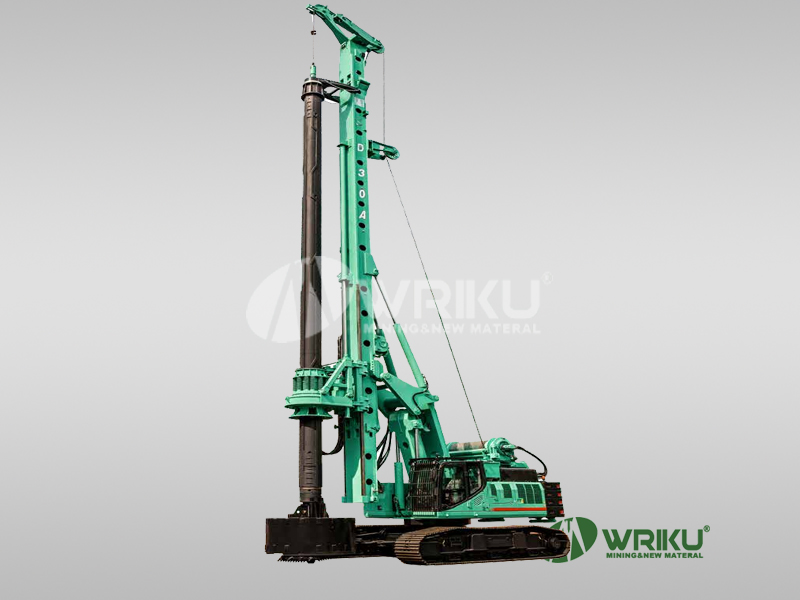

D25H hydrauilD30Rotary Drilling rigc Rotary Drilling Rig

D25H hydrauilc pneumatically actuated rig is one new type pipe-foundation construction facility.It is mainly for reliably driling original cook .This machine centralizes the technical merits of the rotary driling rig, the air-actuated down-holes and the hydraulic diaphragm wall grab.This machine structure with many superior processing properties is to drive the down-hole hammer impact the rock.aim to smash the rock party and cut the rock to pleces, discharged by air-lift in reverse circulation way and air direct circulation way. It can realize the fast continuous driling function to the big cross-section original rock. The host machine can conveniently exchange the job practices between the driling,the impactng and the driling with the CFA.

2017-03-28


微信图片_20210701172040SS





type 25H
Height of tower(mm) 23860
Weight of base machine(without driling tools)(t)
 		 70.5
t  12
Cylinder stroke (mm)
 		  5700
Cylinder pressure force (kN)
 		 220
Cylinder pulling force(kN)
 		 220
Main winch single line pull(kN)
 		  220
Main winch Rope diameter(mm)
 		  26
Main winch line speed max.(m/min)
 		 60
Auxiliary winch single line pull(kN)
 		  75
Auxiliary winch rope diameter (mm)
 		 18
Auxiliary winch line speed max.(m/min)


4

5
