Hydraulic Drill Rig

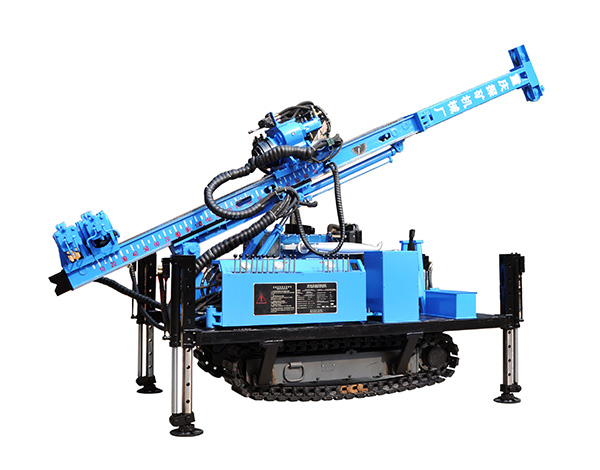

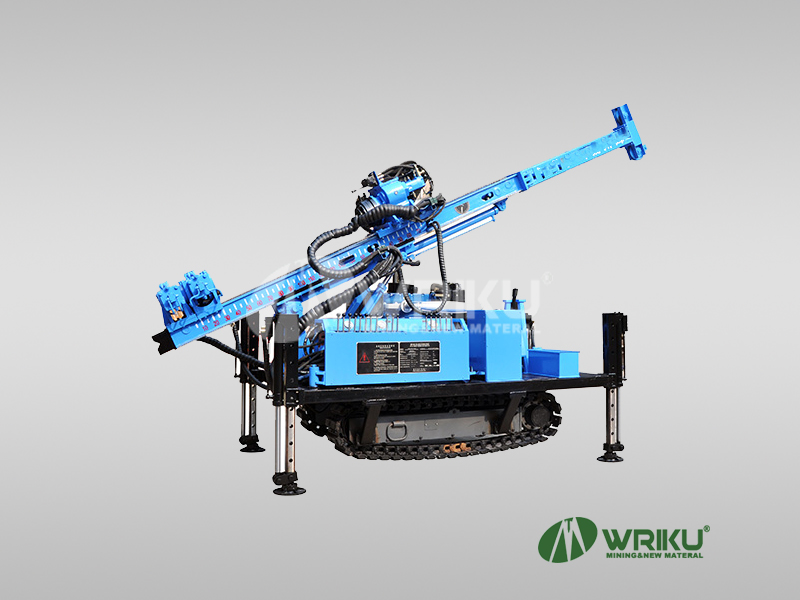

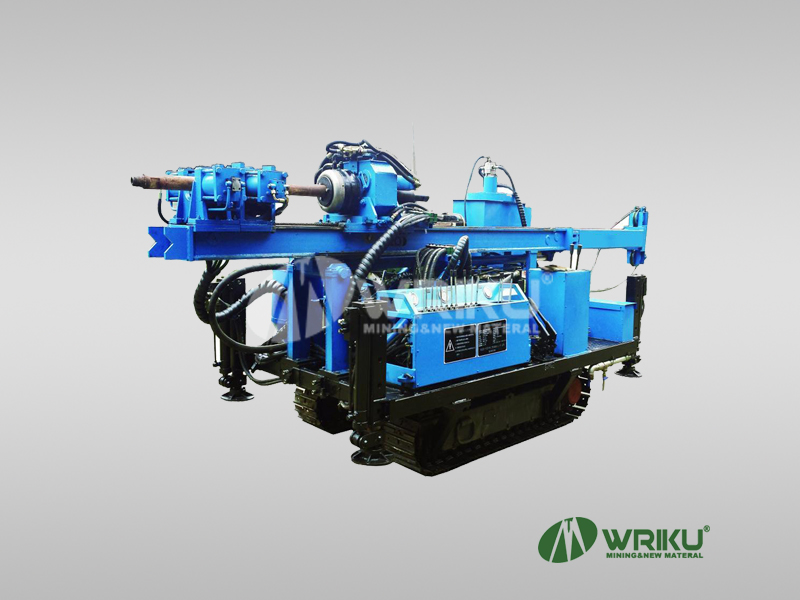

TRK-100A type and diesel-driven multi-purpose Hydraulic drill rig designed by us subject to the projects that required diversity, frequent moving and self-supplied power. For instance, field surveying process for highways and railways. Beside satisfying the needs of general construction survey, it can be widely used in various construction fields such as urban construction, hydropower power stations, tunnels and so on. The drilling depth is 100m.
Hydraulic Drill Rig
TRK-100A type and diesel-driven multi-purpose Hydraulic drill rig designed by us subject to the projects that required diversity, frequent moving and self-supplied power. For instance, field surveying process for highways and railways. Beside satisfying the needs of general construction survey, it can be widely used in various construction fields such as urban construction, hydropower power stations, tunnels and so on. The drilling depth is 100m.
Features
1. The rig is installed with crawler chassis, driven by diesel engine, and integrates drilling rig, drilling tower, winch and other related drilling institutions into one. User procurement procedure is simple, easy to use.
2. Wide range of drilling speed, convenient for users to use diamond, alloy, and DTH hammer drilling technology. In particular, the drilling rig is equipped with impact and heel-pipe coring tool, which solves the problem of exploration and coring of overburden layer and greatly improves the exploration efficiency.
3, the drill adopts the full hydraulic chuck through hole structure, chuck gripper with unscrew the drill pipe. Improve labor efficiency and reduce labor intensity.
4. The factory drill is equipped with 2000 long 63X70 six-way active drill pipe, with 2500 stroke of power head, the longest feeding distance can reach 3500mm, which improves the drilling efficiency.
5. The power head is designed with a transverse guide rail mechanism to open the hole and cooperate with the upper and lower drill pipe of the 3 ton hoist to reduce the time of upper and lower drill pipe and improve labor productivity.
6, drilling system design for two independent systems, in addition to all used for drilling operations, but also to drive such as water pump, vacuum cleaner and other working institutions.
Features
1. The rig is installed with crawler chassis, driven by diesel engine, and integrates drilling rig, drilling tower, winch and other related drilling institutions into one. User procurement procedure is simple, easy to use.
2. Wide range of drilling speed, convenient for users to use diamond, alloy, and DTH hammer drilling technology. In particular, the drilling rig is equipped with impact and heel-pipe coring tool, which solves the problem of exploration and coring of overburden layer and greatly improves the exploration efficiency.
3, the drill adopts the full hydraulic chuck through hole structure, chuck gripper with unscrew the drill pipe. Improve labor efficiency and reduce labor intensity.
4. The factory drill is equipped with 2000 long 63X70 six-way active drill pipe, with 2500 stroke of power head, the longest feeding distance can reach 3500mm, which improves the drilling efficiency.
5. The power head is designed with a transverse guide rail mechanism to open the hole and cooperate with the upper and lower drill pipe of the 3 ton hoist to reduce the time of upper and lower drill pipe and improve labor productivity.
6, drilling system design for two independent systems, in addition to all used for drilling operations, but also to drive such as water pump, vacuum cleaner and other working institutions.
1. Drilling depth (m) 100
2. Open hole diameter (mm) Φ 150
3. The final hole diameter (mm) Φ 75
4. The drill pipe specifications (mm) Φ 73 x1500 flat pipe outside - 2000
5. (DHS) 90 hole Angle
6. Chuck hole Φ 80 (mm)
7. Power head speed (r/min) double pump: 450; 220; 130; 65. Single pump: 225; 110; 65; 35
8. Maximum torque of power head (N.M) 4500
9. Single pass (mm) 2500+1000=3500
10. Propulsion/lifting force (kN) 0-45/60
11. Feed speed (m/s) 0-0.42
12. Hoisting capacity of winch (Kg) 3000
13. Hoist wire rope diameter (mm) Φ 13
14. Power of engine (KW) 56 (4105 diesel engine); 36 (4100 diesel engine)
15. The drill is suitable for diamond, alloy and DTH hammer.
16. Crawler climbing Angle (°) 25
17. Tracking speed is Km/h 1
18. Drilling rig dimensions (mm) (L x W x H) 5500x1900x2000
19. Rig weight (kg) 4200Kg
1. Drilling depth (m) 100
2. Open hole diameter (mm) Φ 150
3. The final hole diameter (mm) Φ 75
4. The drill pipe specifications (mm) Φ 73 x1500 flat pipe outside - 2000
5. (DHS) 90 hole Angle
6. Chuck hole Φ 80 (mm)
7. Power head speed (r/min) double pump: 450; 220; 130; 65. Single pump: 225; 110; 65; 35
8. Maximum torque of power head (N.M) 4500
9. Single pass (mm) 2500+1000=3500
10. Propulsion/lifting force (kN) 0-45/60
11. Feed speed (m/s) 0-0.42
12. Hoisting capacity of winch (Kg) 3000
13. Hoist wire rope diameter (mm) Φ 13
14. Power of engine (KW) 56 (4105 diesel engine); 36 (4100 diesel engine)
15. The drill is suitable for diamond, alloy and DTH hammer.
16. Crawler climbing Angle (°) 25
17. Tracking speed is Km/h 1
18. Drilling rig dimensions (mm) (L x W x H) 5500x1900x2000
19. Rig weight (kg) 4200Kg
