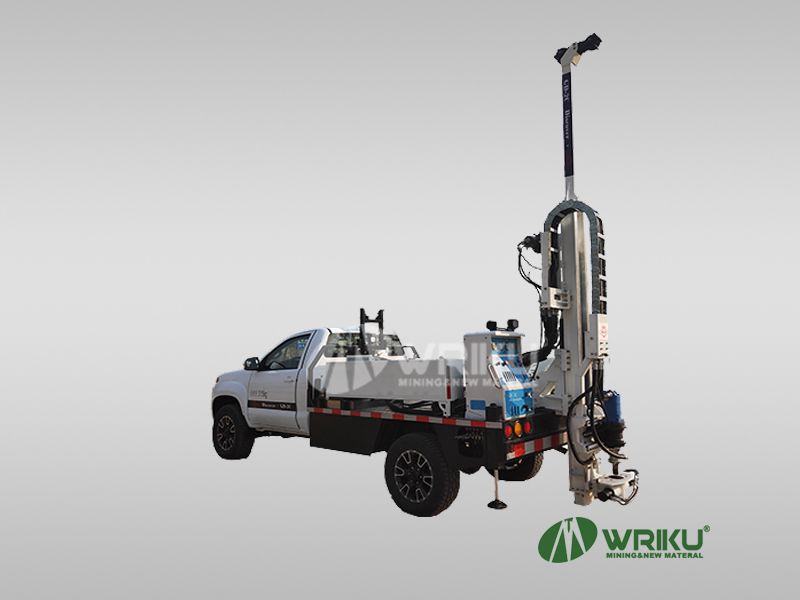

Pickup Discover Multi-Purpose Drill Rig-TK-2L

WRIKU’S TK-2L pickup discover multi-purpose Geo-investigation drill rig is with off-road pickup, hydraulic transmission，top-driven system and SPT system. TK-2L is applied to geological exploration, engineering investigation, shallow water wells, gas exploration and soil investigation.
Availability:
Contact Us

banner

WRIKU’S TK-2L pickup discover multi-purpose Geo-investigation drill rig is with off-road pickup, hydraulic transmission，top-driven system and SPT system. TK-2L is applied to geological exploration, engineering investigation, shallow water wells, gas exploration and soil investigation.


Fearture

  • Wire-line Core Drilling NC size: 400m.

  • Geo technical Investigation for 110mm (4.3 inch) size hole: 200m.

  • Full range of multi-purpose drilling technics: Coring drilling, borehole drilling, civil construction engineering, site investigation (Water, soil & rock).

  • China Made 4×4  truck, ISUZE diesel engine, powerful and comfortable for users.

  • Off-road pick-up chassis, power takeoff (PTO), hydraulic transmission, top drive.


TK-2L Pick-Up Discover Multi-Purpose Geo-Investigation Drill Rig

Pickup four-wheel drive diesel vehicle

Geological Engineering investigation rig

Engine

ISUZU Diesel 2.8T, Hp:129, L4

Application

Coring drilling, borehole drilling, civil-construction engineering, Soil investigation

Drive-type

FR layout, Part Time 4 motion

Power Type

Pick-up Power, PTO

Gear box

MT 5 gears

Transmission

Hydraulic transmission.

Safety guarantee

ABS anti-lock、 Braking Force Distribution (EBD、CBC)

Drilling Tech

Full face drilling, coring drilling, high frequency impaction drilling

Another configuration

GPS navigation, multifunction steering wheel, Rear camera video, touch display.

SPT

Auto Drop Hammer Standard specification: China GB 50021-2001, ASTM D1586、BS 1377:1990)

Comfortable, Off-road, Safe, Powerful

Hydraulic transmission, PTO Multi-purpose investigation

China National Oil Emission V Environment friendly


TK-2L  Pick-Up Discover Multi-Purpose Geo-Investigation Drill Rig

Drilling Power

Drilling Depth (m)

200

Drill Rod Size (mm)

φ50

Hole size (mm)

110

Drilling Angle (0)

45 ～90

Movability (Pick-up)

Model/Power (KW)

Huanghai Brand HHN2/Diesel 95

Driven method

Driven by pick-up PTO/4×4

Max (km/h)

150

Power Head

Structure Form

Motor Direct-drive

Rotation Range (r/min)

0～485

0～240

Max Torque (Nm)

650@480 RPM

1300@240RPM

Impaction Head

Impaction Power (KN)

47(Single head)/94(Dual head)

Impaction Frequency (Hz)

217

SPT Device ASTM, D1586

SPT

63.5kg/760mm(GB/T12746-2007)

Heavy SPT

100kg/1500mm(GB/T12746-2007)

Feeding System

Max. Feeding Force (KN)

25

Max Lifting Force (KN)

50

Feeding Stroke (mm)

1850(1500mm Drill Rod)

Hydraulic System

Combined Flow/Pressure

95L/min@21MPa

Auxiliary Flow /Pressure

47L/min@21MPa

Mud Pump

Displacement (L/min)

120

Pump Pressure (MPa)

2.5

SPT Winch

7kN

Main Winch

15kN

Transport Dimension: mm

5600×1900×2700

Total Weight: kg

3500
