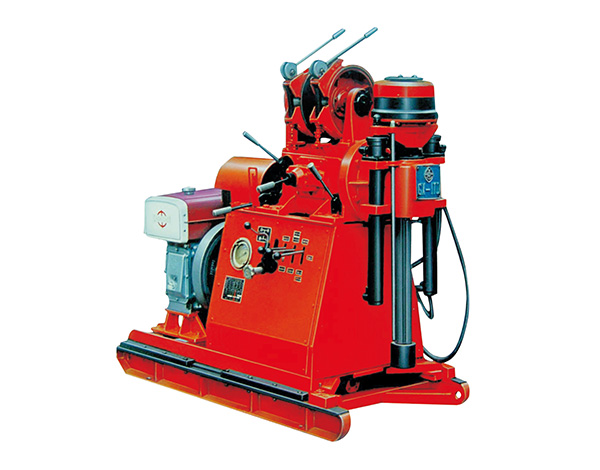

GX100 Exploration Core Drilling Rig
WRIKU@ GX100 Exploration Core Drilling Rig GX-100 is a shallow light drilling rig with a drilling capacity of Max 100m depth, it is Applicable to engineering geological survey and general core drilling that is also a new type of portable engineering geological drilling machine with vertical shaft type mechanical transmission, hydraulic control feeding and hydraulic moving to make the hole open. It has the characteristics of small volume, light weight, compact structure, easy maintenance and repair, good disassembly performance, light disassembly parts, large installed power, simple operation and so on. The drilling machine can be equipped with diesel engine or motor according to user's requirements.
GX - 100 type drilling rig in the design and processing to carry out a wide variety of new foundation national standards, to the important parts and components manufacturing adopted a number of advanced and mature process, such as nitriding vertical shaft, gear processing, the inner diameter of hard-toothed surface centering rectangle spline, hydraulic components used the new generation products, to ensure that the mechanical transmission system and hydraulic system of drilling rig inner quality is stable and reliable, the machine performance to improve.
GX100 Exploration Core Drilling Rig
WRIKU@ GX100 Exploration Core Drilling Rig GX-100 is a shallow light drilling rig with a drilling capacity of Max 100m depth, it is Applicable to engineering geological survey and general core drilling that is also a new type of portable engineering geological drilling machine with vertical shaft type mechanical transmission, hydraulic control feeding and hydraulic moving to make the hole open. It has the characteristics of small volume, light weight, compact structure, easy maintenance and repair, good disassembly performance, light disassembly parts, large installed power, simple operation and so on. The drilling machine can be equipped with diesel engine or motor according to user's requirements.
GX - 100 type drilling rig in the design and processing to carry out a wide variety of new foundation national standards, to the important parts and components manufacturing adopted a number of advanced and mature process, such as nitriding vertical shaft, gear processing, the inner diameter of hard-toothed surface centering rectangle spline, hydraulic components used the new generation products, to ensure that the mechanical transmission system and hydraulic system of drilling rig inner quality is stable and reliable, the machine performance to improve.
GX-100 type drilling machine is suitable for the basic exploration of the following:
A. Railway, highway construction,
B. Industrial and civil construction engineering,
C. Hydropower Engineering,
D. Drilling of Anchor Pile Hole
E. Engineering blasting, engineering rescue ;
F. Other engineering holes of landslide management, dangerous rock reinforcement.
GX-100 type drilling machine is suitable for the basic exploration of the following:
A. Railway, highway construction,
B. Industrial and civil construction engineering,
C. Hydropower Engineering,
D. Drilling of Anchor Pile Hole
E. Engineering blasting, engineering rescue ;
F. Other engineering holes of landslide management, dangerous rock reinforcement.
Main technical parameters
1. The final hole diameter (mm) : Φ 150; Φ 130; Φ 110; Φ 91; Φ 75
2. Drilling depth (m) : 20; 30; 50; 70; 100
3. Borehole Angle: 0 ° ~ 90 °
4. Rotation speed of vertical shaft (r/min) : 180; 430; 688
5. Maximum lifting force of vertical shaft (KN) : 30
6. Vertical shaft stroke (mm) : 400
7. Maximum lifting force of low speed single rope of the winch (KN) : 10
8. Hoisting speed of hoist (m/s) : 0.45; 1; 1.07
9. Drum rope capacity (m) : 25 (9.3 mm steel wire rope Φ)
10. Oil pump: CBW-F310-CFPL gear oil pump
11. Equipped with power:
12. Motor Y160M-4; 11 kw; 1460 (r/min)
13. Diesel engine S1100; 11 kw; 2200 (r/min)
14. Drilling rig dimensions: length * width * height (mm) : 1360*620*1080 (mm)
15. Rig weight (excluding power machine) : 370kg
Main technical parameters
1. The final hole diameter (mm) : Φ 150; Φ 130; Φ 110; Φ 91; Φ 75
2. Drilling depth (m) : 20; 30; 50; 70; 100
3. Borehole Angle: 0 ° ~ 90 °
4. Rotation speed of vertical shaft (r/min) : 180; 430; 688
5. Maximum lifting force of vertical shaft (KN) : 30
6. Vertical shaft stroke (mm) : 400
7. Maximum lifting force of low speed single rope of the winch (KN) : 10
8. Hoisting speed of hoist (m/s) : 0.45; 1; 1.07
9. Drum rope capacity (m) : 25 (9.3 mm steel wire rope Φ)
10. Oil pump: CBW-F310-CFPL gear oil pump
11. Equipped with power:
12. Motor Y160M-4; 11 kw; 1460 (r/min)
13. Diesel engine S1100; 11 kw; 2200 (r/min)
14. Drilling rig dimensions: length * width * height (mm) : 1360*620*1080 (mm)
15. Rig weight (excluding power machine) : 370kg
Parameters:
1. Vertical shaft type mechanical transmission, hydraulic feed.
2. Open the opening of the hydraulic transporter.
3. Hydraulic chucks, manual mechanized centering chucks, manual cylindrical chucks three clamping modes are optional,
4. Novel design, reasonable layout, compact structure and pleasing to the eye.
5. Light weight, good detachable, easy to operate.
6. Equipped with special 6MA tower.
Parameters:
1. Vertical shaft type mechanical transmission, hydraulic feed.
2. Open the opening of the hydraulic transporter.
3. Hydraulic chucks, manual mechanized centering chucks, manual cylindrical chucks three clamping modes are optional,
4. Novel design, reasonable layout, compact structure and pleasing to the eye.
5. Light weight, good detachable, easy to operate.
6. Equipped with special 6MA tower.
