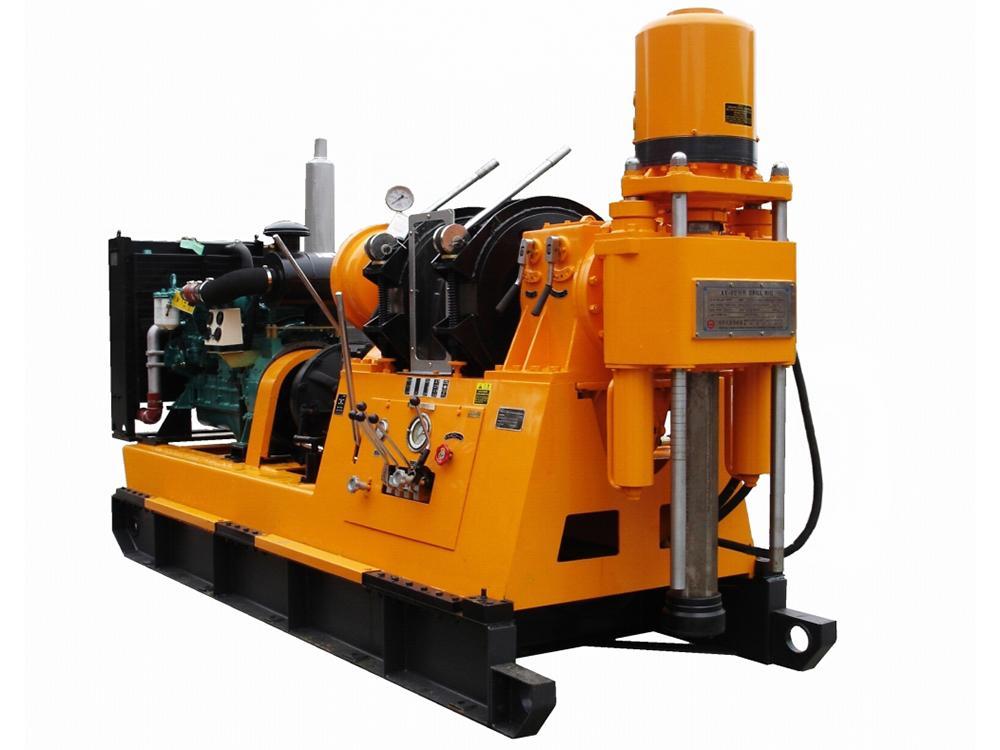

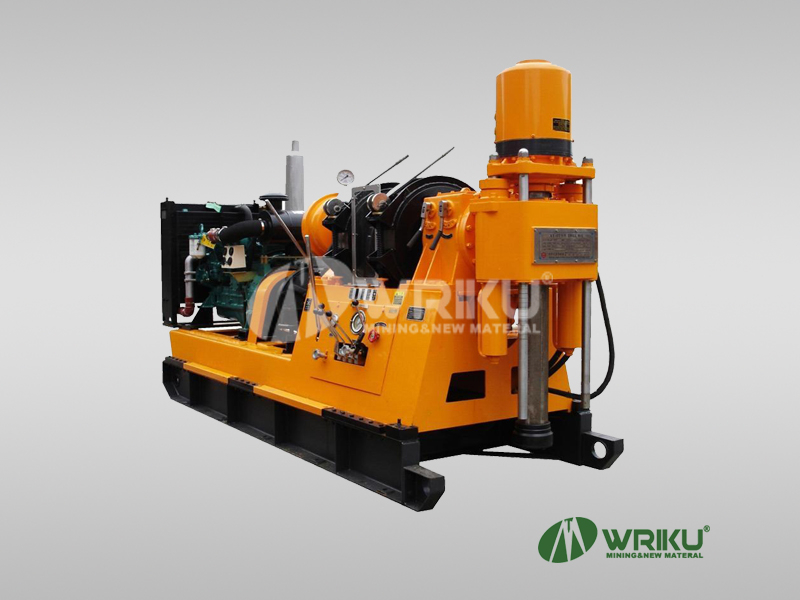

Exploration Core Drilling Rig Crawler XY-5L

WRIKU'S Exploration core drill rig, tower mounted type XY-5L suitable for use in geological exploration, hydrology, constructions of water well and large diameter drilling project. It is a new type of coring drill rig used to satisfy the needs of various drilling process with diamond drilling and wireline core drilling process. Integrating the crawler track as base with the vertical drill rig to achieve unified drill rig body. Furthermore, it has advantages such as simple structure, easy operation and convenient in maintenance. The drilling depth is 900-1800m
Availability:

XY-5L

Description of XY-5L Drilling Rig

WRIKU@Exploration core drill rig, tower mounted type XY-5L  is suitable for use in geological exploration, hydrology, constructions of water well and large diameter drilling project. It is a new type of coring drill rig used to satisfy the needs of various drilling process with diamond drilling and wireline core drilling process. Integrating the crawler track as base with the vertical drill rig to achieve unified drill rig body. Furthermore, it has advantages such as simple structure, easy operation and convenient in maintenance. The drilling depth is 900-1800m


XY-5L

g ability

Drilling pipe

Drilling depth

BC drilling pipe

1800m

NC drilling pipe

1400m

HC drilling pipe

900m

Gyrator

Vertical rotational speed

Clockwise rotation: 47, 76, 123, 152, 190, 246, 270, 360, 400, 613, 869, 1161r/min
Counter clockwise rotation: 51, 163r/min

Vertical spindle diameter

Φ93mm

Lifting ability

150kN

Pressurizing ability

80kN

Spindle stroke

800MM

Winch

Single rope three-layer lifting ability

Maximum 60kN

Single rope three-layer lifting speed

0.79, 1.27, 1.96, 2.78, 3.71m/s

Reel diameter

300mm

Diameter of steel rope

20mm

Capacity for the steel rope, m

100m

Hydraulic system

Oil pump model

63SCY14-1BF(Piston pump)+SGP1A16RF (gear pump)

Swept volume of the pump

63+16ml/r

System pressure

10MPa to 25MPa

Feeding stroke

500mm

Drill tower

Height

11.7m

Drill tower load

300KN

Drilling angle

90°~45°

Crawler track

Sustainable load of the crawler track

10t

Dimensions of the base (length x width)

3950 X 2180mm

Stroking speed

1.5~2km/h

Maximum tractive force

10250Kg

Suitable slope angel

≤30°

Wireline winch

Uplift force

Empty spool 1200kg,Fully occupied spool 400kg

Speed with fully occupied spool

2m/s

Capacity for the rope

1500mm

Engine

Name

Diesel motor

Model

4BTA3.9-C100

Power

74kw

Rotational speed

2200r/min


XY-5L

Drilling and exploration accessory equipment such as drill rig, drill tower, mud pump, wireline winch, machine to tighten or loosen the pipe and so on are centralized at the base crawler track and therefore allowing transporting the machine in a whole body. This allows high overall efficiency, good auxiliary ability, short construction period and low labor intensity.

It has wide range of rotational speed, various gear speed, large output torque, high intensity, good orientation ability, stable performance of the power head, strong drilling ability, strong adaptability and wide range of application.

Equipped with drill tower that performs hydraulic lifting and lowering. It has light weight and allows fast installation. It allows inclined drilling and has better stability compared to the other integrated drilling rig.

Main body of the drill rig, mud pump, coring winch can be driven independently and therefore allowing free operation. It is less cost and energy consuming and easy for maintenance.

The hydraulic system adopts the dual oil pump mechanism for oil supply and differential motion. The process of loosening the chuck and position the drilling pipe at a higher place can be carried out fast. It has strong power and has high degree of mechanization.

The engine, gearbox, clutch, drive shaft and other components are all from well-known manufacturers. They have longer lifespan and are easy for replacement, as well as reliable.
