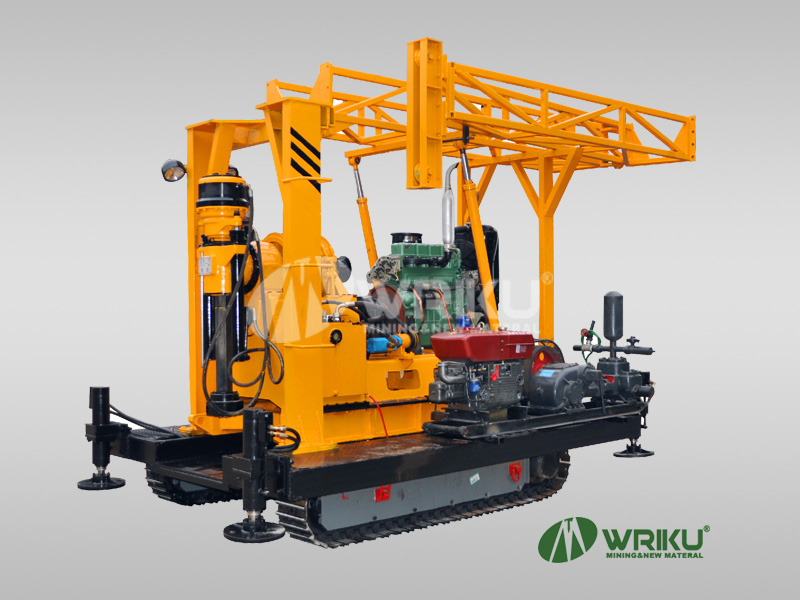

XY-2L Crawler Core Drilling Rig
WRIKU@XY2-L Coring and exploration drill rig, tower mounted type XY-2L is a coring drill rig integrated with crawler track mechanism, tower, mud pump and console. It can be used in core drilling as well as geological surveying, hydrology, water well and constructions for large diameter drilling. The drill rig is small in size and has light weight as well as detachable. It weighs only 950kg excluding the engine and can be transported in 8 different parts where the largest part has weight 140kg. Therefore, it is suitable for works especially in mountainous areas and network of waterway as it can be transported easily. The drilling depth is 100-530m.
XY-2L Crawler Core Drilling Rig
WRIKU@XY2-L Coring and exploration drill rig, tower mounted type XY-2L is a coring drill rig integrated with crawler track mechanism, tower, mud pump and console. It can be used in core drilling as well as geological surveying, hydrology, water well and constructions for large diameter drilling. The drill rig is small in size and has light weight as well as detachable. It weighs only 950kg excluding the engine and can be transported in 8 different parts where the largest part has weight 140kg. Therefore, it is suitable for works especially in mountainous areas and network of waterway as it can be transported easily. The drilling depth is 100-530m.
Feature of Core Drilling Rig
1. Integrated crawler walking mechanism, drilling tower, mud pump and operating platform;
2. The crawler walk, the base support, and the landing and take-off of the rig are all driven by the hydraulic system of the rig itself, which is easy to operate.
3. the machine has realized the overall relocation of the complete set of drilling equipment, improved the drilling construction efficiency and reduced the labor intensity of workers
4. The drilling tower of the rig has the functions of taking off and falling, folding and folding, which is easy to walk and transport.
5. The drill has more (8 gears) speed series and reasonable speed range, and low speed torque is relatively large, wide range of use.
6. The drilling machine has a two-gear reversal speed, which is easy to deal with accidents.
7. The feeding process of the vertical shaft of the drilling rig is as long as 600mm, which is conducive to improving drilling efficiency and reducing the occurrence of accidents such as drilling blocking and drilling burning.
8. The rig adopts double oil pump for oil supply, less power consumption and lower oil temperature in the hydraulic system.
9. The rig control handle is less, the layout is reasonable, the operation is flexible and reliable.
10. In addition to the regular closed hydraulic upper chuck, the drill is also equipped with mechanical manual lower chuck.
Feature of Core Drilling Rig
1. Integrated crawler walking mechanism, drilling tower, mud pump and operating platform;
2. The crawler walk, the base support, and the landing and take-off of the rig are all driven by the hydraulic system of the rig itself, which is easy to operate.
3. the machine has realized the overall relocation of the complete set of drilling equipment, improved the drilling construction efficiency and reduced the labor intensity of workers
4. The drilling tower of the rig has the functions of taking off and falling, folding and folding, which is easy to walk and transport.
5. The drill has more (8 gears) speed series and reasonable speed range, and low speed torque is relatively large, wide range of use.
6. The drilling machine has a two-gear reversal speed, which is easy to deal with accidents.
7. The feeding process of the vertical shaft of the drilling rig is as long as 600mm, which is conducive to improving drilling efficiency and reducing the occurrence of accidents such as drilling blocking and drilling burning.
8. The rig adopts double oil pump for oil supply, less power consumption and lower oil temperature in the hydraulic system.
9. The rig control handle is less, the layout is reasonable, the operation is flexible and reliable.
10. In addition to the regular closed hydraulic upper chuck, the drill is also equipped with mechanical manual lower chuck.
parameters | Drilling depth | 100~530m | ||||
Drilling diameter | Φ75~Φ45mm | |||||
Diameter of drilling pipe | Depends on the choices on drilling hole | |||||
Power head | 1stgear | 2nd gear | 3rd gear | 4th gear | 5th gear | |
Rotational speed output (r/min) | 65 | 114 | 180 | 248 | 310 | |
6thgear | 7th gear | 8th gear | Counter-clockwise 1 | Counter-clockwise 2 | ||
538 | 849 | 1172 | 51 | 242 | ||
Rated maximum torque output | 2760N.m | |||||
Up down feeding stroke of the power head | 600mm | |||||
Winch | Lifting ability (Single rope 1stlayer) | 30KN | ||||
Maximum lifting speed of single rope | 1.948m/min | |||||
Steel rope specification | 14mm | |||||
Capacity for the steel rope | 45m | |||||
Power | Electric motor model | 4100 | ||||
Power | 30KW | |||||
Rotational speed | 1500r/min | |||||
