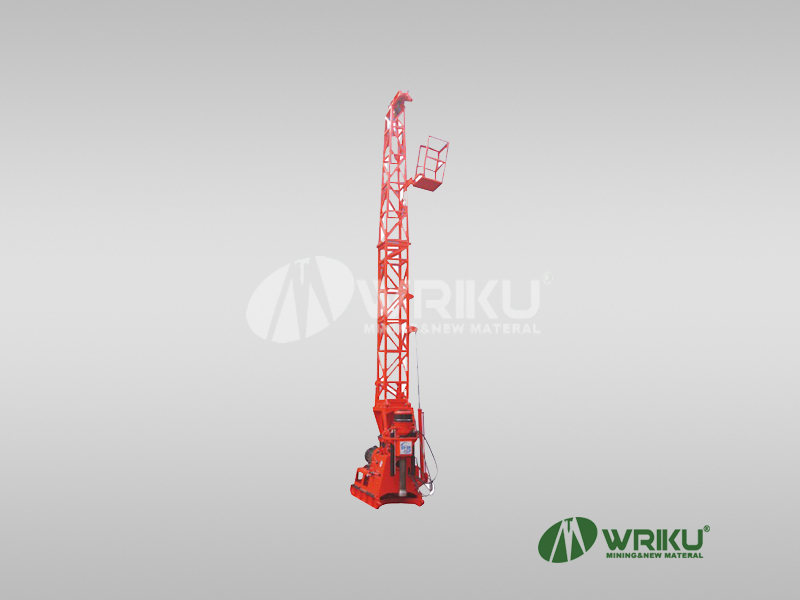

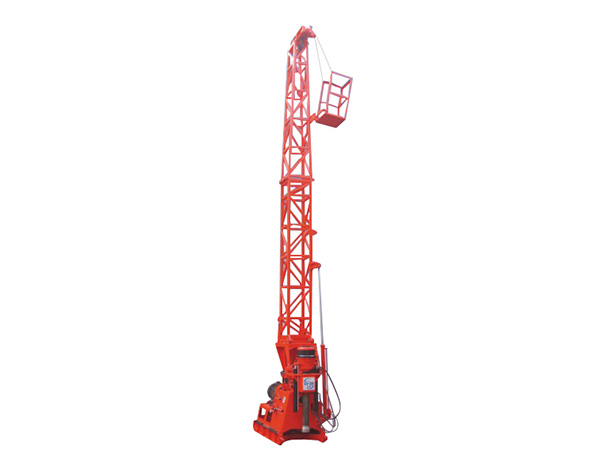

WRIKU@XY-2BT drill is a kind of tower engine integrated shallow hole core drill. It is not only suitable for large and small diameter core drilling with alloy and diamond, but also can be used for engineering geological survey, hydrology, water well, as well as large diameter engineering construction drilling and anchor hole construction. It has the characteristics of small volume, light weight, large installed power, wide performance, strong versatility, and excellent product quality, thoughtful after-sales service, widely welcomed by geological and mineral exploration, coal and energy exploration and other construction departments. This drill can be powered by electric motor or diesel engine
2017-03-28
WRIKU@XY-2BT drill is a kind of tower engine integrated shallow hole core drill. It is not only suitable for large and small diameter core drilling with alloy and diamond, but also can be used for engineering geological survey, hydrology, water well, as well as large diameter engineering construction drilling and anchor hole construction. It has the characteristics of small volume, light weight, large installed power, wide performance, strong versatility, and excellent product quality, thoughtful after-sales service, widely welcomed by geological and mineral exploration, coal and energy exploration and other construction departments. This drill can be powered by electric motor or diesel engine
2017-03-28
The rig has the following characteristics:
1. The drill has a variety of speed series (8 gears) and a reasonable speed range (when the motor speed is 1500r/min, the maximum speed of the drill is 1024 r/min and the minimum speed is 57r/min). And low speed torque is relatively large, wide range of use.
2. The rig has two speed reversals (45 r/min, 212 r/min) to facilitate handling of accidents.
3. The installed power of the drill is large.
4. The structure of the drill is advanced, the layout is reasonable, easy to maintain, maintain and repair.
5. The drill is small in size, light in weight and good in detachable. Its total weight without power machine is only 1000kg. It can be decomposed into eight parts to carry, the maximum weight of the parts is 140kg. Relocation transportation is convenient, especially in the mountainous area and water network work.
6. The vertical shaft of the drilling rig is as long as 540mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as drilling blocking and drilling burning.
7. Steady moving, simple and reliable fixing, high speed drilling stability is good.
8. Drilling machine adopts double oil pump to supply oil, less power consumption and lower oil temperature in hydraulic system.
9. The weight on bit gauge is integrated with the pressure gauge of the hydraulic system, and adopts the oil-filled shockproof structure. The weight on bit gauge has simple calibration, accurate indication and long service life.10. The rig control handle is few, the layout is reasonable, the operation is flexible and reliable.
11. In addition to high speed drilling, the drilling machine can also carry out low speed and large diameter drilling.
12. In addition to the regular closed hydraulic chuck, the drill is also equipped with mechanical manual chuck.
2017-03-28
The rig has the following characteristics:
1. The drill has a variety of speed series (8 gears) and a reasonable speed range (when the motor speed is 1500r/min, the maximum speed of the drill is 1024 r/min and the minimum speed is 57r/min). And low speed torque is relatively large, wide range of use.
2. The rig has two speed reversals (45 r/min, 212 r/min) to facilitate handling of accidents.
3. The installed power of the drill is large.
4. The structure of the drill is advanced, the layout is reasonable, easy to maintain, maintain and repair.
5. The drill is small in size, light in weight and good in detachable. Its total weight without power machine is only 1000kg. It can be decomposed into eight parts to carry, the maximum weight of the parts is 140kg. Relocation transportation is convenient, especially in the mountainous area and water network work.
6. The vertical shaft of the drilling rig is as long as 540mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as drilling blocking and drilling burning.
7. Steady moving, simple and reliable fixing, high speed drilling stability is good.
8. Drilling machine adopts double oil pump to supply oil, less power consumption and lower oil temperature in hydraulic system.
9. The weight on bit gauge is integrated with the pressure gauge of the hydraulic system, and adopts the oil-filled shockproof structure. The weight on bit gauge has simple calibration, accurate indication and long service life.10. The rig control handle is few, the layout is reasonable, the operation is flexible and reliable.
11. In addition to high speed drilling, the drilling machine can also carry out low speed and large diameter drilling.
12. In addition to the regular closed hydraulic chuck, the drill is also equipped with mechanical manual chuck.
2017-03-28
Specificaiton
Rod Size&Drilling Depth
Drill pipe gauge: 42mm drill pipe penetration depth: 530 m
Drill pipe gauge: drilling depth of 50mm drill pipe: 385m
Drill pipe gauge: 60mm drill pipe drilling depth: 320m
Drill pipe gauge: AW drill pipe penetration depth: 530 m
Drill pipe gauge: BW drill pipe penetration depth: 420 m
Drill pipe gauge: NW drill pipe penetration depth: 320 m
Drill pipe gauge: 43mm coring drill pipe penetration depth: 640 m
Drill pipe gauge: 53mm coring drill pipe drilling depth: 500 m
Drill pipe gauge: 63mm coring drill pipe drilling depth: 380m
Drill pipe gauge: AQ cord coring drill pipe penetration depth: 565 m
Drill pipe gauge: BQ cord coring drill pipe penetration depth: 460 m
Drill pipe gauge: NQ cord coring drill pipe penetration depth: 350 m
2) Drilling in hydrology, water well and large-diameter engineering construction:
Drill pipe specification drilling diameter drilling depth
60 mm drill pipe 150 mm250 m
60 mm drill pipe 200 mm800 m
73 mm drill pipe 300 mm100 m
2. Other parameters:
Rotation speed of vertical shaft (r/min) : positive rotation: 57; 99; 157; 217; 270; 470; 742; Reverse rotation: 45; 212
Maximum torque of vertical shaft (N•m) : 2760
Maximum lifting force of vertical shaft: 60kN
Vertical shaft stroke: 540mm
Maximum lifting force of winding single rope: 30kN
Vertical shaft through hole diameter: 96mm
Oil pump: SCB32/12 double gear pump
Dynamic force machine:
Motor: Y180L-4 22KW 1470r/min
Diesel engine: 395K2 27HP 1500r/min
Drill tower height: 8m
Lifting load of rig hook: 29.4 kN
Maximum static load of roof girder: 58.8kN
Number of crown-block pulleys: 2
Maximum load of high altitude platform: 0.85kN
Drill tower adjustment Angle: 45° ~ 90°
The external dimension of the drill (length × width × height) : 2220×900×1800 mm
Rig weight (excluding power machine and rig tower) : 1200kg
