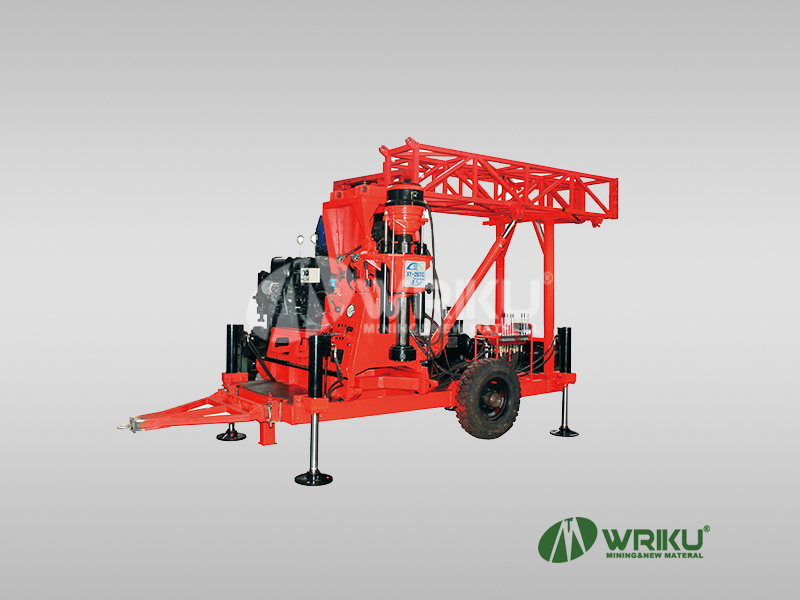

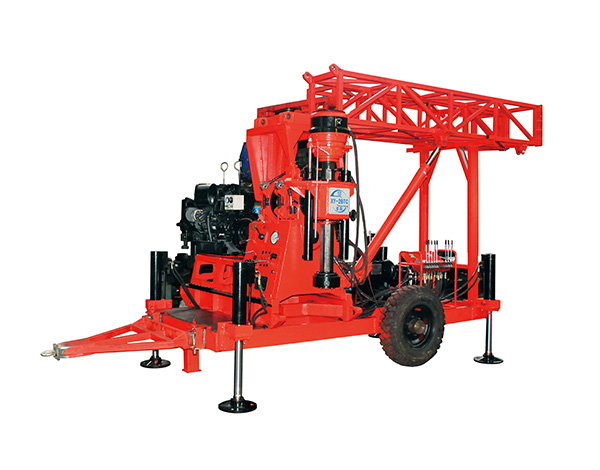

The XY-2BTC Geologycal Core Drilling Rig is a tower crane integrated drilling rig that integrates the drilling tower, mud pump, hydraulic rope coring winch and trailer with our company's XY-2B drilling rig as the main engine. It is not only suitable for core drilling of large and small diameters based on alloys and diamonds, but also for engineering geological surveys, hydrology, water wells, and large-diameter engineering construction drilling and anchor hole construction. It has the characteristics of large installed power, strong versatility, wide range of performance, and convenient use, as well as excellent product quality and thoughtful after-sales service. It is widely welcomed by construction departments such as geological and mineral exploration, coal energy exploration, etc.
2017-03-28
Description
The XY-2BTC Geologycal Core Drilling Rig is a tower crane integrated drilling rig that integrates the drilling tower, mud pump, hydraulic rope coring winch and trailer with our company's XY-2B drilling rig as the main engine. It is not only suitable for core drilling of large and small diameters based on alloys and diamonds, but also for engineering geological surveys, hydrology, water wells, and large-diameter engineering construction drilling and anchor hole construction. It has the characteristics of large installed power, strong versatility, wide range of performance, and convenient use, as well as excellent product quality and thoughtful after-sales service. It is widely welcomed by construction departments such as geological and mineral exploration, coal energy exploration, etc.
2017-03-28
1. The drilling rig has a large number of speeds (8 gears) and a reasonable speed range (when the power machine speed is 1500r/min, the highest speed of the drilling rig is 1024 r/min and the lowest speed is 57r/min). And the low-speed torque is relatively large, and the application range is wide.
2. The drilling rig has two reverse speeds (45 r/min, 212 r/min), which is convenient for handling accidents.
3. The vertical axis of the drilling rig has a length of 540mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as plugging and burning.
4. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
5. The moving vehicle is stable, the fixing is simple and reliable, and the high-speed drilling stability is good.
6. The drilling rig uses dual oil pumps for oil supply, which has low power consumption and low oil temperature in the hydraulic system.
7. In addition to high-speed drilling, the drilling rig can also perform low-speed large-diameter drilling.
8. In addition to the normally closed hydraulic upper chuck, the drilling rig is also equipped with a mechanical manual lower chuck.
9. The drilling rig is integrated with tower crane, and the angle of the drilling tower can be adjusted in a clockwise direction to be suitable for drilling oblique holes, and a trailer and mud pump are added, which is very convenient to use and move holes.
1. The drilling rig has a large number of speeds (8 gears) and a reasonable speed range (when the power machine speed is 1500r/min, the highest speed of the drilling rig is 1024 r/min and the lowest speed is 57r/min). And the low-speed torque is relatively large, and the application range is wide.
2. The drilling rig has two reverse speeds (45 r/min, 212 r/min), which is convenient for handling accidents.
3. The vertical axis of the drilling rig has a length of 540mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as plugging and burning.
4. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
5. The moving vehicle is stable, the fixing is simple and reliable, and the high-speed drilling stability is good.
6. The drilling rig uses dual oil pumps for oil supply, which has low power consumption and low oil temperature in the hydraulic system.
7. In addition to high-speed drilling, the drilling rig can also perform low-speed large-diameter drilling.
8. In addition to the normally closed hydraulic upper chuck, the drilling rig is also equipped with a mechanical manual lower chuck.
9. The drilling rig is integrated with tower crane, and the angle of the drilling tower can be adjusted in a clockwise direction to be suitable for drilling oblique holes, and a trailer and mud pump are added, which is very convenient to use and move holes.
1. Drilling depth: Ф73 drill pipe: 100m; Ф60 drill pipe :200m ;Ф50 drill pipe 380m; Ф42 drill pipe: 530,
2. Vertical shaft rotation speed (r/min): forward rotation 57; 99; 157; 217; 270;
3. 470; 742; 1024 reverse: 45; 212
4. The maximum torque of the vertical shaft: 3200N•m The maximum pulling force of the vertical shaft: 60KN
5. Vertical axis stroke: 540mm
6. Maximum lifting force of hoisting single rope: 30KN
7. Vertical shaft through hole diameter: 96mm
8. Oil pump: CBK1020/8 double gear pump
9. Power engine: diesel engine F3129L 24 KW 1500 r/min
10. Drill tower height: 8m
11. Lifting load of rig hook: 29.4KN
12. Maximum static load of crane beam: 58.8KN
13. Crane pulley number: 5
14. Drill tower adjustment angle: 45°～90°
15. Overall dimensions of drilling rig (length×width×height): Transport state 4500×2150×2950 mm
16. Drilling status: 3450×2150×8206 mm
17. Drilling rig weight (excluding power machine and drilling tower): 1200Kg
1. Drilling depth: Ф73 drill pipe: 100m; Ф60 drill pipe :200m ;Ф50 drill pipe 380m; Ф42 drill pipe: 530,
2. Vertical shaft rotation speed (r/min): forward rotation 57; 99; 157; 217; 270;
3. 470; 742; 1024 reverse: 45; 212
4. The maximum torque of the vertical shaft: 3200N•m The maximum pulling force of the vertical shaft: 60KN
5. Vertical axis stroke: 540mm
6. Maximum lifting force of hoisting single rope: 30KN
7. Vertical shaft through hole diameter: 96mm
8. Oil pump: CBK1020/8 double gear pump
9. Power engine: diesel engine F3129L 24 KW 1500 r/min
10. Drill tower height: 8m
11. Lifting load of rig hook: 29.4KN
12. Maximum static load of crane beam: 58.8KN
13. Crane pulley number: 5
14. Drill tower adjustment angle: 45°～90°
15. Overall dimensions of drilling rig (length×width×height): Transport state 4500×2150×2950 mm
16. Drilling status: 3450×2150×8206 mm
17. Drilling rig weight (excluding power machine and drilling tower): 1200Kg
