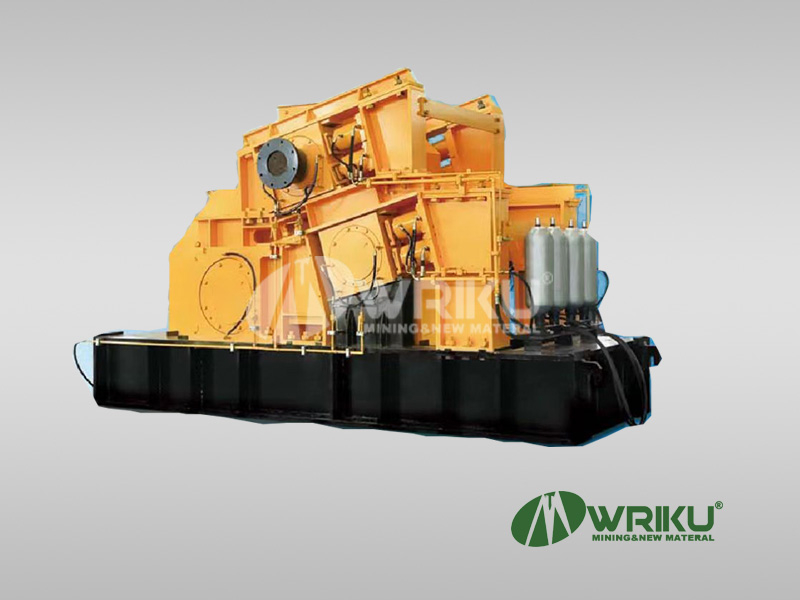

TPGS-Y Series Intelligent Roller Crusher
TPGS-Y series intelligent crusher (also known as hydraulic multi-roll crusher) is developed by our company independently, which has obtained 8 patents authorized by the State of the People's Republic of China. It is a new generation of crusher with high crushing ratio, high output, low energy consumption and low loss. It has been successfully applied in various metal and non-metal crushing industries such as construction waste treatment, iron ore, copper ore, tin, tungsten and chromium ore crushing, steel slag crushing, stone making, sand making, glass crushing and ceramic raw material crushing. This product is the national building materials machinery up to standard and won the 2017 National Building Materials Industry Technical Innovation Award.
Compacted and modular design;
Extreamlly Large Crushing Rato at3-30;3.High qualified end production at 80%-98%,
End products size adjustable at -5mm;
Strong Wearing ability on spare, service life10-24Month depends on hardness feeding;
Power could be saved at 30% above while compare with VIS Crusher, Cone crusher and other normal type crushing equipment;
Less spare parts request, 1/10 on spare parts consumption while comparied with other crusher;
Easy operation, one step solution on installation;
TPGS-Y Series Intelligent Roller Crusher
TPGS-Y series intelligent crusher (also known as hydraulic multi-roll crusher) is developed by our company independently, which has obtained 8 patents authorized by the State of the People's Republic of China. It is a new generation of crusher with high crushing ratio, high output, low energy consumption and low loss. It has been successfully applied in various metal and non-metal crushing industries such as construction waste treatment, iron ore, copper ore, tin, tungsten and chromium ore crushing, steel slag crushing, stone making, sand making, glass crushing and ceramic raw material crushing. This product is the national building materials machinery up to standard and won the 2017 National Building Materials Industry Technical Innovation Award.
Compacted and modular design;
Extreamlly Large Crushing Rato at3-30;3.High qualified end production at 80%-98%,
End products size adjustable at -5mm;
Strong Wearing ability on spare, service life10-24Month depends on hardness feeding;
Power could be saved at 30% above while compare with VIS Crusher, Cone crusher and other normal type crushing equipment;
Less spare parts request, 1/10 on spare parts consumption while comparied with other crusher;
Easy operation, one step solution on installation;
| Hydraulic Roller Crusher （TP-GS-Y Series) |  One Stage Solution on Large Feeding and Fine discharge Crushing Plant | ||||||
| Product Description | TPGS-Y series intelligent crusher (also known as hydraulic multi-roll crusher) is developed by our company independently, which has obtained 8 patents authorized by the State of the People's Republic of China. It is a new generation of crusher with high crushing ratio, high output, low energy consumption and low loss. It has been successfully applied in various metal and non-metal crushing industries such as construction waste treatment, iron ore, copper ore, tin, tungsten and chromium ore crushing, steel slag crushing, stone making, sand making, glass crushing and ceramic raw material crushing. This product is the national building materials machinery up to standard and won the 2017 National Building Materials Industry Technical Innovation Award. | ||||||
| Product Feature | 1.Compacted and modular design;2. Extreamlly Large Crushing Rato at3-30;3.High qualified end production at 80%-98%,3. End products size adjustable at -5mm;4. Strong Wearing ability on spare, service life10-24Month depends on hardness feeding;5.Power could be saved at 30% above while compare with VIS Crusher, Cone crusher and other normal type crushing equipment;6.Less spare parts request, 1/10 on spare parts consumption while comparied with other crusher; 7.Easy operation, one step solution on installation; | ||||||
| MODEL | Feeding Size | Discharge | Capacity(t/h) | Opening Size （mm） | Discharging Size （mm） | Power | Dimension （mm） |
| (mm) | (mm)Adjustable | (KW) | |||||
| TP-GS600Y | <80 | <3mm | 2-15 | 400x250 | 1000 x 500 | 22*2 | 1910 x 3096x1250 |
| TP-GS800Y | <100 | <3mm | 15-30 | 500 x 260 | 1500 x 600 | 45*2 | 2619 x 2915x1450 |
| TP-GS1000Y | <100 | <3mm | 30-50 | 600 x 350 | 1800 x 700 | 75*2 | 3540 x 2700x1600 |
| TP-GS1200Y | <120 | <3mm | 50-100 | 700 *360 | 2200x800 | 110*2 | 5150 x 3635x2150 |
| TP-GS1500Y | <120 | <3mm | 90-160 | 800 x 360 | 2605 x 900 | 160+110+55 | 3716 x 7324 x 2505 |
| TP-GS1800Y | <120 | <3mm | 140-210 | 800x420 | 3600x860 | 250+160+110 | 4335x8074 x2868 |
| TP-GS2000Y | <150 | <3mm | 180-260 | 1000 x 450 | 4000x1100 | 250+160*+110 | 5100x8100x3280 |
| TP-GS2200Y | <150 | <3mm | 260-400 | 1300 * 420 | 4350x1360 | 315+200+110 | 5742 x 9330 x3500 |
| TP-GS2600Y | <150 | <3mm | 400-550 | 1600 x 550 | 4235x1700 | 500+355+220 | 6500x11435 x3880 |
| TP-GS2600Y(Heavy Type) | <150 | <3mm | 500-800 | 1600 x 550 | 4235x1700 | 800+500+220 | 6500x11435 x3880 |
| TP-GS2600Y (High Voltage) | <150 | <3mm | 700-1000 | 1600 x 550 | 4235x1700 | 1000+710+355 | 6500x12164 x 3880 |
| Note: | he product designer reserves the right to interpret the above parameters for reference only, if there are changes or special requirements, please contact us for an accurate technical solutio. www.wriku.com, www.topmie.com. Email: info@topmie.com, info@wriku.com, Tel/WhatUpp:+8613817210321 | ||||||
| Hydraulic Roller Crusher （TP-GS-Y Series) | One Stage Solution on Large Feeding and Fine discharge Crushing Plant | ||||||
| Product Description | TPGS-Y series intelligent crusher (also known as hydraulic multi-roll crusher) is developed by our company independently, which has obtained 8 patents authorized by the State of the People's Republic of China. It is a new generation of crusher with high crushing ratio, high output, low energy consumption and low loss. It has been successfully applied in various metal and non-metal crushing industries such as construction waste treatment, iron ore, copper ore, tin, tungsten and chromium ore crushing, steel slag crushing, stone making, sand making, glass crushing and ceramic raw material crushing. This product is the national building materials machinery up to standard and won the 2017 National Building Materials Industry Technical Innovation Award. | ||||||
| Product Feature | 1.Compacted and modular design;2. Extreamlly Large Crushing Rato at3-30;3.High qualified end production at 80%-98%,3. End products size adjustable at -5mm;4. Strong Wearing ability on spare, service life10-24Month depends on hardness feeding;5.Power could be saved at 30% above while compare with VIS Crusher, Cone crusher and other normal type crushing equipment;6.Less spare parts request, 1/10 on spare parts consumption while comparied with other crusher; 7.Easy operation, one step solution on installation; | ||||||
| MODEL | Feeding Size | Discharge | Capacity(t/h) | Opening Size （mm） | Discharging Size （mm） | Power | Dimension （mm） |
| (mm) | (mm)Adjustable | (KW) | |||||
| TP-GS600Y | <80 | <3mm | 2-15 | 400x250 | 1000 x 500 | 22*2 | 1910 x 3096x1250 |
| TP-GS800Y | <100 | <3mm | 15-30 | 500 x 260 | 1500 x 600 | 45*2 | 2619 x 2915x1450 |
| TP-GS1000Y | <100 | <3mm | 30-50 | 600 x 350 | 1800 x 700 | 75*2 | 3540 x 2700x1600 |
| TP-GS1200Y | <120 | <3mm | 50-100 | 700 *360 | 2200x800 | 110*2 | 5150 x 3635x2150 |
| TP-GS1500Y | <120 | <3mm | 90-160 | 800 x 360 | 2605 x 900 | 160+110+55 | 3716 x 7324 x 2505 |
| TP-GS1800Y | <120 | <3mm | 140-210 | 800x420 | 3600x860 | 250+160+110 | 4335x8074 x2868 |
| TP-GS2000Y | <150 | <3mm | 180-260 | 1000 x 450 | 4000x1100 | 250+160*+110 | 5100x8100x3280 |
| TP-GS2200Y | <150 | <3mm | 260-400 | 1300 * 420 | 4350x1360 | 315+200+110 | 5742 x 9330 x3500 |
| TP-GS2600Y | <150 | <3mm | 400-550 | 1600 x 550 | 4235x1700 | 500+355+220 | 6500x11435 x3880 |
| TP-GS2600Y(Heavy Type) | <150 | <3mm | 500-800 | 1600 x 550 | 4235x1700 | 800+500+220 | 6500x11435 x3880 |
| TP-GS2600Y (High Voltage) | <150 | <3mm | 700-1000 | 1600 x 550 | 4235x1700 | 1000+710+355 | 6500x12164 x 3880 |
| Note: | he product designer reserves the right to interpret the above parameters for reference only, if there are changes or special requirements, please contact us for an accurate technical solutio. www.wriku.com, www.topmie.com. Email: info@topmie.com, info@wriku.com, Tel/WhatUpp:+8613817210321 | ||||||
