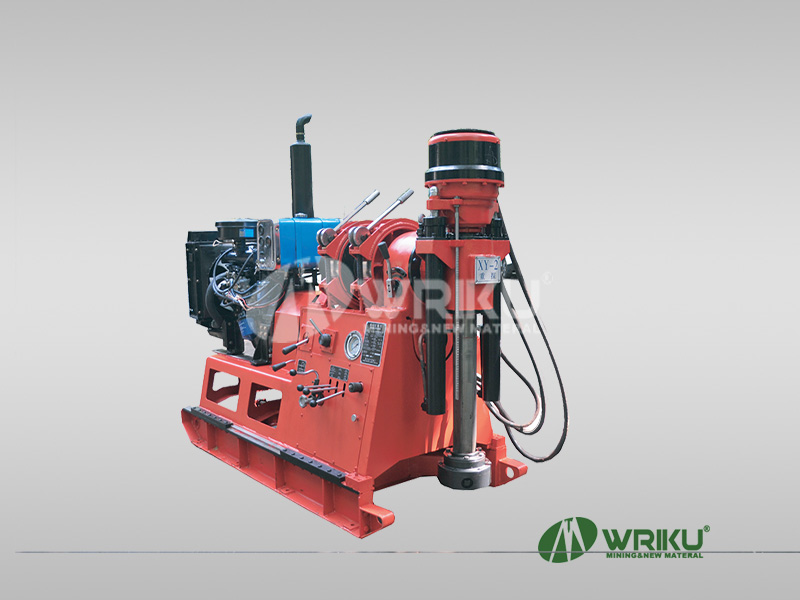

XY-2 Drilling Rig
Exploration core drilling rig, vertical type XY-2 is a half shallow hole core drilling rig which has small size and light weight. It is suitable for use with drill bits that made of materials such as diamonds and alloys for core drilling. In addition, it is applicable in geological prospecting, hydrology, drilling for water well and large diameter drilling projects. It weighs only 950kg excluding the engine and can be transported in 8 different parts where the largest part has weight 140kg. Therefore, it is suitable for works in mountainous areas as it can be transported easily. The drilling depth is 100-530m. It advantages include light weight, good quality, high installing power, wide range of performance and strong adaptability.
XY-2 Drilling Rig
Exploration core drilling rig, vertical type XY-2 is a half shallow hole core drilling rig which has small size and light weight. It is suitable for use with drill bits that made of materials such as diamonds and alloys for core drilling. In addition, it is applicable in geological prospecting, hydrology, drilling for water well and large diameter drilling projects. It weighs only 950kg excluding the engine and can be transported in 8 different parts where the largest part has weight 140kg. Therefore, it is suitable for works in mountainous areas as it can be transported easily. The drilling depth is 100-530m. It advantages include light weight, good quality, high installing power, wide range of performance and strong adaptability.
Feature of XY-2 Rig
1. The drilling rig has a large number of speeds (8 gears) and a reasonable speed range (when the power machine speed is 1500r/min, the highest speed of the drilling rig is 1172 r/min and the lowest speed is 65 r/min). And the low-speed torque is relatively large, and the application range is wide.
2. The drilling rig has two reverse speeds (51 r/min, 242 r/min), which is convenient for handling accidents.
3. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
4. The drilling rig is small in size, light in weight and good in detachability. Its total weight without power machine is only 950kg. It can be broken down into eight parts for handling, and the maximum part weight is 140kg. Relocation and transportation are convenient, especially in mountainous areas and water network areas.
5. The vertical axis of the drilling rig has a length of 600mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as plugging and burning.
6. The moving vehicle is stable, the fixing is simple and reliable, and the high-speed drilling stability is good.
7. The drilling rig uses dual oil pumps for oil supply, which has low power consumption and low oil temperature in the hydraulic system.
8. The weight-on-bit gauge and the pressure gauge of the hydraulic system are combined into one, and the oil-filled anti-vibration structure is adopted. The weight-on-bit
9. The value scale is simple, the indication is accurate, and the instrument has a long service life.
10. The drilling rig has few control handles, reasonable layout, flexible and reliable operation.
11. In addition to high-speed drilling, the drilling rig can also perform low-speed large-diameter drilling.
Feature of XY-2 Rig
1. The drilling rig has a large number of speeds (8 gears) and a reasonable speed range (when the power machine speed is 1500r/min, the highest speed of the drilling rig is 1172 r/min and the lowest speed is 65 r/min). And the low-speed torque is relatively large, and the application range is wide.
2. The drilling rig has two reverse speeds (51 r/min, 242 r/min), which is convenient for handling accidents.
3. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
4. The drilling rig is small in size, light in weight and good in detachability. Its total weight without power machine is only 950kg. It can be broken down into eight parts for handling, and the maximum part weight is 140kg. Relocation and transportation are convenient, especially in mountainous areas and water network areas.
5. The vertical axis of the drilling rig has a length of 600mm, which is beneficial to improve the drilling efficiency and reduce the occurrence of accidents such as plugging and burning.
6. The moving vehicle is stable, the fixing is simple and reliable, and the high-speed drilling stability is good.
7. The drilling rig uses dual oil pumps for oil supply, which has low power consumption and low oil temperature in the hydraulic system.
8. The weight-on-bit gauge and the pressure gauge of the hydraulic system are combined into one, and the oil-filled anti-vibration structure is adopted. The weight-on-bit
9. The value scale is simple, the indication is accurate, and the instrument has a long service life.
10. The drilling rig has few control handles, reasonable layout, flexible and reliable operation.
11. In addition to high-speed drilling, the drilling rig can also perform low-speed large-diameter drilling.
| Item | Technical Specification | XY-2/2l DRILLING MACHINE (Stationary Type) | |
| 1 | Drilling capacity(m) | Φ73 rod | 100M Depth |
| 2 | Φ60 rod | 200M Depth | |
| 3 | Φ50 rod | 380M Depth | |
| 4 | Φ42 rod | 530M Depth | |
| 5 | Spindle speed(r/min) | Forward | 65;114;180;248; |
| 6 | 310;538;849;1172 | ||
| 7 | Reverse | 51;242 | |
| 9 | Max torque (Nm) | 2760 | |
| 10 | Angle reange | 0-90° | |
| 11 | Spindle max pull force(KN) | 60 | |
| 12 | Spindle stroke (mm) | 600 | |
| 13 | Hoist max life capacity with single rope (KN) | 30 | |
| 14 | Spindle inner dia (mm) | 76 | |
| 15 | Oil pump | SCB32/12 Dual Gear Box Oil Pump | |
| 16 | Power unit | Electric motor | Y180L-4,22Kw |
| 17 | |||
| 18 | Diesel engine | 4100K2,30Kw | |
| 19 | |||
| 20 | Inner dia of spindle (mm) | 2150×900×1690 | |
| 21 | Drill body weight (excluding power)(kg) | 950 | |
| Item | Technical Specification | XY-2/2l DRILLING MACHINE (Stationary Type) | |
| 1 | Drilling capacity(m) | Φ73 rod | 100M Depth |
| 2 | Φ60 rod | 200M Depth | |
| 3 | Φ50 rod | 380M Depth | |
| 4 | Φ42 rod | 530M Depth | |
| 5 | Spindle speed(r/min) | Forward | 65;114;180;248; |
| 6 | 310;538;849;1172 | ||
| 7 | Reverse | 51;242 | |
| 9 | Max torque (Nm) | 2760 | |
| 10 | Angle reange | 0-90° | |
| 11 | Spindle max pull force(KN) | 60 | |
| 12 | Spindle stroke (mm) | 600 | |
| 13 | Hoist max life capacity with single rope (KN) | 30 | |
| 14 | Spindle inner dia (mm) | 76 | |
| 15 | Oil pump | SCB32/12 Dual Gear Box Oil Pump | |
| 16 | Power unit | Electric motor | Y180L-4,22Kw |
| 17 | |||
| 18 | Diesel engine | 4100K2,30Kw | |
| 19 | |||
| 20 | Inner dia of spindle (mm) | 2150×900×1690 | |
| 21 | Drill body weight (excluding power)(kg) | 950 | |
Parts&Accessoreis Photoes are for reference only, we advise to prepare in least one years Spare Parts for oversea market,
Parts&Accessoreis Photoes are for reference only, we advise to prepare in least one years Spare Parts for oversea market,
