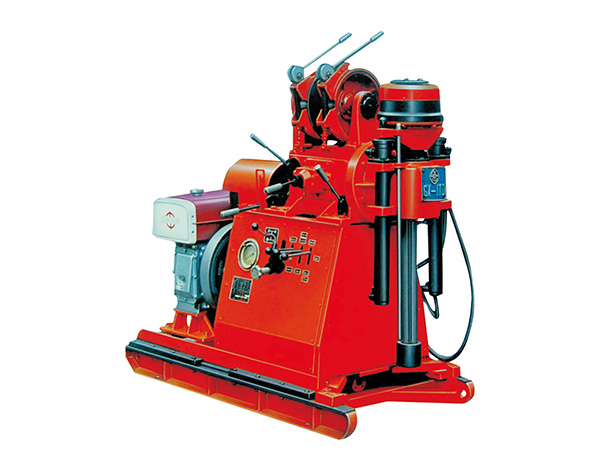

Description of GX-1TD Core Drilling Macine
WRIKU@GX-1TD Core Drill Rig is designed on the basis of WRIKU's GX-1T Core drill. It is a mechanical transmission, hydraulic feed and hydraulic clamping drill light in weight, suitable for engineering geological survey and core drilling.When the drill is used for rotary drilling, it can realize alloy Bitdrilling and diamond bits drilling, equipped with impact drilling tools to facilitate impact drilling.In addition, the drill can be equipped with a hydraulically driven large-hole vibrator to facilitate casing trip, when coordinate with impact drilling, the rig can be realized with impact - vibration with pipe drilling.
While Compared with similar Chinese domestic and foreign drilling RIGS, GX-1TD drilling rig has reasonable speed shift, larger torque and stronger lifting capacity. The drilling machine is small in volume, light in weight, compact in structure, beautiful in shape , and good in disintegration performance. The maximum disintegration parts can be lifted up the mountain by two personal laborforce. The vertical shaft of the drilling rig can open the orifice as a whole under the action of the moving cylinder of the frame, so that the orifice space position increases, which is conducive to orifice operation.
GX - 1TD type drill performed in the design of new mechanical drawing standard and six interchangeability basis, in the manufacture of the important parts adopt the advanced new technology, such as vertical nitriding, hard tooth surface gear machining, gear and spline adopted inside diameter centering rectangle spline, rig of hydraulic components are all produced by WRIKU@CQGE through the product, to ensure that the mechanical transmission system and hydraulic system of drilling rig inner quality is stable and reliable.
The drill also has a matching design of the earth-retriever, marking hammer and a variety of impact drilling tools. In order to facilitate the installation and use of the rig, it is also equipped with a chassis for the installation of the rig and a portable tower with a height of 6.5m, which is convenient for the user to choose.
Description of GX-1TD Core Drilling Macine
WRIKU@GX-1TD Core Drill Rig is designed on the basis of WRIKU's GX-1T Core drill. It is a mechanical transmission, hydraulic feed and hydraulic clamping drill light in weight, suitable for engineering geological survey and core drilling.When the drill is used for rotary drilling, it can realize alloy Bitdrilling and diamond bits drilling, equipped with impact drilling tools to facilitate impact drilling.In addition, the drill can be equipped with a hydraulically driven large-hole vibrator to facilitate casing trip, when coordinate with impact drilling, the rig can be realized with impact - vibration with pipe drilling.
While Compared with similar Chinese domestic and foreign drilling RIGS, GX-1TD drilling rig has reasonable speed shift, larger torque and stronger lifting capacity. The drilling machine is small in volume, light in weight, compact in structure, beautiful in shape , and good in disintegration performance. The maximum disintegration parts can be lifted up the mountain by two personal laborforce. The vertical shaft of the drilling rig can open the orifice as a whole under the action of the moving cylinder of the frame, so that the orifice space position increases, which is conducive to orifice operation.
GX - 1TD type drill performed in the design of new mechanical drawing standard and six interchangeability basis, in the manufacture of the important parts adopt the advanced new technology, such as vertical nitriding, hard tooth surface gear machining, gear and spline adopted inside diameter centering rectangle spline, rig of hydraulic components are all produced by WRIKU@CQGE through the product, to ensure that the mechanical transmission system and hydraulic system of drilling rig inner quality is stable and reliable.
The drill also has a matching design of the earth-retriever, marking hammer and a variety of impact drilling tools. In order to facilitate the installation and use of the rig, it is also equipped with a chassis for the installation of the rig and a portable tower with a height of 6.5m, which is convenient for the user to choose.
Features of GX1TD Drilling Rig
GX-1TD drilling rig is suitable for railway line investigation engineering drilling and bridge, culvert foundation engineering drilling, but also widely used in a variety of industrial and civil building foundation exploration and highway, wharf, power station, oil deport, dam foundation, underground railway and national defense engineering foundation investigation. Because the drill has the characteristics of small volume, light weight and complete functions, it is also very suitable for the basic investigation of urban high-rise buildings, the transformation of old buildings, heavy equipment installation, as well as the governance of landslide, dangerous rock reinforcement when drilling anchor pile hole and engineering blasting, engineering rescue and other engineering holes drilling.
Features of GX1TD Drilling Rig
GX-1TD drilling rig is suitable for railway line investigation engineering drilling and bridge, culvert foundation engineering drilling, but also widely used in a variety of industrial and civil building foundation exploration and highway, wharf, power station, oil deport, dam foundation, underground railway and national defense engineering foundation investigation. Because the drill has the characteristics of small volume, light weight and complete functions, it is also very suitable for the basic investigation of urban high-rise buildings, the transformation of old buildings, heavy equipment installation, as well as the governance of landslide, dangerous rock reinforcement when drilling anchor pile hole and engineering blasting, engineering rescue and other engineering holes drilling.
1. End hole diameter (mm) : 150; 130; 110; 91; 75
2. Drilling depth (m): 30; 50; 70; 100; 150
3. Borehole Angle: 0-90°
4. Rotation speed of vertical shaft (r/min): 90; 191; 360; 600
5. Maximum torque (NM): 1000
6. Maximum vertical shaft lifting force (KN): 27
7. Vertical shaft stroke (mm): 450
8. Maximum lifting force of winding single rope (kN): 14.7
9. Oil pump: CB32 gear oil pump
10. Power: Diesel engine: S1100A 2200R /min 11KW
11. Motor: Y160M-4 1460r/min 11kW
12. Rig weight (excluding power machine)(Kg): 500
13. Dimensions (length × width × height) (mm): 1560×620×1205
1. End hole diameter (mm) : 150; 130; 110; 91; 75
2. Drilling depth (m): 30; 50; 70; 100; 150
3. Borehole Angle: 0-90°
4. Rotation speed of vertical shaft (r/min): 90; 191; 360; 600
5. Maximum torque (NM): 1000
6. Maximum vertical shaft lifting force (KN): 27
7. Vertical shaft stroke (mm): 450
8. Maximum lifting force of winding single rope (kN): 14.7
9. Oil pump: CB32 gear oil pump
10. Power: Diesel engine: S1100A 2200R /min 11KW
11. Motor: Y160M-4 1460r/min 11kW
12. Rig weight (excluding power machine)(Kg): 500
13. Dimensions (length × width × height) (mm): 1560×620×1205
