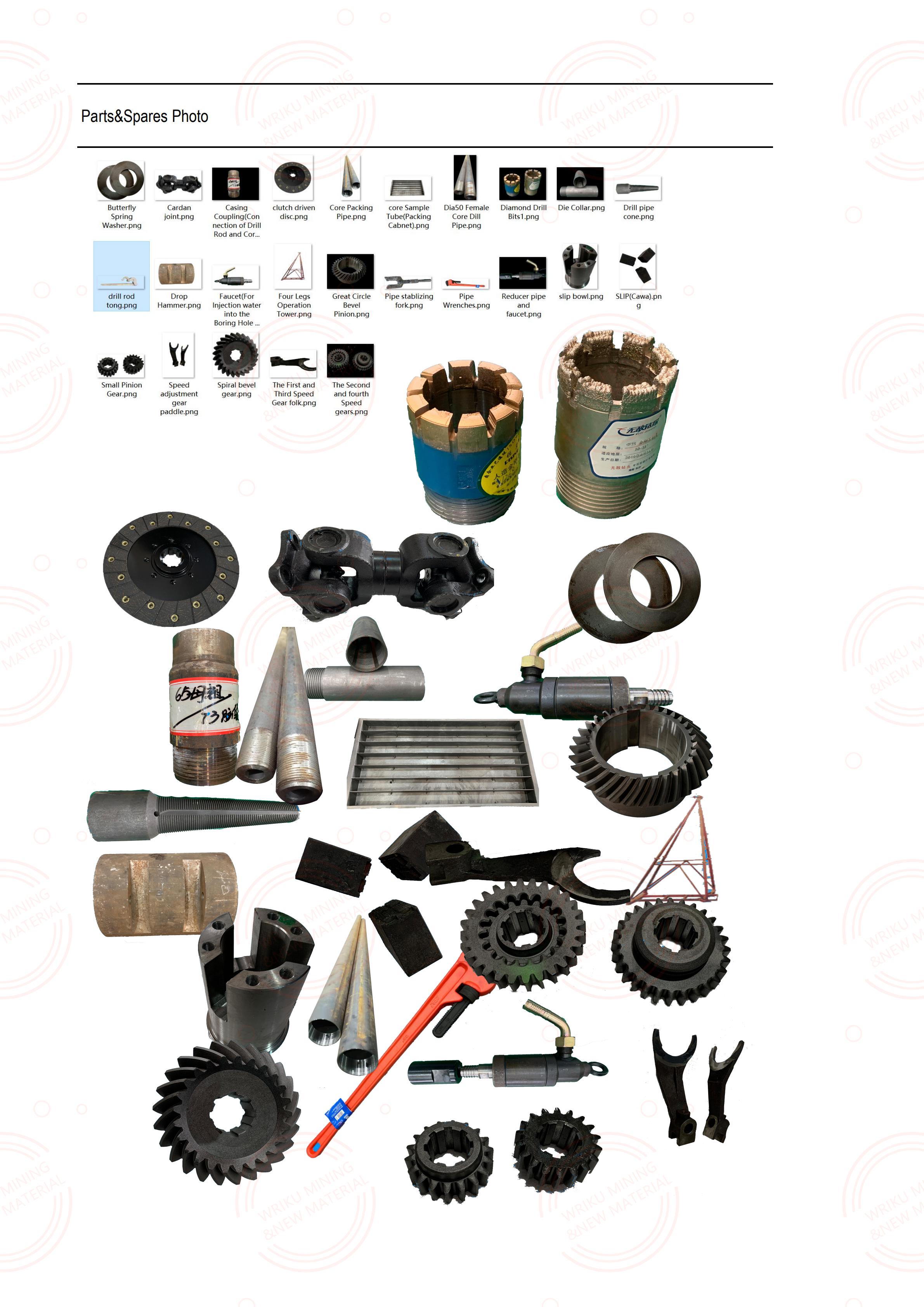

Decription of XY-100 Core Drill Rig

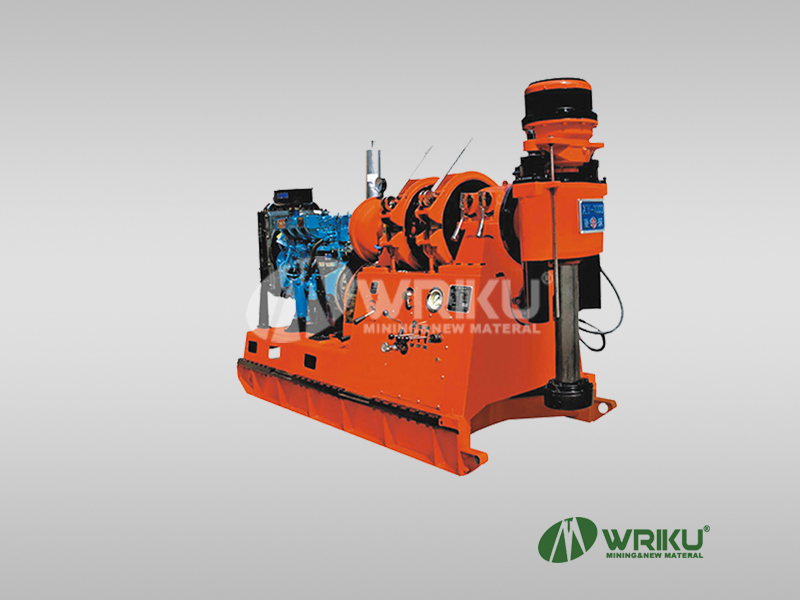

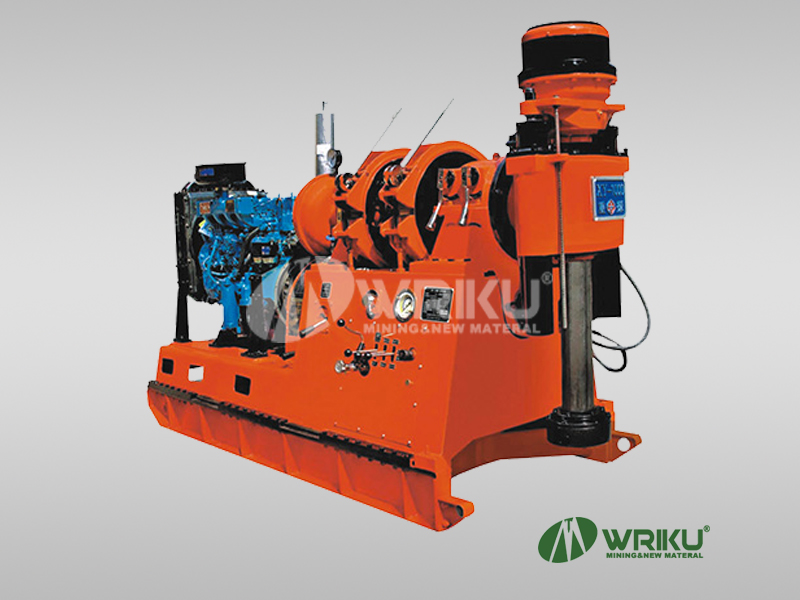

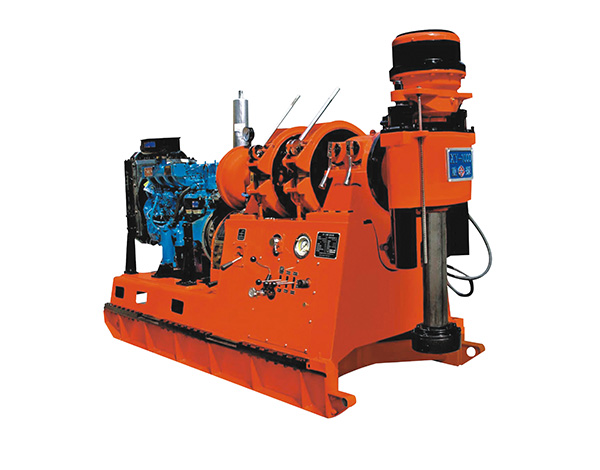

WRIKU@CQGE XY-1000 type core drill is a new product developed and designed WRIKU@CGGE on the basis of the current domestic kilometer drill series. It is suitable for diamond and alloy core drilling of large and small caliber, as well as for engineering geological exploration, hydrology, water well, large caliber engineering construction hole drilling. The drill has the characteristics of reasonable structure, large installed power, wide performance, light weight, strong versatility, and excellent product quality, thoughtful after-sales service, widely welcomed by such projects on geological exploration, hydrological well drilling, hydropower engineering, construction engineering and other construction.
Decription of XY-100 Core Drill Rig
WRIKU@CQGE XY-1000 type core drill is a new product developed and designed WRIKU@CGGE on the basis of the current domestic kilometer drill series. It is suitable for diamond and alloy core drilling of large and small caliber, as well as for engineering geological exploration, hydrology, water well, large caliber engineering construction hole drilling. The drill has the characteristics of reasonable structure, large installed power, wide performance, light weight, strong versatility, and excellent product quality, thoughtful after-sales service, widely welcomed by such projects on geological exploration, hydrological well drilling, hydropower engineering, construction engineering and other construction.
Features
1. The drill has many (up to 8 gears) speed series and reasonable speed range. When the speed of the power machine is 1500r/min, the maximum speed of the drill is 1030r /min and the minimum speed is 87r /min, and the low speed torque is large. It is not only suitable for drilling with alloy and diamond core, but also suitable for engineering geological survey, hydrological well drilling and foundation pile construction.
2. The rig has a two-way reverse speed (72 r/min, 220 r/min) for easy handling of in-hole accidents.
3. The installed power of the drill is large (electric motor is 37KW, diesel engine is 42KW), and the drilling capacity is large. The rated drilling depth of the coring drill pipe with a diameter of 71mm can reach 1000m.
4. The vertical shaft of the drilling rig has large diameter (up to 96 mm in diameter), double cylinder hydraulic feed, long stroke, and strong adaptability to drilling technology. It is especially suitable for coring drilling with large diameter drill pipe, which is conducive to improving drilling efficiency and reducing accidents in the hole.
5. The normally closed hydraulic upper chuck of drilling rig has the advantages of reasonable design, large clamping force, stable clamping and high reliability.
Features
1. The drill has many (up to 8 gears) speed series and reasonable speed range. When the speed of the power machine is 1500r/min, the maximum speed of the drill is 1030r /min and the minimum speed is 87r /min, and the low speed torque is large. It is not only suitable for drilling with alloy and diamond core, but also suitable for engineering geological survey, hydrological well drilling and foundation pile construction.
2. The rig has a two-way reverse speed (72 r/min, 220 r/min) for easy handling of in-hole accidents.
3. The installed power of the drill is large (electric motor is 37KW, diesel engine is 42KW), and the drilling capacity is large. The rated drilling depth of the coring drill pipe with a diameter of 71mm can reach 1000m.
4. The vertical shaft of the drilling rig has large diameter (up to 96 mm in diameter), double cylinder hydraulic feed, long stroke, and strong adaptability to drilling technology. It is especially suitable for coring drilling with large diameter drill pipe, which is conducive to improving drilling efficiency and reducing accidents in the hole.
5. The normally closed hydraulic upper chuck of drilling rig has the advantages of reasonable design, large clamping force, stable clamping and high reliability.
Main technical parameters
1. Drilling depth: 1000m
2. Vertical shaft speed (r/min) : positive 87; 160; 230; 270; 334; 500; 710; 1030 reverse rotation: 72; 220
3. Maximum output torque of vertical shaft: 4050
4. Vertical shaft stroke: 600
5. Vertical shaft through hole diameter: 96
6. Maximum lifting gravity/maximum loading pressure of vertical shaft: 10000/7500
7. Maximum lifting force of single rope of winch (KG) : 4500
8. Hoisting speed of the third layer of single rope of the hoist (m/s): 0.69; 1.27; 1.81; 2.64
9. Hoist wire rope diameter and volume (m) : 17.5 (170 kg/cm2) steel wire rope, let Ф 17.5 110 meters (170 kg/cm2) : 110 m
10. 18.5 (170 kg/cm2) steel wire rope, let Ф 18.5 90 meters (170 kg/cm2) wire rope capacity of 90 m
11. Working speed of water brake (r/min): 700-1800
12. Water brake single rope balance speed/single rope balance load: 3-8m/s/45kN
13 hydraulic system: (32+12)L/min double gear pump, pressure: 80kg/cm2
14. Rig standard active drill pipe: the six-party active drill pipe Ф 89 x 79 x 6000 mm
15. Motor: Y225-4 37KW 1480r/min
16. Diesel engine: R4105G54 42KW 1500r/min
17. Rig weight (excluding power machine)(kg): 2180
18. Maximum weight of decomposed parts (kg): 320
19. External dimension of drilling machine (length × width × height)(mm): 2920×1100×1840
Main technical parameters
1. Drilling depth: 1000m
2. Vertical shaft speed (r/min) : positive 87; 160; 230; 270; 334; 500; 710; 1030 reverse rotation: 72; 220
3. Maximum output torque of vertical shaft: 4050
4. Vertical shaft stroke: 600
5. Vertical shaft through hole diameter: 96
6. Maximum lifting gravity/maximum loading pressure of vertical shaft: 10000/7500
7. Maximum lifting force of single rope of winch (KG) : 4500
8. Hoisting speed of the third layer of single rope of the hoist (m/s): 0.69; 1.27; 1.81; 2.64
9. Hoist wire rope diameter and volume (m) : 17.5 (170 kg/cm2) steel wire rope, let Ф 17.5 110 meters (170 kg/cm2) : 110 m
10. 18.5 (170 kg/cm2) steel wire rope, let Ф 18.5 90 meters (170 kg/cm2) wire rope capacity of 90 m
11. Working speed of water brake (r/min): 700-1800
12. Water brake single rope balance speed/single rope balance load: 3-8m/s/45kN
13 hydraulic system: (32+12)L/min double gear pump, pressure: 80kg/cm2
14. Rig standard active drill pipe: the six-party active drill pipe Ф 89 x 79 x 6000 mm
15. Motor: Y225-4 37KW 1480r/min
16. Diesel engine: R4105G54 42KW 1500r/min
17. Rig weight (excluding power machine)(kg): 2180
18. Maximum weight of decomposed parts (kg): 320
19. External dimension of drilling machine (length × width × height)(mm): 2920×1100×1840
