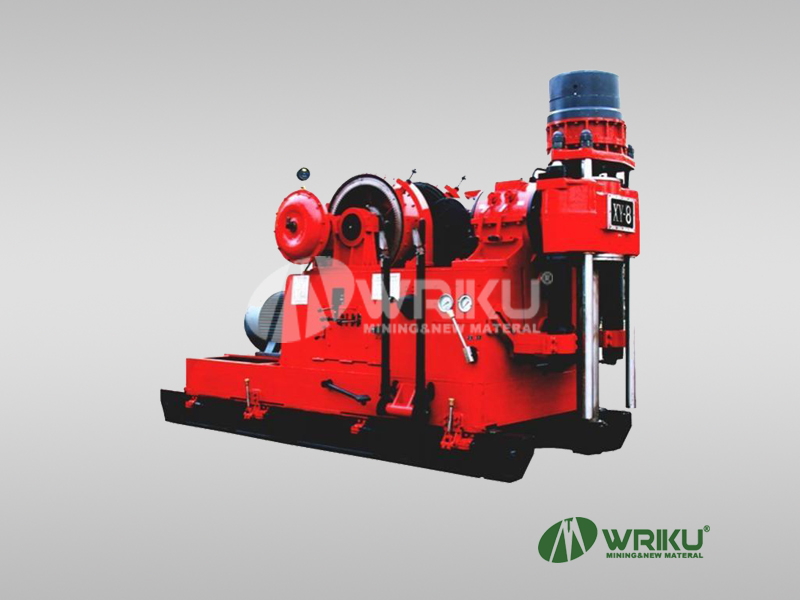

Exploration core driling rig XY-8

WRIKU@Exploration core drilling rig, type XY-8 is a core drill rig with spindle diameter 118mm and drilling depth 1000-3000m. It is mainly used in solid mineral exploration, mining of shallow layer petroleum and natural gas, geothermal exploration, mine tunnel ventilation, drainage and construction of large hole foundation piles. In addition, it is applicable in explorations such as hydrology, exploration of oil and gas field and engineering drilling projects. Small diameter drilling with diamond drilling bit as well as large diameter drilling is available, either drilling vertically or obliquely.
Availability:

Type XY-8


WRIKU@Exploration core drilling rig, type XY-8 is a core drill rig with spindle diameter 118mm and drilling depth 1000-3000m. It is mainly used in solid mineral exploration, mining of shallow layer petroleum and natural gas, geothermal exploration, mine tunnel ventilation, drainage and construction of large hole foundation piles. In addition, it is applicable in explorations such as hydrology, exploration of oil and gas field and engineering drilling projects. Small diameter drilling with diamond drilling bit as well as large diameter drilling is available, either drilling vertically or obliquely.


drilling rig facrtory

Drilling depth

1000-3000m

Diameter of drilling pipe

φ50.5 φ60 φ71 φ73 φ89 φ114mm

Drilling angle

90°-80°

Vertical rotational speed

Clockwise rotation 79, 137, 213, 223, 366, 384, 604, 1024r/min
Counter clockwise rotation 51, 144r/min

Feed oil tank maximum pulling capacity

300KN

Feed oil tank feeding capacity

142

Feed oil tank spindle stroke

1000mm

Maximum lifting force of single rope winch

130KN

Winch lifting speed

0.57-7.58m/min

Diameter of steel wire

φ21.5nn

Rope capacity

160n

Feeding stroke

690nn

Weight of main body

7.8t

External dimensions (L×W×H)

4049×1754×2593mm

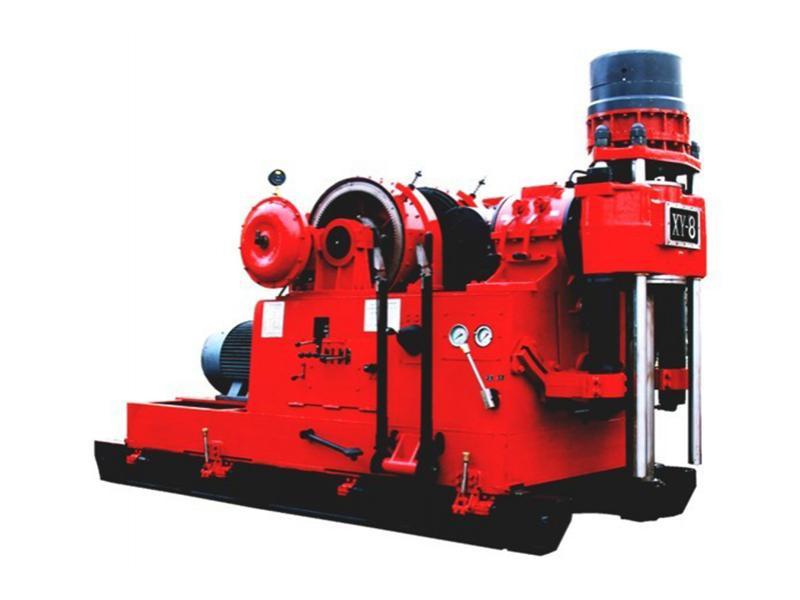

Type XY-8


  • Large power, large vertical torque, strong clamping force of the chuck.

  • Large vertical spindle diameter, hydraulically fed on dual cylinder, long stroke.

  • Horizontal design for the winch, smooth hoisting and has large uplift force.
