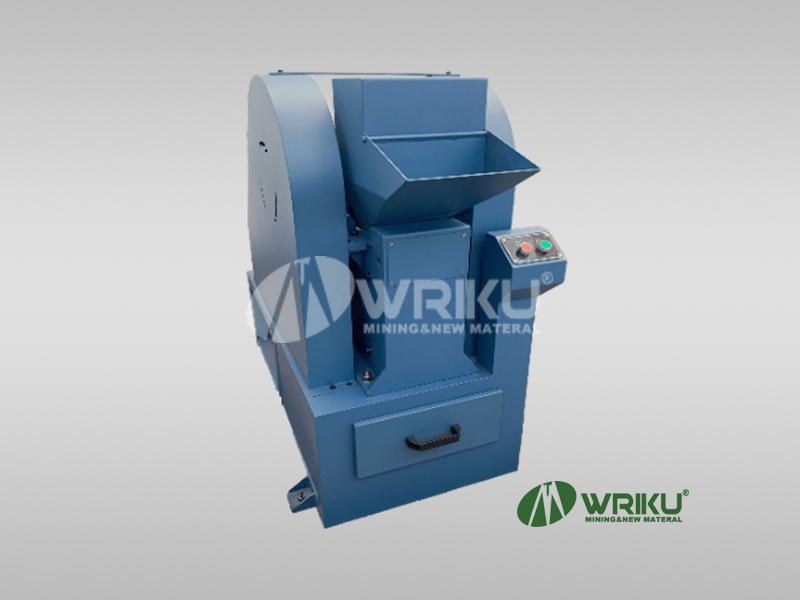

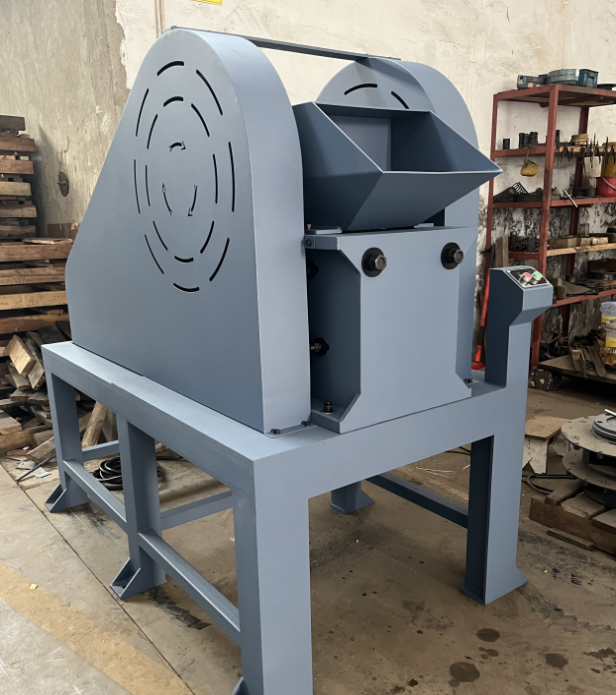

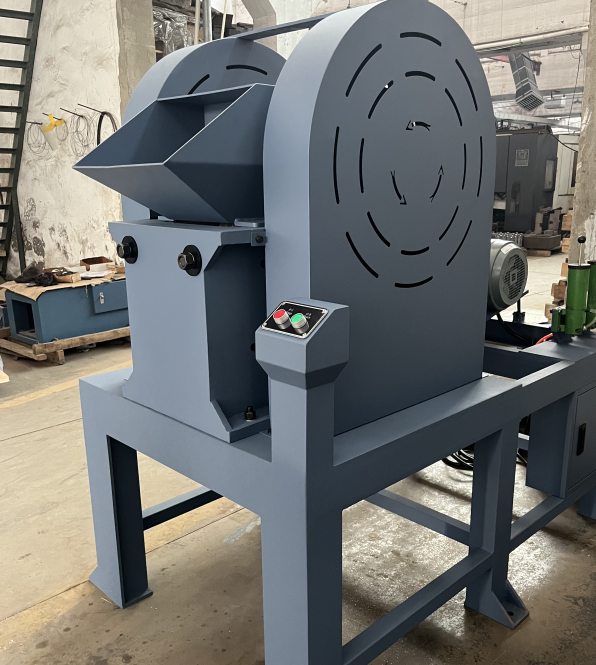

WK-A SERIES LAB JAW CRUSHER
WK-A Series Environment Friendly Lab Jaw Crusher
A.Introduction
WRIKU WK-A SERIES Environment-Friendly Laboratory Jaw Crusher is designed and manufactured according to the advantages of similar products with leadding quality world wide, it uses double flywheel to generate powerful drive force .It is designed with one key starter and motor protection device,
A. Features&Characteristic
features with 1.reasonable and good-looking structure, 2.uniform discharging cubic size through size- adjusting mechanism with scale table, 3.equipped with φ78 dust removal interface, the three merits assure the machine works with easy operation, excellent sealing(dust proof) and extremely low working noise, WRIKU grantee the WK-A series Jaw Crusher with 5 years trouble free , which has mostly minimize clients cost on spare and maintenance.
B. Application
WRIKU WK-A SERIES Environment-Friendly Laboratory Jaw Crusher is characterized with balanced operation, high crushing efficiency and strong rigidity in structure . WRIKU WK-A SERIES Environment-Friendly Laboratory Jaw Crusher is a new environment-friendly crushing equipment, which can be used for coarse and medium crushing of various medium hardness ores and other materials in industrial institutes such as geology, metallurgy, steel mills, mining, energy, building materials, chemical industry, coal, etc., as well as universities, research institutes and laboratories.
| Model | WK-A 100×60 | WK-A100×100 | WK-A 125×100 | WK-A 100×150 | WK-A125×150 | WK-A150×250 |
| Material of jaw plate | High manganese steel | High manganese steel | High manganese steel | High manganese steel | High manganese steel | High manganese steel |
| Feed size(mm) | ≤50 | ≤80 | ≤80 | ≤80 | ≤100 | ≤125 |
| Discharge size(mm) | 5-15(Adjustable) | 6-25(Adjustable) | 8-35(Adjustable) | 5-25(Adjustable) | <4 (90%) | 10-40 |
| Production capacity(kg/h) | 45-550 | 60-850 | 300-2000 | 480-1800 | 500-3000 | 1000-3000 |
| Speed of vertical shaft(r/min) | 600 | 600 | 600 | 320 | 285 | 225 |
| Motor power(kw) | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Voltage | 3P380V/50Hz | 3P380V/50Hz | 3P380V/50Hz | 3P380V/50Hz | 3P380V/50Hz | 3P380V/50Hz |
| Dimension(mm) | 700×570×1250 | 700×570×1250 | 700×570×1250 | 1120×680×1000 | 1150×680×1100 | 1900×1100×1350 |
| Weight of equipment(kg) | 250 | 255 | 260 | 360 | 460 | 1300 |
Note: WK-A 150x250 Has both horizontal and Vertical Type.
